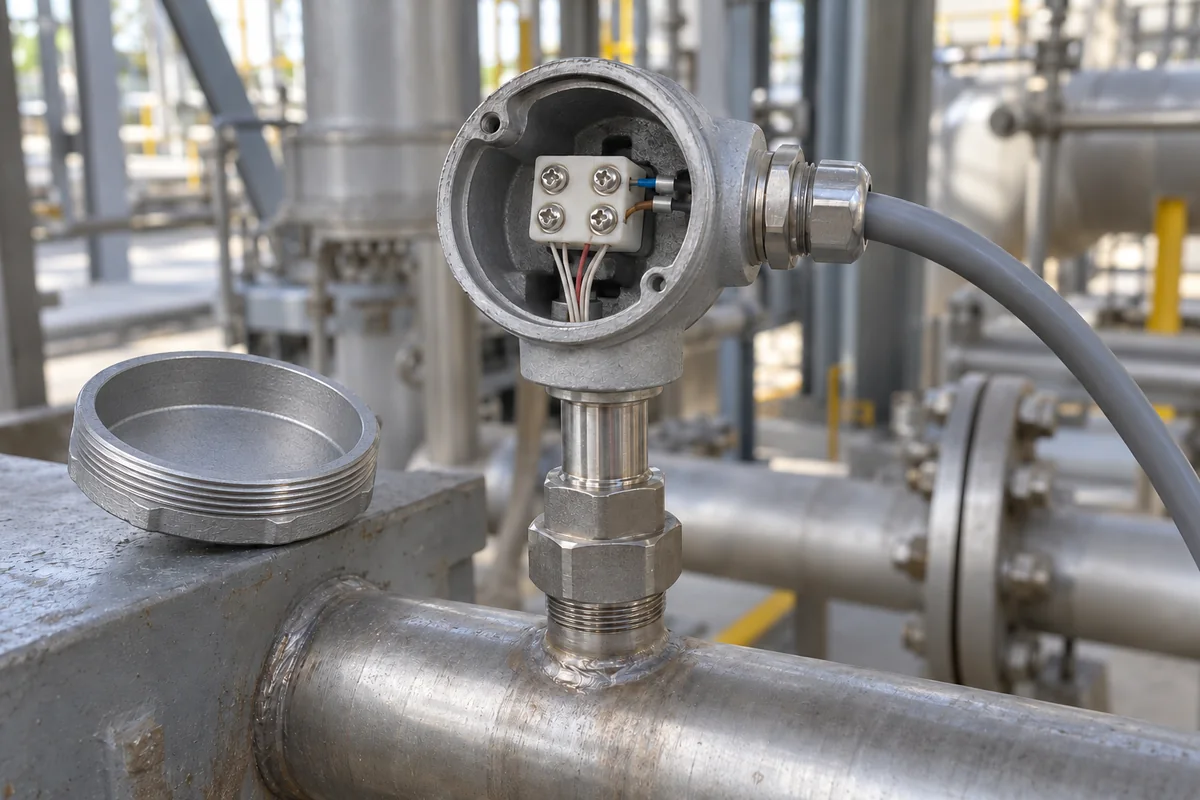

Terminal Box/Connection Head

Based on aggregated insights from multiple verified factory profiles within the CNFX directory, the standard Terminal Box/Connection Head used in the Electrical Equipment Manufacturing sector typically supports operational capacities ranging from standard industrial configurations to heavy-duty production requirements.

Technical Definition & Core Assembly

A canonical Terminal Box/Connection Head is characterized by the integration of Terminal Block and Enclosure Cover. In industrial production environments, manufacturers listed on CNFX commonly emphasize Thermoplastic (e.g., polycarbonate, ABS) construction to support stable, high-cycle operation across diverse manufacturing scenarios.

Electrical connection interface for heating jacket wiring

View Full Specifications Explore Manufacturing Sources

Product Specifications

Technical details and manufacturing context for Terminal Box/Connection Head

Definition
A protective enclosure housing electrical terminals and connections that serves as the interface between the heating element of a heating jacket and external power or control systems, ensuring secure electrical connections and environmental protection.
Working Principle
Provides a sealed or protected housing for electrical terminals where power cables from the heating element are connected to external wiring, typically featuring screw terminals, quick-connect terminals, or plug connectors to facilitate installation and maintenance while preventing electrical hazards.
Common Materials
Thermoplastic (e.g., polycarbonate, ABS), Stainless steel, Aluminum alloy
Technical Parameters
  • Dimensions (length × width × height) of the terminal box enclosure (mm) Standard Spec
Components / BOM
  • Terminal Block
    Provides screw or spring-clamp terminals for secure wire connections
    Material: Thermoplastic with brass or copper alloy contacts
  • Enclosure Cover
    Protects internal components and provides environmental sealing
    Material: Thermoplastic or metal with gasket
  • Cable Gland
    Secures and seals incoming/outgoing cables
    Material: Nylon, brass, or stainless steel
  • Mounting Bracket
    Allows secure attachment to heating jacket or mounting surface
    Material: Stainless steel or galvanized steel
Engineering Reasoning
24-48 VDC, 0.5-10 A continuous current, -40°C to +85°C ambient temperature
Contact resistance exceeding 50 mΩ, insulation breakdown at 500 VAC, terminal temperature exceeding 105°C
Design Rationale: Electromigration at current densities > 10⁶ A/cm² causing contact degradation, thermal expansion mismatch (CTE difference > 10 ppm/°C) between copper terminals and polymer housing, dielectric breakdown at electric field strengths > 15 kV/mm
Risk Mitigation (FMEA)
Trigger Galvanic corrosion between dissimilar metals (copper terminal and aluminum wire) in presence of chloride ions > 10 ppm
Mode: Contact resistance increase to 100 mΩ causing voltage drop > 2.4V at 10A
Strategy: Bi-metallic transition inserts with nickel plating, hermetic sealing with IP68 rating, corrosion-inhibiting compound application
Trigger Thermal cycling stress (ΔT > 60°C) at 5 cycles/hour causing fatigue in terminal crimp connections
Mode: Wire pull-out force reduction below 50 N, intermittent electrical contact
Strategy: Spring-loaded terminal design with 0.2 mm compliance, strain relief clamps with 15:1 bend radius, vibration-resistant locking mechanisms

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for Terminal Box/Connection Head.

thermoplastic terminal box for heating jackets stainless steel electrical connection head aluminum alloy terminal block enclosure heating jacket wiring terminal box industrial electrical connection interface

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Heating Jacket
View system integration details

Industrial Ecosystem & Supply Chain DNA

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: Atmospheric (non-pressurized enclosure)
other spec: IP66/IP67 ingress protection, 600V max voltage rating, 20A max current per terminal
temperature: -40°C to +120°C (operational), up to +150°C (peak)
Media Compatibility
✓ Mineral-insulated heating cables ✓ Silicone rubber heating jackets ✓ PTFE-insulated thermocouple wires
Unsuitable: Submerged or high-pressure washdown environments requiring IP69K rating
Sizing Data Required
  • Number of heating circuits/conductors
  • Wire gauge range (AWG/mm²)
  • Required ingress protection rating (IP code)

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Corrosion
Cause: Exposure to moisture, chemicals, or salt leading to material degradation and electrical faults
Loose Connections
Cause: Vibration, thermal cycling, or improper installation causing increased resistance, overheating, and potential arcing
Maintenance Indicators
  • Visible corrosion, discoloration, or moisture inside the enclosure
  • Audible buzzing, crackling, or excessive heat felt on the exterior
Engineering Tips
  • Apply appropriate sealants and use corrosion-resistant materials (e.g., stainless steel, coated components) in harsh environments
  • Implement regular torque checks and use vibration-resistant hardware (e.g., lock washers, thread-locking compounds) to maintain connection integrity

Compliance & Manufacturing Standards

Reference Standards
ISO 12944-5:2019 (Corrosion protection) ANSI/UL 50E:2015 (Enclosures for electrical equipment) DIN EN 60529:2014 (IP code for ingress protection)
Manufacturing Precision
  • Thread pitch tolerance: +/-0.05mm
  • Sealing surface flatness: 0.15mm
Quality Inspection
  • IP rating water ingress test
  • Dielectric withstand voltage test

Factories Producing Terminal Box/Connection Head

Verified manufacturers with capability to produce this product in China

Add your factory

✓ 93% Supplier Capability Match Found

T Technical Director from Germany Feb 07, 2026
★★★★★
"Great transparency on the Terminal Box/Connection Head components. Essential for our Electrical Equipment Manufacturing supply chain."
Technical Specifications Verified
P Project Engineer from Brazil Feb 04, 2026
★★★★☆
"The Terminal Box/Connection Head we sourced perfectly fits our Electrical Equipment Manufacturing production line requirements. (Delivery took slightly longer than expected, but technical support was excellent.)"
Technical Specifications Verified
S Sourcing Manager from Canada Feb 01, 2026
★★★★★
"Found 12+ suppliers for Terminal Box/Connection Head on CNFX, but this spec remains the most cost-effective."
Technical Specifications Verified
Verification Protocol

“Feedback is collected from verified sourcing managers during RFQ (Request for Quote) and factory evaluation processes on CNFX. These reports represent historical performance data and technical audit summaries from our B2B manufacturing network.”

16 sourcing managers are analyzing this specification now. Last inquiry for Terminal Box/Connection Head from Germany (27m ago).

Supply Chain Compatible Machinery & Devices

Circuit Breaker Trip Unit

Protective control module for electrical circuit breakers

Explore Specs →
Circuit Breaker Arc Chute

Electrical component that extinguishes arcs in circuit breakers

Explore Specs →
Medium Voltage Switchgear Assembly Line

Automated production system for assembling medium voltage electrical switchgear.

Explore Specs →
Motor Terminal Block

Electrical connection interface for motor windings

Explore Specs →

Frequently Asked Questions

What materials are used in this terminal box for heating jacket applications?

This terminal box is constructed from high-quality thermoplastic (such as polycarbonate or ABS), stainless steel components, and aluminum alloy parts to ensure durability, corrosion resistance, and reliable performance in industrial electrical environments.

What components are included in the terminal box BOM?

The bill of materials includes a terminal block for secure wiring connections, an enclosure cover for protection, cable glands for entry sealing, and a mounting bracket for easy installation in electrical equipment setups.

How does this connection head interface with heating jacket wiring?

This terminal box serves as a dedicated electrical connection interface specifically designed for heating jacket wiring, providing organized, protected termination points that ensure safe and efficient power distribution to heating elements in industrial applications.

Can I contact factories directly on CNFX?

CNFX is an open directory, not a transaction platform. Each factory profile provides direct contact information and production details to help you initiate direct inquiries with Chinese suppliers.

Data Specifications verified by CNFX Industrial Index (v2.6.03) for Electrical Equipment Manufacturing sector.
