Manhole/Access Port

This page explains how Manhole/Access Port is classified within Fabricated Metal Product Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

A sealed opening in a collection tank that allows personnel access for inspection, maintenance, and cleaning of the interior.

View Full Specifications Explore Manufacturing Sources

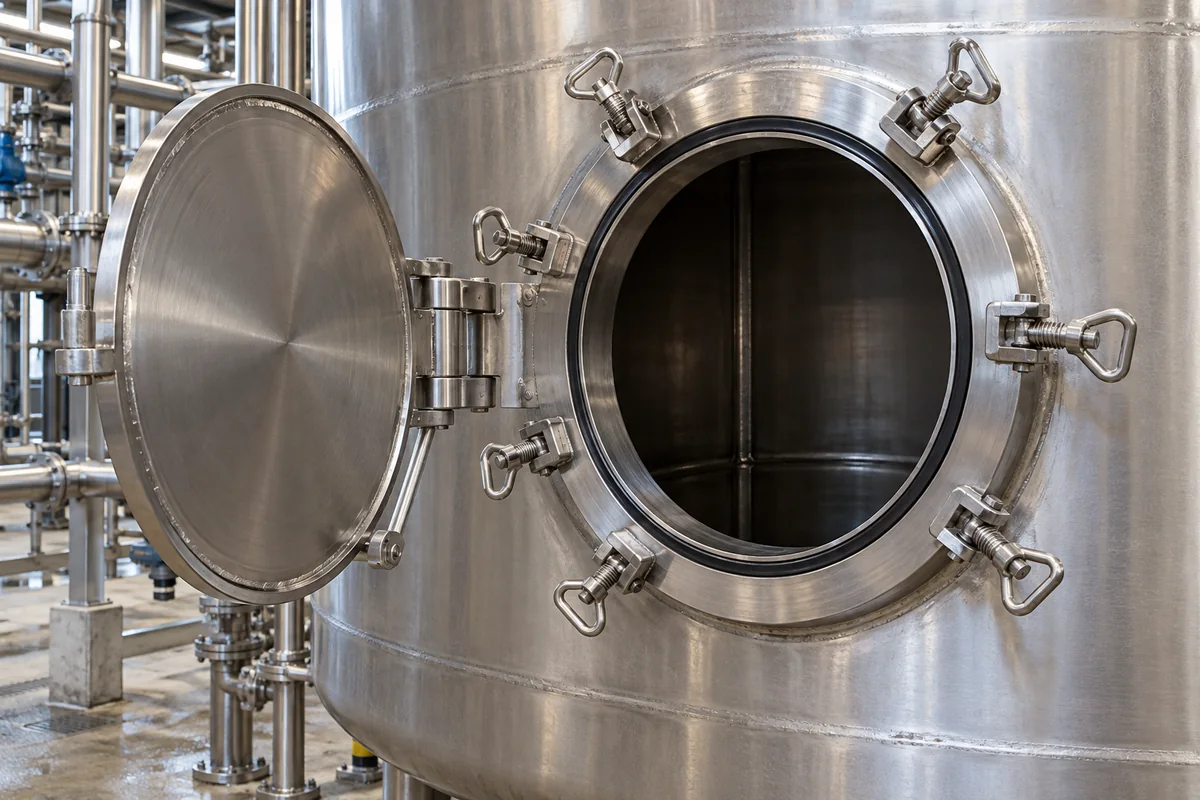

Manhole/Access Port in a manufacturing environment
Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Manhole/Access Port

Definition
The manhole/access port is a critical safety and maintenance component of collection tanks, providing a secure, sealable entry point for operators to perform internal inspections, remove debris, conduct repairs, and ensure proper tank function. It typically includes a removable cover with gaskets or seals to prevent leaks and maintain containment integrity. This component is used in fabricated metal product manufacturing, specifically for tanks that require periodic human entry. The access port is designed to be opened when the tank is safely depressurized and cleaned, allowing human entry. When closed, it forms a pressure-tight or liquid-tight seal using bolts, clamps, or latches with gaskets, preventing escape of contents and maintaining the tank's operational integrity. Materials commonly specified include carbon steel, stainless steel, and fiberglass reinforced plastic (FRP). Key parameters to verify for a specific application include nominal diameter (typically 500–800 mm), operating pressure (1.0–1.6 MPa), operating temperature (-20–200 °C), leakage rate (0–0.1 cm³/min), material grade (e.g. 304–316L per ASTM A240), surface finish (0.4–1.6 µm Ra per ISO 4287), seal material (EPDM–PTFE per ASTM D1418), weight (15–60 kg), and ingress protection (IP54–IP65 per IEC 60529). These values are reference ranges and must be confirmed with the legal manufacturer or supplier for the actual model and application. Always verify that the selected manhole/access port meets the required standards and is suitable for the specific tank design, pressure, temperature, and media. Regular inspection and maintenance of the access port are essential to ensure long-term sealing integrity and safe operation.
Working Principle
The access port is opened only when the tank is safely depressurized and cleaned, allowing personnel entry. When closed, the cover is secured with bolts, clamps, or latches, compressing gaskets or seals to create a pressure-tight or liquid-tight closure. This prevents leakage of tank contents and maintains the tank's operational integrity. The design must accommodate the required operating pressure and temperature, and the seal material must be compatible with the tank's contents.
Common Materials
Carbon Steel, Stainless Steel, Fiberglass Reinforced Plastic (FRP)
Technical Parameters
ParameterTypical rangeNotes & selection driver
Nominal Diameter500–800 mmTypical sizes for personnel access
Operating Temperature-20–200 °CSealing integrity above 200°C requires special gaskets
Leakage Rate0–0.1 cm³/minClass A per ISO 5208 Measured at the stated test pressure
Material Grade304–316L ASTM316L for corrosive mediaASTM A240
Surface Finish0.4–1.6 µm RaHygienic applications require <0.8 µmISO 4287
Seal MaterialEPDM–PTFE ASTM D1418PTFE for chemical resistanceASTM D1418
Weight15–60 kgDepends on size and pressure rating
Ingress ProtectionIP54–IP65 IPIP65 for outdoor installationIEC 60529

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM
  • Cover Plate Part
    Seals the opening when closed; provides structural integrity
    Material: Steel or composite
  • Gasket/Seal Part
    Creates a leak-proof seal between cover and tank flange
    Material: Rubber, silicone, or PTFE
  • Bolts/Clamps Part
    Secures the cover in place under pressure
    Material: Stainless steel or coated carbon steel
  • Hinge (if applicable) Optional Part
    Allows the cover to swing open while remaining attached
    Material: Steel with stainless steel pins

Application & selection

Application Fit & Sizing Matrix

Operational Limits
pressure: 0 to 1.5 bar (gauge)
other spec: Slurry concentration up to 40% solids by weight
temperature: -20°C to 80°C
Media Compatibility
✓ Municipal wastewater ✓ Industrial process liquids ✓ Potable water storage
Unsuitable: Highly corrosive chemical environments (e.g., concentrated acids, strong oxidizers)
Sizing Data Required
  • Tank diameter/access requirement
  • Required personnel entry size (minimum 600mm diameter)
  • Installation depth/loading requirements

Risk, maintenance & compliance

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Corrosion-induced structural weakening
Cause: Exposure to corrosive chemicals, moisture, or atmospheric conditions leading to material degradation and loss of structural integrity.
Gasket/seal failure leading to leaks
Cause: Improper installation, material incompatibility, thermal cycling, or mechanical damage compromising the seal's ability to maintain containment.
Maintenance Indicators
  • Visible corrosion, pitting, or material loss on the manhole surface or fasteners
  • Audible hissing or dripping sounds, or visible fluid seepage around the seal/gasket area
Engineering Tips
  • Implement regular non-destructive testing (e.g., ultrasonic thickness testing) to monitor material degradation and schedule preventive replacements before failure occurs.
  • Use proper torque procedures and sequence when installing fasteners, and replace gaskets with compatible materials during each maintenance cycle to ensure reliable sealing.

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
ANSI/AWWA C207-16 - Steel pipe flanges for waterworks service DIN EN 124 - Gully tops and manhole tops for vehicular and pedestrian areas

Quoted from the published standard.

Manufacturing Precision
  • Bore diameter: +/- 0.5 mm
  • Surface flatness: 0.2 mm across entire sealing surface
Quality Inspection
  • Dye Penetrant Test for surface defects
  • Load testing to verify structural integrity under rated capacity
Technical documentation
Request current drawings, revision history, and a signed specification sheet.
Manufacturing capability
Verify equipment lists, process limits, capacity, and representative production evidence.
Inspection readiness
Confirm test methods, calibrated equipment, sampling plans, and traceable reports.
Supplier transparency
Check the legal entity, factory address, ownership, certifications, and direct contacts.

Compare the published product scope and source details, then include your specifications and quantity in an enquiry.

Manufacturers of Manhole/Access Port

Manufacturer profiles associated with Manhole/Access Port.

Sourcing Manhole/Access Port from China?
Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.
Request manufacturers We manufacture this

Explore company information and manufacturing capabilities, then discuss the scope of your project with a relevant supplier.

Buyer enquiry

Request manufacturing insight for Manhole/Access Port

Ask for use case, specification boundaries, supplier type, and RFQ preparation information for this product.

Where it goes
Straight to the CNFX editorial desk, and to the manufacturer if this product is linked to a claimed profile. Nothing is broadcast to a supplier list.
Your details stay here
We do not sell or rent enquiry data, and we do not add you to a mailing list. Used only to answer this request.
No commission, no middleman
CNFX is a directory. We take no cut of any order and never negotiate on a supplier's behalf.
What to include
Share your product specifications, quantity, destination and target delivery date.

Your business information is used only to process this request.

Thank you! Your message has been sent. We'll respond within 1–3 business days.
Sorry, we couldn't send your message. Please try again, or email us at [email protected].

Frequently Asked Questions

What materials are commonly used for manhole/access ports?

Common materials include carbon steel, stainless steel, and fiberglass reinforced plastic (FRP). The choice depends on the application, media, and environmental conditions. Verify material grade with the manufacturer.

What is the typical size range for personnel access?

Typical nominal diameters range from 500 to 800 mm, but this must be confirmed based on the tank design and access requirements. Always check the manufacturer's specifications.

How is the sealing integrity ensured?

Sealing is achieved through gaskets or seals compressed by bolts, clamps, or latches. The leakage rate should be verified, and the seal material must be compatible with the tank contents and operating conditions.

What standards apply to manhole/access ports?

Relevant standards include, ASTM A240 for material grades, ISO 4287 for surface finish, ASTM D1418 for seal materials, and IEC 60529 for ingress protection. Always confirm compliance with the manufacturer.
