Graphical User Interface Module

This page explains how Graphical User Interface Module is classified within Computer, Electronic and Optical Product Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

A software component providing visual controls and displays for user interaction within calibration systems.

View Full Specifications Explore Manufacturing Sources

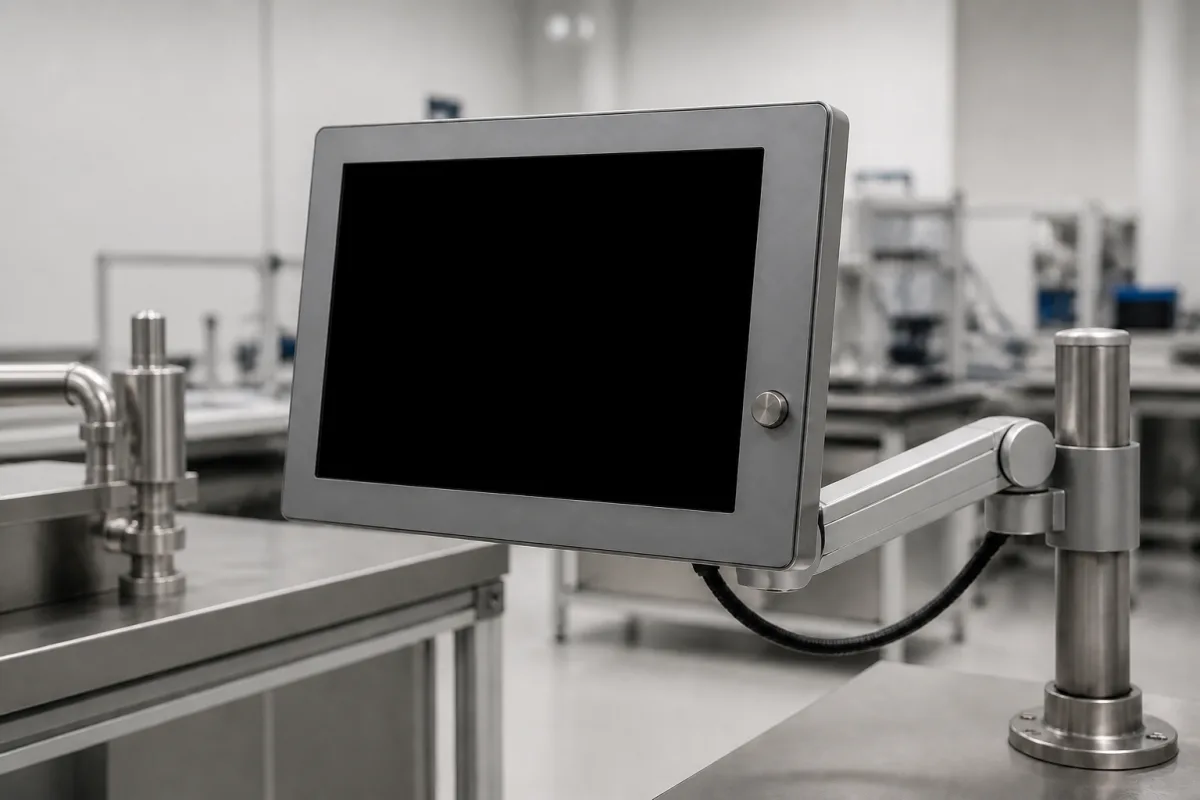

Graphical User Interface Module in a manufacturing environment
Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Graphical User Interface Module

Definition
The Graphical User Interface Module is a specialized software component within the Calibration Software Interface that enables users to configure, monitor, and control calibration processes through visual elements such as buttons, menus, graphs, and data displays. It serves as the primary human-machine interface for calibration technicians and engineers. The module is designed for integration into calibration systems used in computer, electronic, and optical product manufacturing. It supports a range of display sizes from 7 to 15 inches, with resolutions from 1024×600 to 1920×1080 pixels. Touch types can be resistive or capacitive, with capacitive recommended for glove operation. The module operates in temperatures from -20 to 60 °C and can be stored from -40 to 85 °C, with humidity from 10 to 90% RH (non-condensing). It offers ingress protection from IP54 to IP65, suitable for washdown environments. Power supply is 24 V DC ±10% with reverse polarity protection, and power consumption ranges from 15 to 30 W depending on screen size and brightness. Communication interfaces include RS-232, RS-485, Ethernet, and USB. Mounting options are panel or VESA (75/100 mm), and weight varies from 1.5 to 5.0 kg. The module is constructed with software code as its primary material. For procurement, verify model-specific values and standards with the legal manufacturer or supplier.
Working Principle
The module receives calibration parameters and commands from users through interactive visual elements, processes these inputs, communicates with underlying calibration algorithms and hardware interfaces, and displays real-time calibration data, status, and results back to the user in a comprehensible graphical format. It translates user actions into system commands and presents system outputs as visual feedback, enabling efficient monitoring and control of calibration processes.
Common Materials
Software Code
Technical Parameters
ParameterTypical rangeNotes & selection driver
Screen Size7–15 inchLarger screens for complex calibration setups
Resolution1024×600–1920×1080 pixelsHigher resolution for detailed data display
Touch TypeResistive–CapacitiveCapacitive for glove operation
Operating Temperature-20–60 °COutside range may cause display failureIEC 60068-2-1
Storage Temperature-40–85 °CNon-operating conditionIEC 60068-2-2
Humidity10–90 % RHNon-condensingIEC 60068-2-78
Ingress ProtectionIP54–IP65IP65 for washdown environmentsIEC 60529
Supply Voltage24 ±10% V DCReverse polarity protected
Power Consumption15–30 WDepends on screen size and brightness
Communication InterfaceRS-232, RS-485, Ethernet, USBMultiple protocols for system integration
Mounting TypePanel–VESAVESA 75/100 mm
Weight1.5–5.0 kgVaries with size and enclosure

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM
  • Control Panel Interface
    Provides interactive buttons, sliders, and input fields for calibration parameter configuration
    Material: software
  • Data Visualization Engine
    Renders real-time calibration data as graphs, charts, and numerical displays
    Material: software
  • Status Display Module Part
    Shows calibration progress, system status, and error messages to the user
    Material: software

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Calibration Software Interface
View system integration details

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: N/A (software component)
other spec: Display resolution: 1920x1080 minimum, Refresh rate: 60Hz, Input latency: <16ms
temperature: 0°C to 50°C (operating), -20°C to 70°C (storage)
Media Compatibility
✓ Calibration software platforms ✓ Industrial PC systems ✓ Touchscreen interfaces
Unsuitable: High-vibration environments without proper mounting/isolation
Sizing Data Required
  • Required display resolution and aspect ratio
  • Number of simultaneous calibration parameters to display
  • Integration method with existing calibration system architecture

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Touchscreen Degradation
Cause: Repeated mechanical stress from user interaction, environmental contaminants (dust, oils), and UV exposure leading to delamination, dead zones, or unresponsive areas.
Display Backlight Failure
Cause: Thermal cycling and prolonged operation causing LED/LCD driver component fatigue, inverter board capacitor degradation, or power supply instability.
Maintenance Indicators
  • Intermittent screen flickering, freezing, or unresponsive touch zones during operation.
  • Abnormal audible buzzing or clicking from the display housing, indicating electrical arcing or failing internal components.
Engineering Tips
  • Implement regular screen calibration and cleaning with manufacturer-approved, non-abrasive solutions to prevent capacitive sensor drift and physical wear.
  • Ensure proper thermal management with adequate ventilation, ambient temperature control, and scheduled power cycling to reduce thermal stress on electronic components.

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
ISO 9241-210:2019 (Ergonomics of human-system interaction) ANSI/HFES 100-2007 (Human Factors Engineering of Computer Workstations) CE Marking (EU conformity for health, safety, and environmental protection)

Quoted from the published standard.

Manufacturing Precision
  • Touchscreen Alignment: +/-0.5mm
  • Color Gamut Uniformity: +/-5% Delta E
Quality Inspection
  • Usability Heuristic Evaluation
  • Environmental Stress Testing (Temperature/Humidity)

Manufacturers of Graphical User Interface Module

Manufacturer profiles associated with Graphical User Interface Module.

Sourcing Graphical User Interface Module from China?
Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.
Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Share this page

Compiled and source-reviewed by the CNFX editorial team. Each manufacturer above links to the page on that company's own website where the product is listed, with the date we checked it. How we source and review · Page last updated 6 September 2026

Technical documentation
Request current drawings, revision history, and a signed specification sheet.
Manufacturing capability
Verify equipment lists, process limits, capacity, and representative production evidence.
Inspection readiness
Confirm test methods, calibrated equipment, sampling plans, and traceable reports.
Supplier transparency
Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Supply Chain Compatible Machinery & Devices

Industrial Smart Camera Module

The Industrial Smart Camera Module is a compact, self-contained vision processing unit designed for integration into industrial machinery and production lines.

Explore Specs →
Surface Mount Resistor

Passive electronic component for current limiting and voltage division in circuits

Explore Specs →
Surface Mount Capacitor

A surface mount capacitor is a fundamental electronic component used for energy storage, filtering, coupling, and decoupling in electronic circuits.

Explore Specs →
Surface Mount Technology (SMT) Pick-and-Place Machine

Automated machine that precisely places electronic components onto printed circuit boards.

Explore Specs →

Frequently Asked Questions

What is the typical screen size range for this module?

The module supports screen sizes from 7 to 15 inches, depending on the specific model and application requirements.

Can the module be used in harsh industrial environments?

Yes, it offers ingress protection from IP54 to IP65, and operates in temperatures from -20 to 60 °C, making it suitable for many industrial settings.

What communication interfaces are available?

The module supports RS-232, RS-485, Ethernet, and USB for system integration.

How should I verify the specifications for my application?

Always confirm model-specific values, such as exact screen size, resolution, and compliance with standards like IEC 60068-2-1, with the legal manufacturer or supplier.
