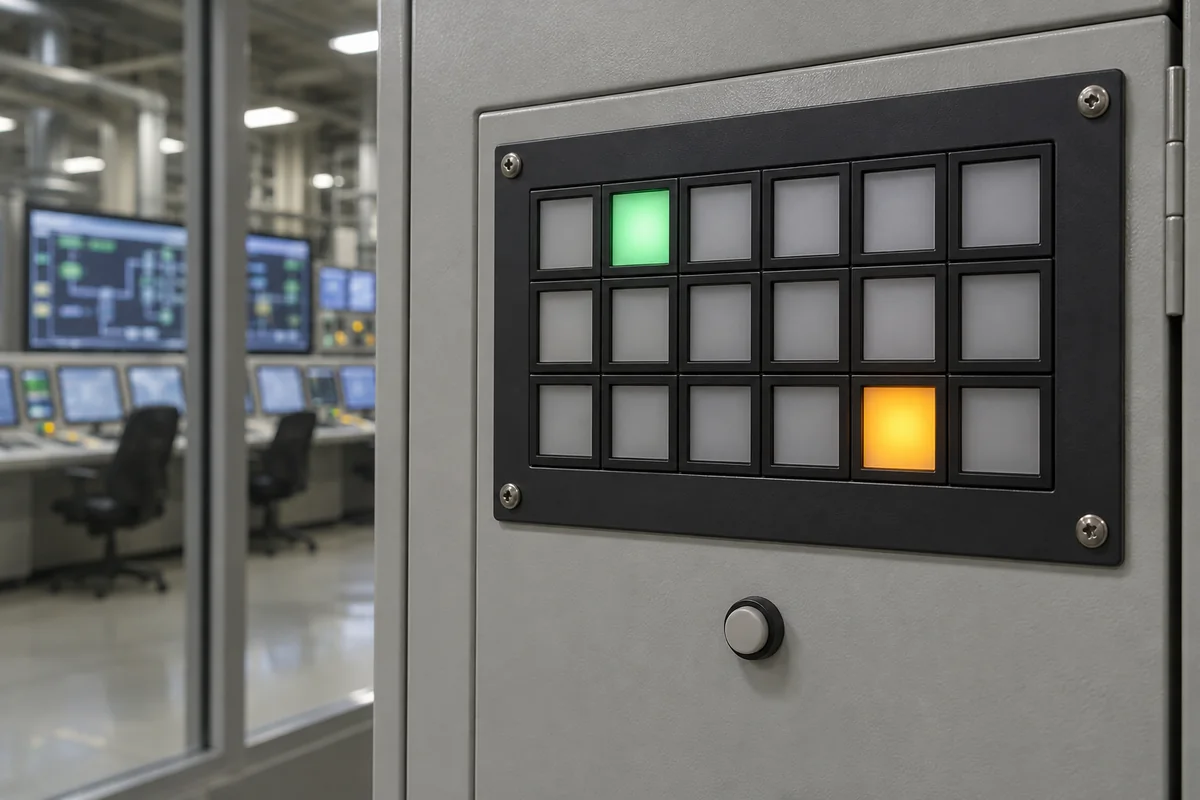

Status Indicator Panel

Based on aggregated insights from multiple verified factory profiles within the CNFX directory, the standard Status Indicator Panel used in the Machinery and Equipment Manufacturing sector typically supports operational capacities ranging from standard industrial configurations to heavy-duty production requirements.

Technical Definition & Core Assembly

A canonical Status Indicator Panel is characterized by the integration of Indicator LEDs and Display Screen. In industrial production environments, manufacturers listed on CNFX commonly emphasize Polycarbonate construction to support stable, high-cycle operation across diverse manufacturing scenarios.

A visual display component within an Emergency Shutdown System that provides real-time status information about system conditions and operational states.

View Full Specifications Explore Manufacturing Sources

Product Specifications

Technical details and manufacturing context for Status Indicator Panel

Definition
The Status Indicator Panel is a critical interface component of an Emergency Shutdown System (ESD) that visually communicates the operational status of various system elements. It typically displays information such as normal operation, alarm conditions, shutdown status, and fault diagnostics through lights, LEDs, or digital readouts. This panel enables operators to quickly assess system health and respond appropriately to emergency situations.
Working Principle
The panel receives electrical signals from sensors and control units within the Emergency Shutdown System. These signals are processed and converted into visual indicators (lights, LEDs, displays) that represent different system states. Typically uses low-voltage circuits with fail-safe designs to ensure reliable operation even during power fluctuations or partial system failures.
Common Materials
Polycarbonate, Aluminum alloy, ABS plastic, Stainless steel
Technical Parameters
  • Panel dimensions including thickness, width, and height for mounting compatibility (mm) Standard Spec
Components / BOM
  • Indicator LEDs
    Visual status indication through colored lights
    Material: LED chips with polycarbonate lenses
  • Display Screen
    Digital readout of detailed status information
    Material: LCD or OLED panel with protective glass
  • Mounting Frame
    Structural support and enclosure for panel components
    Material: Aluminum alloy or stainless steel
  • Circuit Board
    Processes input signals and controls indicator outputs
    Material: FR-4 PCB with copper traces
  • Connection Terminals
    Electrical interface for system connections
    Material: Copper alloy with nickel plating
Engineering Reasoning
0-85°C ambient temperature, 18-30 VDC supply voltage, 50-1000 cd/m² luminance
LED degradation beyond 70% initial luminous flux, LCD contrast ratio below 10:1, power supply voltage outside 16-32 VDC range
Design Rationale: LED semiconductor junction thermal degradation at >125°C junction temperature, LCD liquid crystal alignment disruption at <-20°C, electrolytic capacitor electrolyte evaporation at >105°C ambient
Risk Mitigation (FMEA)
Trigger Transient voltage spike exceeding 40 VDC for >100 μs
Mode: LED driver IC thermal runaway causing permanent LED array failure
Strategy: TVS diode clamping at 35 VDC with 600 W peak pulse power rating
Trigger Condensation accumulation exceeding 0.1 mL/cm² on PCB surface
Mode: Surface insulation resistance dropping below 10⁶ Ω causing false status indication
Strategy: Conformal coating with IPC-CC-830B Class 3 compliance at 50 μm minimum thickness

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for Status Indicator Panel.

emergency shutdown system status indicator panel machinery equipment status display panel industrial ESD system visual indicator real-time system condition monitoring panel durable polycarbonate status indicator for machinery

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Emergency Shutdown System
View system integration details

Industrial Ecosystem & Supply Chain DNA

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: 0 to 1 bar (ambient pressure only)
other spec: IP66/NEMA 4X ingress protection, 24V DC power supply, 85-265V AC optional
temperature: -40°C to +85°C
Media Compatibility
✓ Control room air environments ✓ Non-hazardous area installations ✓ Clean industrial atmospheres
Unsuitable: Explosive atmospheres (ATEX Zone 0/1) without proper certification
Sizing Data Required
  • Required number of status indicators/LEDs
  • Panel mounting dimensions and cutout requirements
  • Communication protocol compatibility (e.g., Modbus, Profibus, HART)

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
LED/Lamp Failure
Cause: Thermal stress from prolonged operation or voltage spikes leading to filament burnout or semiconductor degradation
Contact/Connection Failure
Cause: Corrosion from moisture ingress or vibration-induced loosening of electrical terminals and connectors
Maintenance Indicators
  • Intermittent or flickering indicator lights during normal operation
  • Unusual audible buzzing or crackling sounds from the panel housing
Engineering Tips
  • Implement periodic infrared thermography scans to detect abnormal heat patterns in electrical components before failure
  • Establish a cleaning and sealing regimen for panel gaskets and ventilation filters to prevent contaminant ingress

Compliance & Manufacturing Standards

Reference Standards
ISO 3864-1:2011 - Graphical symbols for safety signs ANSI/UL 969 - Standard for Marking and Labeling Systems CE marking per EU Directive 2014/35/EU (Low Voltage Directive)
Manufacturing Precision
  • Panel flatness: +/-0.5mm across surface
  • Indicator cutout dimensions: +/-0.1mm
Quality Inspection
  • Color consistency verification per Pantone/RAL standards
  • Electrical continuity and insulation resistance testing

Factories Producing Status Indicator Panel

Verified manufacturers with capability to produce this product in China

Add your factory

✓ 92% Supplier Capability Match Found

P Procurement Specialist from United States Jan 11, 2026
★★★★★
"Impressive build quality. Especially the technical reliability is very stable during long-term operation."
Technical Specifications Verified
T Technical Director from United Arab Emirates Jan 08, 2026
★★★★★
"As a professional in the Machinery and Equipment Manufacturing sector, I confirm this Status Indicator Panel meets all ISO standards."
Technical Specifications Verified
P Project Engineer from Australia Jan 05, 2026
★★★★★
"Standard OEM quality for Machinery and Equipment Manufacturing applications. The Status Indicator Panel arrived with full certification."
Technical Specifications Verified
Verification Protocol

“Feedback is collected from verified sourcing managers during RFQ (Request for Quote) and factory evaluation processes on CNFX. These reports represent historical performance data and technical audit summaries from our B2B manufacturing network.”

15 sourcing managers are analyzing this specification now. Last inquiry for Status Indicator Panel from Thailand (1h ago).

Supply Chain Compatible Machinery & Devices

Heavy-Duty CNC Plasma Cutting Machine

Industrial machine for precision metal cutting using plasma arc technology

Explore Specs →
Automated Assembly Line System

Integrated production system for sequential component assembly operations

Explore Specs →
Automated Powder Coating System

Integrated industrial system for applying dry powder coatings to metal substrates.

Explore Specs →
Centrifugal Pump Impeller

Rotating component that transfers energy to fluid in centrifugal pumps.

Explore Specs →

Frequently Asked Questions

What materials are used in the Status Indicator Panel construction?

The panel is constructed from durable materials including polycarbonate for the display surface, aluminum alloy for the frame, ABS plastic for housing components, and stainless steel for mounting hardware to ensure reliability in industrial environments.

How does the Status Indicator Panel integrate with Emergency Shutdown Systems?

The panel connects directly to ESD systems via connection terminals and circuit boards, receiving real-time data to display system conditions through indicator LEDs and display screens, providing immediate visual feedback on operational states.

What are the key components included in the Status Indicator Panel?

Key components include indicator LEDs for status alerts, a display screen for detailed information, a mounting frame for secure installation, circuit boards for processing, and connection terminals for system integration.
