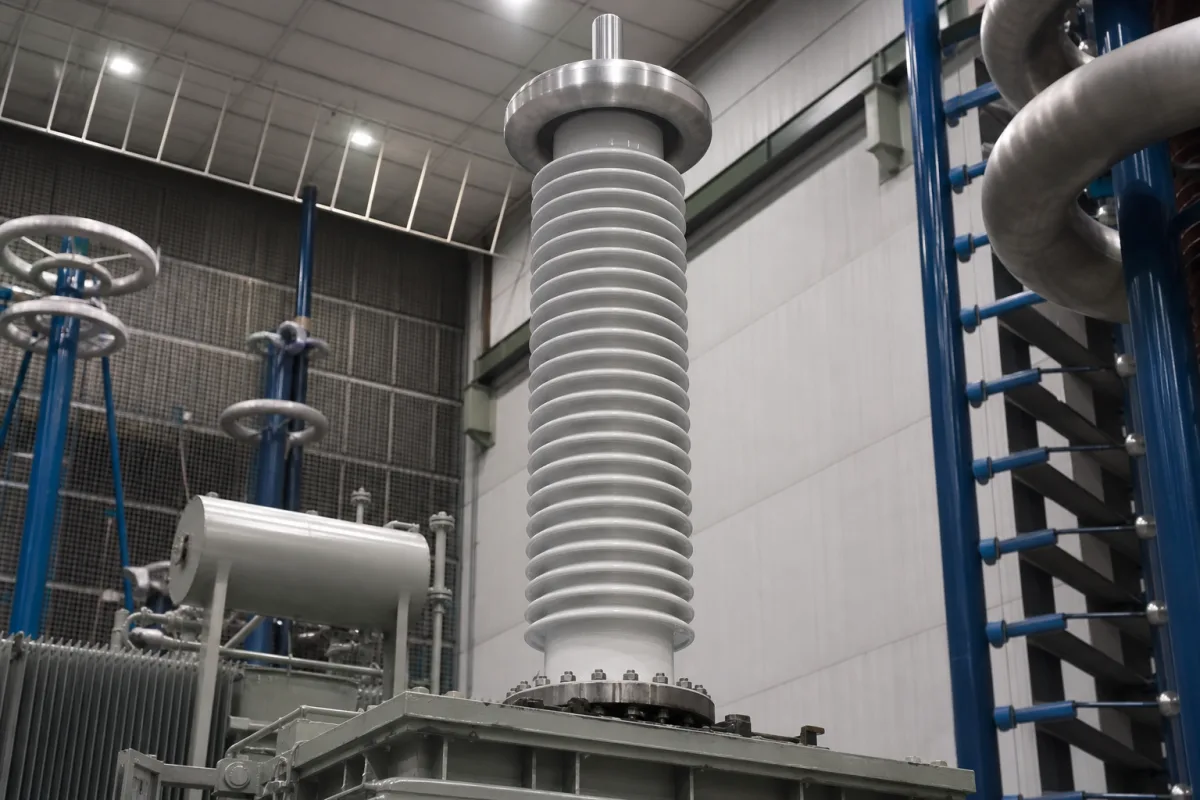

High-Voltage Insulating Bushing

Based on aggregated insights from multiple verified factory profiles within the CNFX directory, the standard High-Voltage Insulating Bushing used in the Manufacture of Other Electrical Equipment sector typically supports operational capacities ranging from standard industrial configurations to heavy-duty production requirements.

Technical Definition & Core Assembly

A canonical High-Voltage Insulating Bushing is characterized by the integration of Insulating Core and Conductor Terminal. In industrial production environments, manufacturers listed on CNFX commonly emphasize Porcelain construction to support stable, high-cycle operation across diverse manufacturing scenarios.

Electrical insulation component for high-voltage conductor pass-through in equipment enclosures.

View Full Specifications Explore Manufacturing Sources

Product Specifications

Technical details and manufacturing context for High-Voltage Insulating Bushing

Definition
A high-voltage insulating bushing is a critical electrical insulation component designed to safely pass conductors through grounded metal enclosures while maintaining dielectric integrity. It prevents electrical discharge and flashover by providing a controlled insulation path between high-voltage conductors and grounded equipment housings. These components are essential in electrical equipment manufacturing where conductors must penetrate barriers without compromising safety or performance. They serve as vital interface points in transformers, switchgear, and power distribution equipment supply chains.
Working Principle
Provides dielectric insulation through ceramic or composite material barriers that separate high-voltage conductors from grounded metal surfaces, preventing electrical arcing and maintaining safe operating clearances.
Common Materials
Porcelain, Epoxy Resin Composite, Silicone Rubber
Technical Parameters
  • Rated voltage withstand capability (kV) Customizable
  • Creepage distance for pollution conditions (mm) Customizable
Components / BOM
  • Insulating Core
    Primary dielectric barrier between conductor and ground
    Material: Porcelain or Composite
  • Conductor Terminal
    Electrical connection point for high-voltage conductor
    Material: Copper or Aluminum
  • Flange Assembly
    Mounting interface to equipment enclosure
    Material: Galvanized Steel
  • Gasket Seal Optional
    Environmental seal between bushing and enclosure
    Material: Silicone Rubber
Engineering Reasoning
1-765 kV AC, 1.2-1100 kV DC
Electric field strength exceeding 15 kV/mm at 20°C, 50% humidity
Design Rationale: Partial discharge inception voltage threshold breach causing cumulative insulation degradation through treeing phenomena
Risk Mitigation (FMEA)
Trigger Moisture ingress exceeding 0.5% by volume in oil-impregnated paper insulation
Mode: Dielectric breakdown at 65% of rated voltage due to reduced resistivity
Strategy: Hermetic sealing with double O-ring gaskets and continuous SF6 gas pressure monitoring at 0.4 MPa
Trigger Thermal cycling between -40°C and 105°C exceeding 1000 cycles
Mode: Ceramic-to-metal seal fracture at 3.2×10^-6 m/m thermal expansion mismatch
Strategy: Kovar alloy transition pieces with graded CTE from 5.3 to 17.0×10^-6/K

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for High-Voltage Insulating Bushing.

High Voltage Bushing Insulator Bushing Transformer Bushing Electrical Pass-Through Insulator high voltage porcelain insulating bushing epoxy resin composite electrical bushing silicone rubber high voltage insulator BIL rated insulating bushing for enclosures creepage distance optimized electrical bushing

Industrial Ecosystem & Supply Chain DNA

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: Atmospheric to 0.5 bar differential pressure
other spec: Rated voltage: 1 kV to 800 kV, Creepage distance: 20-5000 mm depending on voltage class, Partial discharge: <5 pC at rated voltage
temperature: -40°C to +105°C continuous, up to +130°C short-term
Media Compatibility
✓ Dry air or SF6 gas insulation ✓ Mineral oil transformer fluid ✓ Clean, dry industrial atmospheres
Unsuitable: Salt fog or coastal marine environments with high chloride contamination
Sizing Data Required
  • System voltage and BIL (Basic Insulation Level) rating
  • Conductor diameter and required creepage distance
  • Envelope dimensions and mounting configuration constraints

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Surface Tracking and Flashover
Cause: Contamination accumulation (dust, salt, moisture) on the bushing surface creating conductive paths, leading to partial discharges and eventual insulation breakdown.
Internal Partial Discharge Degradation
Cause: Voids or delamination within the solid insulation material (e.g., epoxy resin, porcelain) due to manufacturing defects, thermal cycling, or mechanical stress, causing progressive insulation deterioration.
Maintenance Indicators
  • Audible crackling or hissing sounds near the bushing, indicating active corona discharge or partial discharge.
  • Visible surface carbon tracking marks, white powder deposits (from partial discharge byproducts), or oil leaks (for oil-filled bushings).
Engineering Tips
  • Implement regular infrared thermography scans to detect abnormal heating from poor connections or internal defects before catastrophic failure.
  • Establish a rigorous cleaning and coating schedule for the bushing exterior using non-conductive, hydrophobic coatings to prevent contamination buildup and moisture ingress.

Compliance & Manufacturing Standards

Reference Standards
IEC 60137:2017 (Insulated bushings for alternating voltages above 1000 V) ANSI/IEEE C57.19.00 (General Requirements and Test Code for Power Apparatus Bushings) DIN 42523 (Insulating bushings for transformers and switchgear; requirements, testing)
Manufacturing Precision
  • Bore diameter tolerance: +/-0.05mm
  • Parallelism of flange surfaces: 0.08mm maximum deviation
Quality Inspection
  • Partial Discharge Test (per IEC 60270)
  • Power Factor/Tan Delta Test (dielectric loss measurement)

Factories Producing High-Voltage Insulating Bushing

Verified manufacturers with capability to produce this product in China

Add your factory

✓ 96% Supplier Capability Match Found

S Sourcing Manager from Australia Feb 17, 2026
★★★★★
"Reliable performance in harsh Manufacture of Other Electrical Equipment environments. No issues with the High-Voltage Insulating Bushing so far."
Technical Specifications Verified
P Procurement Specialist from Singapore Feb 14, 2026
★★★★☆
"Testing the High-Voltage Insulating Bushing now; the Rated Voltage (kV) results are within 1% of the laboratory datasheet. (Delivery took slightly longer than expected, but technical support was excellent.)"
Technical Specifications Verified
T Technical Director from Germany Feb 11, 2026
★★★★★
"Impressive build quality. Especially the Rated Voltage (kV) is very stable during long-term operation."
Technical Specifications Verified
Verification Protocol

“Feedback is collected from verified sourcing managers during RFQ (Request for Quote) and factory evaluation processes on CNFX. These reports represent historical performance data and technical audit summaries from our B2B manufacturing network.”

7 sourcing managers are analyzing this specification now. Last inquiry for High-Voltage Insulating Bushing from Germany (1h ago).

Frequently Asked Questions

What are the key specifications to consider when selecting a high-voltage insulating bushing?

Critical specifications include BIL (Basic Insulation Level) rating in kV, creepage distance in mm for pollution resistance, current rating in A, insulation resistance in MΩ, operating temperature range in °C, and rated voltage in kV to ensure compatibility with your electrical system.

How do material choices like porcelain, epoxy resin, and silicone rubber affect bushing performance?

Porcelain offers excellent mechanical strength and tracking resistance, epoxy resin composites provide good dielectric properties and design flexibility, while silicone rubber excels in hydrophobicity and pollution performance for harsh environments. Selection depends on application-specific requirements like voltage, environmental conditions, and mechanical stresses.

What maintenance is required for high-voltage insulating bushings in electrical equipment?

Regular visual inspections for cracks or contamination, periodic cleaning to maintain creepage distance, and insulation resistance testing are recommended. Ensure gasket seals remain intact to prevent moisture ingress. Follow manufacturer guidelines based on the specific material (porcelain, epoxy, or silicone) and operating conditions.

Can I contact factories directly on CNFX?

CNFX is an open directory, not a transaction platform. Each factory profile provides direct contact information and production details to help you initiate direct inquiries with Chinese suppliers.
