The short answer

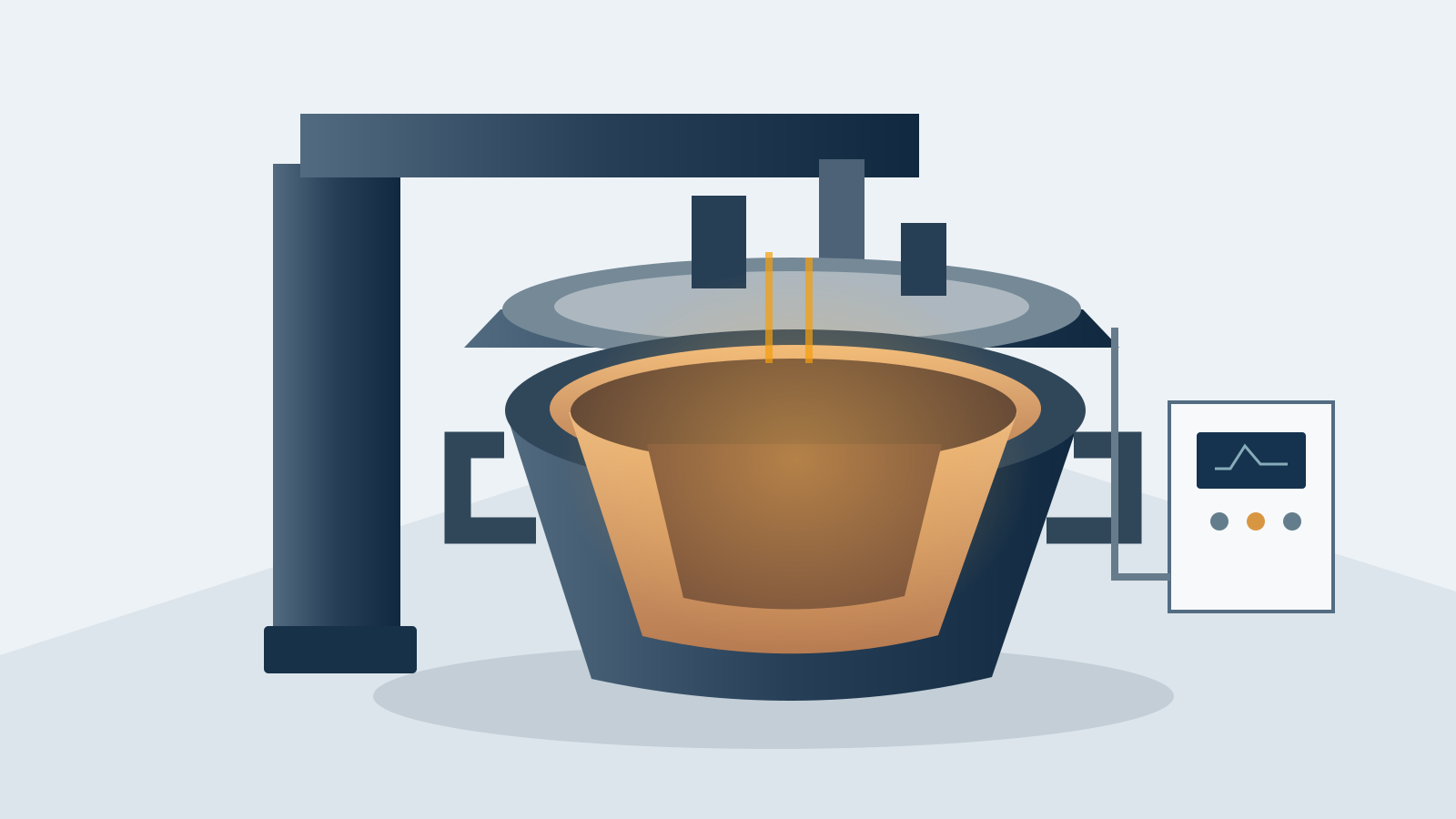

Specify drying and preheating as separate duties, even if one station will perform both. A newly installed refractory lining needs its approved drying and curing requirements addressed; a prepared ladle needs heating appropriate to its next production cycle. A quotation that promises a high final temperature does not, by itself, demonstrate suitability for a new lining.
Firebridge's process explanation distinguishes drying, curing and preheating. Stelter & Brinck's equipment range separately identifies dryers, preheaters and combination units. These are useful distinctions for a purchasing brief, not interchangeable product names.
This guide is for buyers and engineers preparing a foundry or steelworks equipment inquiry. It is not a dry-out schedule, commissioning procedure or permission to charge molten metal. The lining supplier, equipment manufacturer and responsible plant specialists must approve the actual process.
Start with the condition of the lining
| Purchasing duty | What the supplier must address | Evidence to request |
|---|---|---|
| Newly lined or repaired vessel | Applicable curing and dry-out requirements for the named refractory and repair condition | Lining supplier's current instructions; proposed equipment capability against each required stage |
| Prepared vessel returning to service | Preheating from a defined starting condition to the plant's approved readiness condition | Agreed starting state, measurement locations, temperature record and acceptance responsibilities |
| Prepared vessel awaiting the next heat | Holding or reheating during the planned production delay | Duty-cycle description, control approach and energy measurement boundary |
Use the table to separate quotation line items, not to decide that a particular ladle is ready. MAPEKO describes heating and warm-holding applications as well as drying equipment in its ladle heater range. Whether your station covers all three duties must be confirmed for its proposed configuration.
Why maximum temperature is a poor first comparison
Two quotations can state the same maximum temperature while proposing different controls, heat distribution, vessel access and drying capability. Ask each bidder to respond to the same duty specification before comparing price.
- Control across the required cycle: ask for the proposed ramp-and-hold capability and how it will be validated against the lining instructions. Do not select a heating rate from a general catalogue.
- Measurement: ask what is measured, where it is measured, and how that reading relates to the agreed acceptance condition. A burner setting is not a complete lining-temperature record.
- Uniformity: ask the equipment and refractory specialists to define the required measurement plan and acceptance limits for your vessel, rather than accepting an unqualified “uniform heating” claim.
- Physical fit: provide the smallest and largest ladle drawings, cover interface and handling arrangement. Nominal metal capacity alone is not a complete equipment interface.
These are buyer-side verification questions, not universal machine requirements. For example, CEBA describes both vertical and horizontal arrangements, while Linde lists programmable drying and reheating curves for its own systems. Neither statement proves that every configuration fits your plant.
Gas, oxy-fuel or electric: compare the whole duty
Keep the energy-source decision separate from the drying-duty decision. Kanthal describes electric ladle heating; Linde's system description covers an oxygen-fuel approach. These examples establish that different approaches exist, not that one is always the lowest-cost choice.
For each bid, request utility requirements, installation scope, controls integration, maintenance access and a duty-specific consumption estimate. Include oxygen consumption where relevant, and distinguish purchased electricity from heat delivered to the vessel. Ask the bidder to state the assumptions behind any savings estimate.
Do not compare headline efficiency percentages without matching the boundary: the starting lining condition, cycle endpoint, holding time and included auxiliary equipment must be stated. Do not describe electric equipment as universally zero-carbon; the electricity source and the scope of the calculation matter. Emissions and safety compliance require a site-specific review, not a badge copied from a brochure.
A supplier brief you can reuse
Send the same information pack to every candidate. Mark unknown fields as “to be confirmed” and assign someone to resolve them before technical acceptance.
- Application: metal/process, plant location, new installation or retrofit, and which drying, preheating or holding duties are required.
- Vessel interface: controlled drawings, lining build-up, cover opening, handling method, available floor space and access restrictions.
- Refractory documentation: manufacturer, exact product designation, installation or repair condition, current curing/dry-out instructions and approving specialist.
- Production timing: starting condition, required availability, expected interruptions and number of positions. Ask for a feasible proposal; do not invent a cycle time.
- Utilities: confirmed site supplies and their available capacity; identify who checks adequacy and who supplies connection work.
- Controls and records: required plant interface, access rights, cycle records, alarm history, export format and responsibilities for integration.
- Safety and acceptance: applicable site requirements, documented safeguards, factory/site acceptance scope, commissioning responsibility and operator training.
- Commercial comparison: included equipment, exclusions, consumables, recommended spares, service availability and terms for demonstrating agreed performance.
Ask for a response matrix with one row per requirement and columns for complies / deviation / evidence / responsible party. A “complies” answer without a drawing, document or agreed test method is still an open point.
Review the documents before accepting the station
- Reconcile the proposal: check that the equipment model, configuration, drawings and offered duties are consistent across the quotation and technical documents.
- Close the lining interface: have the refractory and equipment specialists resolve the proposed cycle and measurement method together. A generic curve is not approval for a specific lining.
- Agree what acceptance proves: list the records and demonstrations required for each duty, including the starting conditions and who signs off. Distinguish a factory test from a site demonstration.
- Resolve deviations in writing: identify exclusions, unproven assumptions and changes needed at the plant before placing reliance on promised performance.
- Keep operational release separate: only authorized specialists should commission the equipment or conduct hazardous tests under the plant's approved procedures. Do not bypass safeguards to demonstrate a cycle.
NUTEC Bickley's product information illustrates that controls, instrumentation and configuration are customized. Your purchase should define the required result and evidence, rather than assume every controller or layout has equivalent capability.
Common purchasing mistakes
- Calling a dryer a preheater without checking the duties. This can leave part of the required process outside the offered scope.
- Copying a temperature from another foundry. A different refractory, metal or starting condition can make that comparison inappropriate.
- Treating horizontal versus vertical as a quality ranking. Compare the actual configuration and plant interface instead.
- Counting a brochure claim as a witnessed test. Request the stated conditions and an agreed acceptance method.
- Using a product-directory range as an operating setting. A reference page is not the manufacturer's approved instruction for your vessel.
Questions before you order
Can one station dry and preheat a ladle?
Combination systems exist. Confirm that the offered configuration supports the approved requirements of both duties; the name “dryer-preheater” alone is insufficient.
What preheating temperature should I specify?
Use the value and measurement basis approved for the actual process and refractory. This guide deliberately supplies no universal temperature, rate or soak time.
How much does a ladle preheater cost?
A useful comparison needs matched scope. Request equipment, utilities integration, handling, controls, commissioning and support as separate items. CNFX has not obtained a current, comparable price set for your application.
Does a hot surface prove that a new lining is dry?
No single surface observation substitutes for the required process verification and specialist release. Treat uncertainty about moisture or completed dry-out as an unresolved safety issue, not a reason to shorten the cycle.
Sources and scope
Prepared by CNFX with AI assistance; original manufacturer information checked on 12 September 2026. This is a document-based procurement guide, not a witnessed equipment test or professional engineering sign-off. Source links appear beside the relevant discussion. Manufacturer statements apply to their own offerings; CNFX does not endorse a brand or promise the same result for another installation.
