Fluid Cap / Body

This page explains how Fluid Cap / Body is classified within Machinery and Equipment Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

The main housing component of a spray nozzle assembly that contains and directs fluid flow.

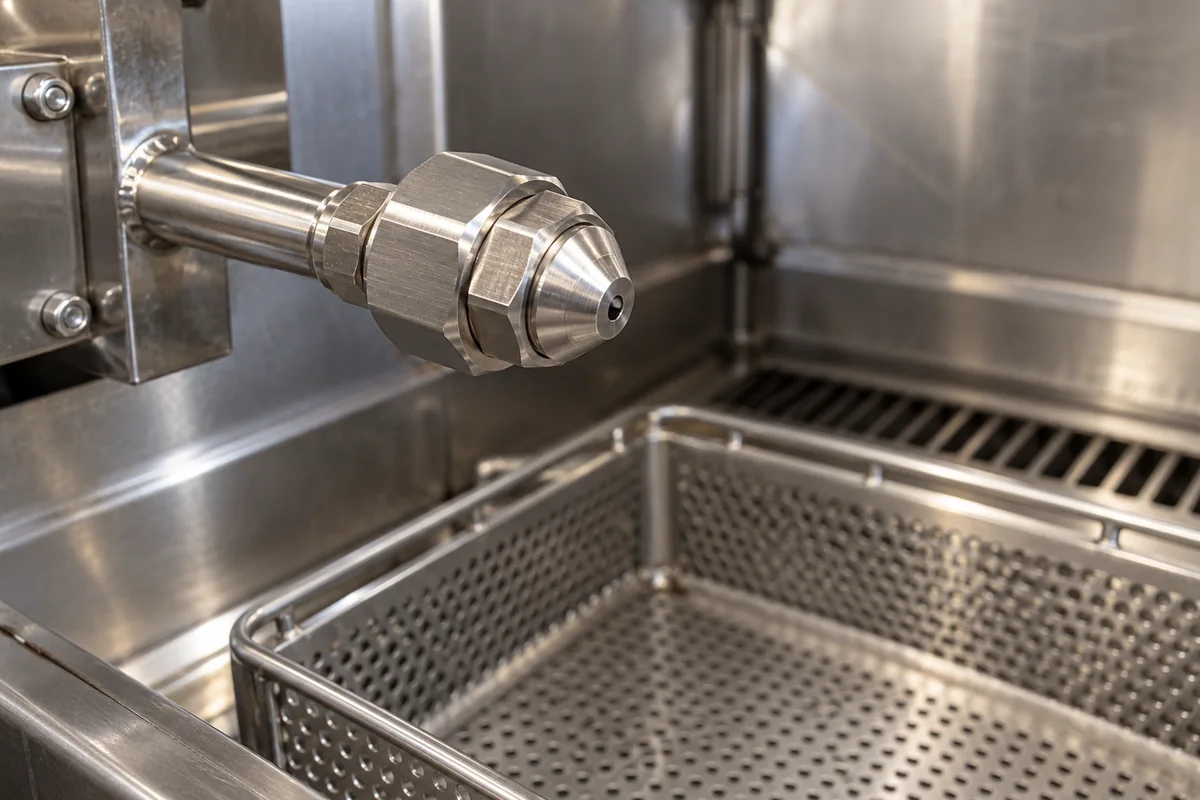

Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Fluid Cap / Body

Definition
The Fluid Cap/Body is the primary structural component of a spray nozzle assembly, serving as the housing that encloses internal parts, maintains pressure integrity, and provides the fluid passageway from the inlet to the orifice. It determines the nozzle's connection type, mounting configuration, and overall durability. This component is typically manufactured from materials such as Stainless Steel 316, Brass, or PVC, selected based on the application's chemical compatibility, pressure, and temperature requirements. The body's design includes an inlet connection, typically threaded per ISO 7-1 with sizes ranging from 1/4 to 1 inch, and an internal chamber that directs fluid toward the orifice plate or spray tip. The operating pressure range is 1.0–1.6 MPa, with a pressure rating of PN16–PN40 per ISO 7268, and the flow rate varies from 5 to 50 L/min depending on nozzle size and pressure. The temperature range is -40 to 85°C, limited by seal material, which can be NBR or FKM per ASTM D2000. Critical dimensions are held to a tolerance of ±0.05 mm per ISO 2768-m, and surface finish on sealing surfaces is Ra 0.8–1.6 µm per ISO 1302. Thread tolerances are 6g–6H per ISO 965-1. The overall length ranges from 50 to 150 mm, and weight from 0.5 to 2.5 kg. Material grades for stainless steel are typically SS304–SS316 per ASTM A276, with 316 recommended for corrosive media. These values are reference ranges; actual specifications must be confirmed with the manufacturer for the specific model and application. The Fluid Cap/Body is essential for ensuring proper spray performance, pressure containment, and system reliability.
Working Principle
Fluid enters the body through an inlet connection, flows through an internal chamber where pressure is maintained, and is directed toward the orifice plate or spray tip. The body's geometry controls flow characteristics and provides structural support for all internal components. The internal chamber is designed to minimize pressure drop and ensure uniform flow distribution. The body's material and wall thickness must withstand the operating pressure and temperature. The inlet connection size and thread type determine compatibility with the piping system. The body also provides mounting points for the nozzle assembly, ensuring proper alignment and sealing. The surface finish of internal passages affects flow resistance and wear resistance. The body's design must accommodate the seal material and maintain a leak-tight joint under varying thermal and pressure conditions. Proper installation and torque are critical to avoid over-stressing the body or damaging threads. Regular inspection for corrosion, erosion, or cracking is necessary to maintain performance and safety.
Common Materials
Stainless Steel 316, Brass, PVC
Technical Parameters
ParameterTypical rangeNotes & selection driver
Flow Rate5–50 L/minDepends on nozzle size and pressure
Inlet Connection Size1/4–1 inchThread type per ISO 7-1ISO 7-1
Material GradeSS304–SS316316 for corrosive mediaASTM A276
Temperature Range-40–85 °CSeal material limits
Weight0.5–2.5 kgDepends on size and material
Surface FinishRa 0.8–1.6 µmCritical for sealing surfacesISO 1302
Tolerance on Critical Dimensions±0.05 mmEnsures proper fit and sealingISO 2768-m
Thread Tolerance6g–6HFor external and internal threadsISO 965-1
Pressure RatingPN16–PN40Max allowable working pressureISO 7268
Seal MaterialNBR–FKMFKM for high temp and chemical resistanceASTM D2000
Overall Length50–150 mmVaries with connection size

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.
