Torque Wrench

This page explains how Torque Wrench is classified within Repair and Installation of Machinery and Equipment. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

A precision tool used to apply a specific torque to a fastener such as a nut or bolt.

View Full Specifications Explore Manufacturing Sources

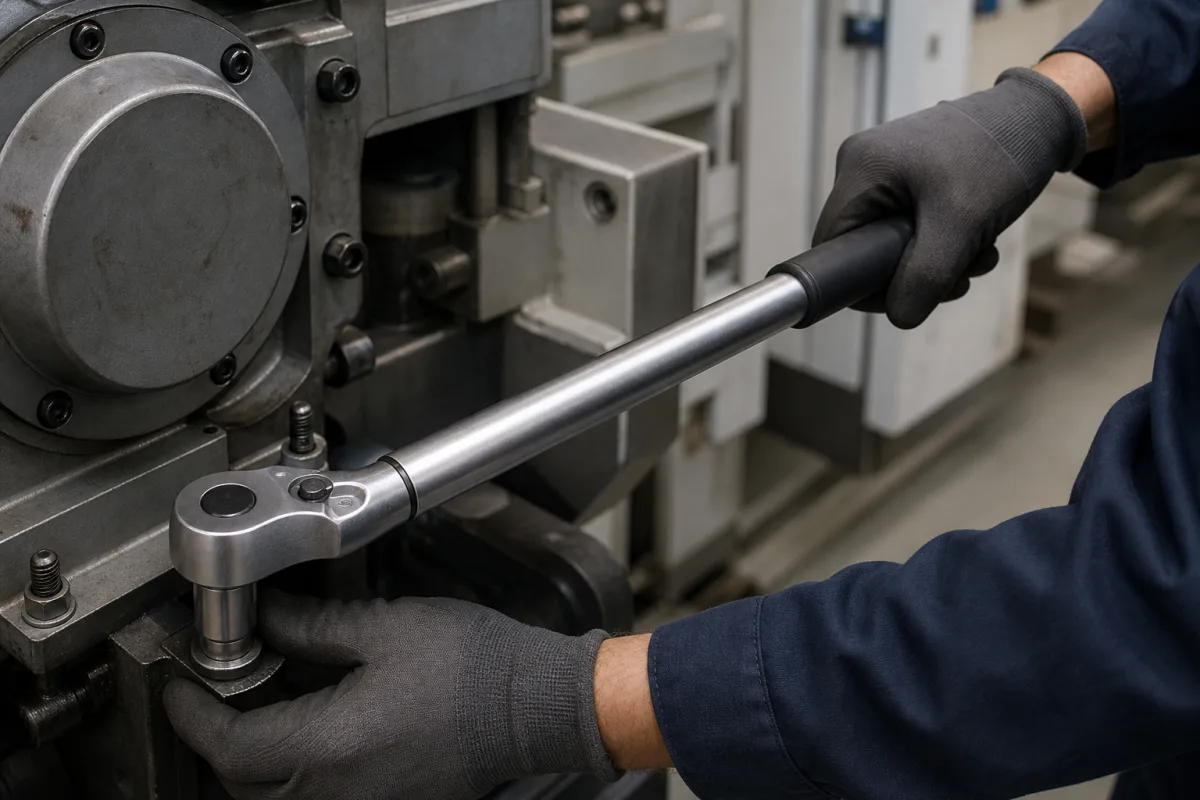

Torque Wrench in a manufacturing environment
Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Torque Wrench

Definition
A torque wrench is a specialized hand tool used in the repair and installation of machinery and equipment. It is designed to tighten fasteners to a predetermined torque value, ensuring proper clamping force without over-tightening or under-tightening. This precision is critical for assembly quality, safety, and equipment longevity. The tool is part of an adjustment tool set and is available in various configurations to suit different applications.

The torque wrench typically features a square drive (commonly 1/2 inch) for use with sockets. It is constructed from chrome vanadium steel and aluminum alloy, offering durability and reduced weight. The tool operates within a torque range of 20–100 N·m, with an accuracy of ±4% of the indicated value in the clockwise direction, as per ISO 6789. The overall length varies between 400–450 mm, and the weight ranges from 1.0–1.5 kg, depending on the material and design.

Operating temperature should be between -10°C and 50°C, with storage temperature between -20°C and 70°C. The tool is suitable for non-condensing humidity up to 90% RH. The scale division is 1 N·m, allowing precise adjustments. The drive size conforms to ISO 1174.

When selecting a torque wrench, consider the required torque range, accuracy, drive size, and environmental conditions. Verify model-specific values and standards with the legal manufacturer or supplier, as the listed parameters are typical ranges and may vary. Regular calibration and proper storage are essential to maintain accuracy. If the tool is dropped or shows signs of damage, it should be inspected and recalibrated. Avoid using the wrench beyond its specified torque range, as this may degrade accuracy or cause failure.
Working Principle
The torque wrench incorporates a mechanical or electronic mechanism that indicates when the preset torque value is reached. This is typically achieved through a calibrated spring, a torsion bar, or a strain gauge. When the applied torque reaches the set value, the mechanism triggers a click, visual signal, or digital readout. The internal deflection or release at the target torque ensures that the fastener is tightened to the desired specification without over-tightening.
Common Materials
Chrome vanadium steel, Aluminum alloy
Technical Parameters
ParameterTypical rangeNotes & selection driver
Torque Range20–100 N·mTypical range for general industrial fasteningISO 6789
Accuracy±4 %Of indicated value, clockwise directionISO 6789
Drive Size1/2 inchSquare drive for socketsISO 1174
Overall Length400–450 mmVaries with torque range
Weight1.0–1.5 kgDepends on material and design
Operating Temperature-10–50 °COutside this range accuracy may degrade
Storage Temperature-20–70 °CAvoid extreme heat or cold
Humidity Range≤90 % RHNon-condensing
MaterialCr-VChrome vanadium steel for durability
Scale Division1 N·mSmallest increment on scale

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM
  • Torque Adjustment Mechanism
    Allows the user to set the desired torque value, often via a rotating handle or digital interface.
    Material: Steel, Plastic
  • Release/Click Mechanism
    Produces an audible click or tactile signal when the preset torque is reached, preventing further tightening.
    Material: Steel
  • Drive Head Part
    The square drive that accepts sockets to interface with fasteners.
    Material: Hardened steel
  • Handle/Grip Part
    Provides ergonomic leverage and control for the user during operation.
    Material: Rubber, Plastic
  • Calibrated Spring
    Its preload sets the release point; this is the part that actually stores the torque setting.

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Adjustment Tool Set
View system integration details

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: Not applicable (mechanical tool)
other spec: Torque range: 5-500 Nm, Accuracy: ±3%
temperature: -20°C to 50°C
Media Compatibility
✓ Automotive assembly ✓ Aerospace fastening ✓ Industrial machinery maintenance
Unsuitable: High-vibration environments without anti-slip mechanisms
Sizing Data Required
  • Required torque value (Nm or ft-lbs)
  • Fastener size and material
  • Application frequency (intermittent vs. continuous use)

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Torque calibration drift
Cause: Wear in internal gear mechanisms or spring fatigue from repeated use and over-torquing
Mechanical binding or seizure
Cause: Contamination from dirt, debris, or lack of lubrication in moving parts
Maintenance Indicators
  • Audible clicking inconsistency or absence during torque application
  • Visible damage or wear on the ratchet head or drive square
Engineering Tips
  • Store the wrench at its lowest torque setting to relieve spring tension and prevent calibration drift
  • Regularly clean and lubricate the ratchet mechanism and calibrate annually or per manufacturer guidelines

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
ISO 6789-1:2017 - Assembly tools for screws and nuts - Hand torque tools - Requirements and test methods for design conformance testing and quality conformance testing ASME B107.300-2010 - Torque Instruments DIN EN ISO 6789-1:2017 - Assembly tools for screws and nuts - Hand torque tools - Requirements and test methods for design conformance testing and quality conformance testing

Quoted from the published standard.

Manufacturing Precision
  • Torque accuracy: +/-4% of indicated value (for Class A tools per ISO 6789)
  • Scale graduation tolerance: +/-0.5% of full scale
Quality Inspection
  • Calibration verification test using certified torque tester (traceable to NIST or equivalent)
  • Repeatability test - measuring torque output consistency across multiple applications

Manufacturers of Torque Wrench

11 companies list this product among what they make. Company figures are quoted from each company's own website; every card states where the relationship came from.

SinoExtrud (Foshan Yonghang Aluminum Co., Ltd)
Foshan, Guangdong, CN
ISO EN
Also makes: Aluminum Extrusion Profile, CNC Machined Part, Photovoltaic Panel and 9 more
Listed on the company's own website · profile compiled by CNFX from public sources
View source page ↗ sinoextrud.com · checked 2026-08-18
View profile Send enquiry
Jinan Huachen Industrial Co., Ltd.
Shandong, CN
Founded 199836,000 m²
ISO9001 CE
Also makes: Agricultural Machinery, Construction Equipment, Hydraulic Power Unit and 9 more
Listed on the company's own website · profile compiled by CNFX from public sources
Listed there as: “Torque Wrench Hydraulic Pump”
View source page ↗ hchcic.com · checked 2026-08-22
View profile Send enquiry
ACCUD
Suzhou, Jiangsu, CN
Also makes: Portable Digital Multimeter, Vision System, Surface Plate and 1 more
Listed on the company's own website · profile compiled by CNFX from public sources
Listed there as: “Torque Wrench”
View source page ↗ accud.com · checked 2026-09-08
View profile Send enquiry
Mikrometry
Shenzhen, Guangdong, CN
Listed on the company's own website · profile compiled by CNFX from public sources
Listed there as: “TWM The Electric Torque Wrench Tester”
View source page ↗ mikrometry.com · checked 2026-08-29
View profile Send enquiry
Pingyuan Jingke Hydraulic Co., Ltd.
Shandong, CN
Also makes: Hydraulic Cylinder, Hoist System, Display Module and 2 more
Listed on the company's own website · profile compiled by CNFX from public sources
Listed there as: “Preset Manual Torque Wrench”
View source page ↗ torcstark.com · checked 2026-08-27
View profile Send enquiry
Shandong Changlu Tools Co.,Ltd.
Linyi, Shandong, CN
Also makes: Air Compressor, Pressure Gauge, Water Pump
Listed on the company's own website · profile compiled by CNFX from public sources
Listed there as: “Torque Wrench”
View source page ↗ changlutools.com · checked 2026-09-08
View profile Send enquiry
TIANJIN SFREYA TOOLS
Tianjin, CN
Listed on the company's own website · profile compiled by CNFX from public sources
Listed there as: “Torque Wrench”
View source page ↗ sfreyatools.com · checked 2026-09-05
View profile Send enquiry
TORQUE-TECH PRECISION CO., LTD.
Taiwan, CN
Also makes: Torque Limiter
Listed on the company's own website · profile compiled by CNFX from public sources
Listed there as: “slipping torque wrench”
View source page ↗ tw-torquetech.com · checked 2026-09-15
View profile Send enquiry
Xian Goshine Mechanical Engineering
Xian, Shaanxi, CN
Also makes: Hydraulic Cylinder, Hydraulic Pump
Listed on the company's own website · profile compiled by CNFX from public sources
Listed there as: “Hydraulic Torque Wrench”
View source page ↗ goshineme.com · checked 2026-09-15
View profile Send enquiry
Yantai Winner Hydraulics Technology Co., Ltd.
Yantai, Shandong, CN
Also makes: Hydraulic Cylinder, Hydraulic Pump, Tube Bundle
Listed on the company's own website · profile compiled by CNFX from public sources
Listed there as: “Hydraulic Torque Wrench”
View source page ↗ winner-hydraulics.com · checked 2026-09-06
View profile Send enquiry
Yueqing NEWJIELI Technology Co., Ltd.
Zhejiang, CN
Also makes: Slope Sensor (Tilt Sensor)
Listed on the company's own website · profile compiled by CNFX from public sources
Listed there as: “Torque Wrench”
View source page ↗ newjieli.com · checked 2026-09-07
View profile Send enquiry
View All Factories

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Share this page

Compiled and source-reviewed by the CNFX editorial team. Each manufacturer above links to the page on that company's own website where the product is listed, with the date we checked it. How we source and review · Page last updated 16 September 2026

Technical documentation
Request current drawings, revision history, and a signed specification sheet.
Manufacturing capability
Verify equipment lists, process limits, capacity, and representative production evidence.
Inspection readiness
Confirm test methods, calibrated equipment, sampling plans, and traceable reports.
Supplier transparency
Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Frequently Asked Questions

What is the typical torque range of this torque wrench?

The typical torque range is 20–100 N·m, as listed in the directory. However, model-specific values may vary, so always verify with the manufacturer or supplier.

What accuracy can I expect from this torque wrench?

The accuracy is ±4% of the indicated value in the clockwise direction, according to ISO 6789. This is a reference value; actual accuracy may depend on the model and calibration.

What drive size does this torque wrench have?

The drive size is 1/2 inch, conforming to ISO 1174. This is standard for many sockets, but confirm compatibility with your tools.

What are the operating temperature limits?

The operating temperature range is -10°C to 50°C. Outside this range, accuracy may degrade. Storage temperature should be between -20°C and 70°C.
