I/O Peripherals

This page explains how I/O Peripherals is classified within Computer, Electronic and Optical Product Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

Hardware components that enable communication between a microcontroller/DSP and external devices or systems.

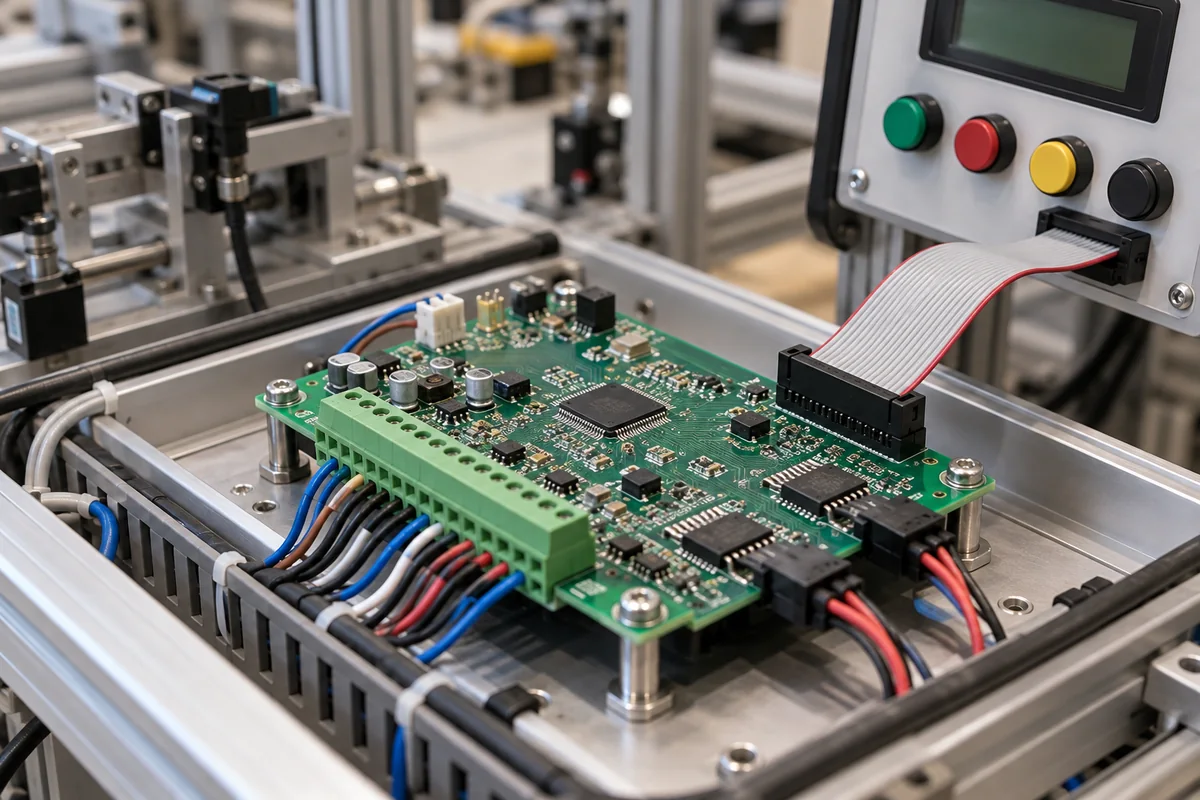

Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for I/O Peripherals

Definition
I/O Peripherals are specialized hardware modules integrated within or connected to a microcontroller or Digital Signal Processor (DSP) that manage the input and output of data. They act as an interface, translating signals between the processor's internal digital logic and the external analog or digital world of sensors, actuators, displays, communication networks, and other devices. They are essential for the microcontroller/DSP to interact with and control its environment. These peripherals are designed to handle a variety of signal types and protocols, including digital inputs and outputs, analog-to-digital conversion, and serial communication interfaces such as UART, SPI, and I2C. They often include features like electrical isolation, short-circuit protection, and configurable logic levels to ensure reliable operation in industrial environments. The selection of an I/O peripheral depends on the specific requirements of the application, including the number of channels, voltage levels, resolution, response time, and environmental conditions. It is important to verify model-specific parameters and compliance with relevant standards, such as IEC 61131-2 for logic levels and IEC 60747 for isolation, with the legal manufacturer or supplier before integration. The directory provides reference ranges for common parameters, but actual values must be confirmed for the intended use case.
Working Principle
I/O peripherals operate by implementing specific communication protocols and signal conditioning. They typically consist of registers controlled by the processor core. The core writes configuration and data to these registers. The peripheral's dedicated hardware then independently handles the timing, signal conversion (e.g., analog-to-digital), protocol framing (e.g., UART, SPI, I2C), and electrical driving/receiving required for the external interface, often generating interrupts to signal the core upon completion of an operation.
Common Materials
Semiconductor (Silicon), Copper, Plastic/Polymer (Encapsulation)
Technical Parameters
ParameterTypical rangeNotes & selection driver
Supply Voltage3.3–5 V DCLogic level compatibilityIEC 61131-2
Number of I/O Channels8–32Configurable digital or analog
Digital Input Voltage Range0–24 V DCType 1/2/3 compatibleIEC 61131-2
Digital Output Current0.5–2 APer channel, short-circuit protected
Analog Input Resolution12–16 bitHigher resolution for precision
Analog Output Accuracy±0.1 % FSRAt 25 °C, includes offset and gain
Isolation Voltage1500–2500 V RMSOptocoupler or transformer isolationIEC 60747
Operating Temperature-40–85 °CIndustrial gradeIEC 60068-2-1/2
Ingress Protection RatingIP20–IP65Higher for harsh environmentsIEC 60529
Communication InterfaceUART, SPI, I2CSelectable via configuration
Response Time1–10 msFor digital input to output
Power Consumption0.5–2 WAt nominal supply, no load
Dimensions50×50×20 – 100×100×40 mmDepends on channel count
Weight50–200 gWithout connectors

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM
  • I/O Pin / Port Part
    Physical electrical connection point to external circuits. Can be configured as input or output.
    Material: Copper alloy, Gold plating
  • Control Register Part
    Memory-mapped register used by the processor to configure the peripheral's mode, enable interrupts, and set parameters.
    Material: Semiconductor (flip-flops/logic gates)
  • Data Register
    Memory-mapped register used to write output data to or read input data from the peripheral.
    Material: Semiconductor (flip-flops/logic gates)
  • Protocol Logic Part
    Dedicated hardware state machine or logic that generates/parses the specific communication protocol (e.g., UART, SPI frame).
    Material: Semiconductor (logic gates)
  • Analog-to-Digital Conversion Block Optional
    On-chip converter that turns an analogue input into a value the core can read.

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: N/A (typically atmospheric, unless sealed/enclosed in pressurized housing)
other spec: Signal integrity: voltage levels (e.g., 3.3V, 5V, 24V), data rate (e.g., up to 100 Mbps for digital I/O), isolation voltage (e.g., 2.5kV for isolated I/O), ESD protection (e.g., ±15kV)
temperature: -40°C to +85°C (industrial grade), -40°C to +125°C (extended/automotive)
Media Compatibility
✓ Industrial control panels (dry, controlled environments) ✓ Factory automation equipment (moderate dust, vibration) ✓ Laboratory instrumentation (clean, low-interference)
Unsuitable: Submerged or high-humidity (>90% RH) corrosive environments without IP67/IP69K sealing
Sizing Data Required
  • Number and type of I/O channels required (digital inputs/outputs, analog inputs/outputs, communication protocols)
  • Power supply voltage and current requirements for I/O peripherals and connected devices
  • Environmental conditions (temperature, humidity, EMI/RFI noise levels) and required protection ratings (IP, NEMA)

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Signal Degradation
Cause: Connector wear, cable fatigue, or electromagnetic interference from nearby equipment leading to intermittent or corrupted data transmission.
Physical Interface Failure
Cause: Mechanical wear of ports/connectors, environmental contamination (dust, moisture), or improper handling causing bent pins or broken components.
Maintenance Indicators
  • Intermittent connectivity or frequent disconnection events reported by control systems
  • Visible damage to connectors/cables or audible crackling/static from audio peripherals
Engineering Tips
  • Implement regular inspection and cleaning of connectors using appropriate tools (e.g., contact cleaner, compressed air) to prevent contamination buildup
  • Use strain relief on cables and secure routing to prevent flex fatigue, and maintain proper cable management to avoid electromagnetic interference

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
ISO 9241-400: Ergonomics of human-system interaction - Part 400: Principles and requirements for physical input devices ANSI/HFES 100-2007: Human Factors Engineering of Computer Workstations CE marking under the EU's EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Quoted from the published standard.

Manufacturing Precision
  • Key switch actuation force: +/- 10% of specified value (e.g., 45g +/- 4.5g)
  • Connector pin alignment: +/- 0.15mm from nominal position
Quality Inspection
  • Functional testing (key rollover, ghosting, response time verification)
  • Environmental stress testing (temperature cycling, humidity resistance, mechanical durability)

Manufacturers of I/O Peripherals

Manufacturer profiles associated with I/O Peripherals.

Sourcing I/O Peripherals from China?
Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.
Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Technical documentation
Request current drawings, revision history, and a signed specification sheet.
Manufacturing capability
Verify equipment lists, process limits, capacity, and representative production evidence.
Inspection readiness
Confirm test methods, calibrated equipment, sampling plans, and traceable reports.
Supplier transparency
Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Supply Chain Compatible Machinery & Devices

Modular Industrial Edge Computing Device

This modular industrial edge computing device is a ruggedized system designed for deployment in harsh industrial environments to perform real-time data processing, analytics, and control functions at the network edge.

Explore Specs →
Industrial Smart Camera Module

The Industrial Smart Camera Module is a compact, self-contained vision processing unit designed for integration into industrial machinery and production lines.

Explore Specs →
Surface Mount Resistor

Passive electronic component for current limiting and voltage division in circuits

Explore Specs →
Surface Mount Capacitor

A surface mount capacitor is a fundamental electronic component used for energy storage, filtering, coupling, and decoupling in electronic circuits.

Explore Specs →

Frequently Asked Questions

What are the typical supply voltage ranges for I/O peripherals?

According to the directory, the supply voltage is typically in the range of 3.3 to 5 V DC, with logic level compatibility per IEC 61131-2. However, always verify the exact voltage requirements for your specific model with the manufacturer.

How many I/O channels can these peripherals support?

The number of I/O channels is configurable and typically ranges from 8 to 32, depending on the model. The channels can be configured as digital or analog. Confirm the channel count and configuration options with the supplier.

What communication interfaces are commonly available?

Common communication interfaces include UART, SPI, and I2C, which are selectable via configuration. The availability of these interfaces may vary by model, so check the datasheet or consult the manufacturer.

What is the operating temperature range for industrial-grade I/O peripherals?

The operating temperature range is typically -40 to 85 °C, as per IEC 60068-2-1/2. However, this is a reference range; the actual range for a specific product should be verified with the manufacturer.
