Physical Interface (PHY)

This page explains how Physical Interface (PHY) is classified within Computer, Electronic and Optical Product Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

Hardware component that implements the physical layer of network communication, handling signal transmission and reception over a physical medium.

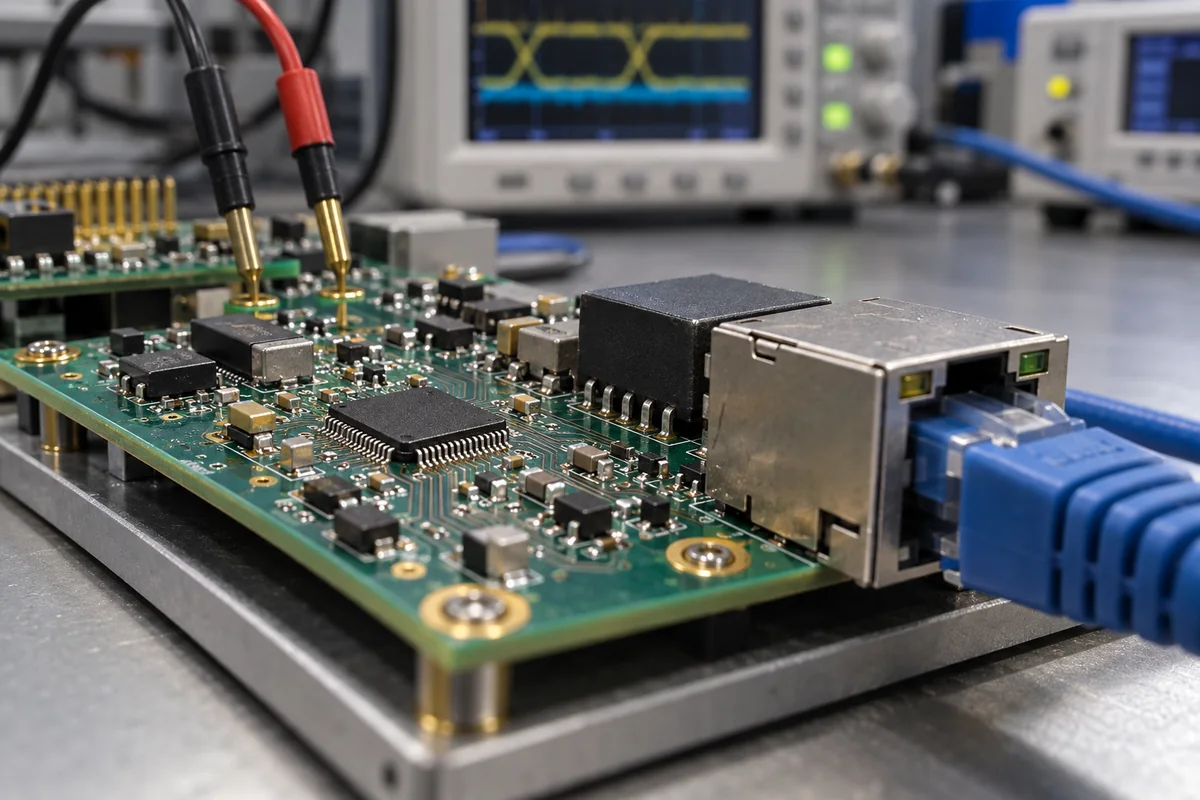

Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Physical Interface (PHY)

Definition
The Physical Interface (PHY) is a critical component within a Communication Module responsible for the physical layer (Layer 1) of the OSI model. It manages the direct electrical or optical connection to the network medium, performing essential functions such as signal modulation/demodulation, line coding, synchronization, and error detection at the bit level. It serves as the bridge between the digital data from the Media Access Control (MAC) layer and the analog signals transmitted over cables, fiber optics, or wireless channels.

In a typical Ethernet application, the PHY receives digital data frames from the MAC layer via a standardized interface such as RGMII. It then encodes this data into a format suitable for transmission over the specific physical medium, applying line coding or modulation schemes like Manchester encoding or QAM. For copper media, it converts the digital signals into analog electrical signals; for fiber, it modulates light. On reception, the PHY recovers the clock signal from the incoming analog waveform, demodulates and decodes it back into a digital bit stream, and passes it up to the MAC layer.

Key parameters for selection include data rate (10/100/1000 Mbps per IEEE 802.3), supply voltage (3.3 V ±5%), operating temperature range (-40 to 85 °C), power consumption (0.5–1.5 W), package type (QFN-48), interface (RGMII), cable length (up to 100 m for Cat5e/6), ESD protection (±8 kV contact discharge per IEC 61000-4-2), operating humidity (10–90% RH non-condensing), and jitter (±0.02 UI peak-to-peak at 1 Gbps). These values are typical reference ranges and must be verified for the specific model and application.

When selecting a PHY, consider the required data rate, media type (copper or fiber), interface compatibility with the MAC, and environmental conditions. Verify compliance with relevant standards such as IEEE 802.3 and IEC 61000-4-2 with the legal manufacturer or supplier. Maintenance signals include link loss, excessive bit error rate, or temperature warnings. Failure boundaries include damage from ESD beyond specified limits, operation outside temperature/humidity ranges, or exceeding cable length specifications.
Working Principle
The PHY receives digital data frames from the MAC layer via an interface like RGMII. It encodes the data using line coding or modulation suitable for the medium (e.g., Manchester, QAM). For copper, it converts digital signals to analog electrical signals; for fiber, it modulates light. On reception, it recovers the clock from the incoming analog waveform, demodulates/decodes the signal back to digital bits, and passes them to the MAC layer.
Common Materials
Silicon (Integrated Circuit), Copper (Traces/Pads), Ceramic or Plastic (Package)
Technical Parameters
ParameterTypical rangeNotes & selection driver
Data Rate10/100/1000 MbpsAuto-negotiation supportedIEEE 802.3
Supply Voltage3.3 ±5% VTypical for 1000BASE-T PHYs
Operating Temperature-40–85 °CIndustrial grade
Power Consumption0.5–1.5 WDepends on link speed and features
Package TypeQFN-48Common for 10/100/1000 PHY
InterfaceRGMIIReduced Gigabit Media Independent Interface
Cable Length100 mMaximum for Cat5e/6IEEE 802.3
ESD Protection±8 kVContact dischargeIEC 61000-4-2
Operating Humidity10–90 % RHNon-condensing
Jitter±0.02 UIPeak-to-peak at 1 GbpsIEEE 802.3

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM
  • Line Driver
    Amplifies the digital signal to a level suitable for transmission over the physical medium.
    Material: Silicon
  • Line Receiver
    Receives and conditions the weak incoming analog signal from the medium, amplifying it and converting it back to a digital logic level.
    Material: Silicon
  • Encoder/Decoder Part
    Applies and removes line coding (e.g., 4B/5B, 8B/10B) for DC balance and clock recovery.
    Material: Silicon
  • Clock Data Recovery (CDR) Circuit
    Extracts the clock signal from the incoming data stream to synchronize the receiver.
    Material: Silicon

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for Physical Interface (PHY).

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: N/A (electronic component)
other spec: Data Rate: 10 Mbps to 10 Gbps
temperature: -40°C to 85°C
Media Compatibility
✓ Ethernet cables (Cat5e/6/6a) ✓ Fiber optic cables (single/multi-mode) ✓ Coaxial cables
Unsuitable: High-voltage electrical environments
Sizing Data Required
  • Required data rate (Mbps/Gbps)
  • Transmission distance (meters/kilometers)
  • Physical medium type (copper/fiber/coaxial)

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Corrosion-induced degradation
Cause: Exposure to harsh chemicals, moisture, or environmental contaminants leading to material breakdown and signal integrity loss.
Mechanical connector wear
Cause: Repeated mating/unmating cycles, vibration, or improper handling causing pin deformation, contact fatigue, or misalignment.
Maintenance Indicators
  • Intermittent or complete loss of data transmission despite functional equipment on both ends
  • Visible corrosion, physical damage, or loose connections at the PHY interface
Engineering Tips
  • Implement regular cleaning and inspection protocols using appropriate solvents and protective coatings to prevent environmental degradation
  • Use proper mating tools and torque specifications during installation, and consider vibration-dampening mounts in high-vibration environments

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
ISO 10303-21:2016 (STEP for PHY interfaces) ANSI/TIA-568.2-D (Structured cabling for PHY) DIN EN 50173-1:2018 (Generic cabling systems)

Quoted from the published standard.

Manufacturing Precision
  • Connector mating force: +/- 0.5 N
  • Signal integrity jitter: < 0.1 UI peak-to-peak
Quality Inspection
  • Bit Error Rate Test (BERT) for signal quality
  • Environmental stress screening (temperature/humidity cycling)

Manufacturers of Physical Interface (PHY)

Manufacturer profiles associated with Physical Interface (PHY).

Sourcing Physical Interface (PHY) from China?
Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.
Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Technical documentation
Request current drawings, revision history, and a signed specification sheet.
Manufacturing capability
Verify equipment lists, process limits, capacity, and representative production evidence.
Inspection readiness
Confirm test methods, calibrated equipment, sampling plans, and traceable reports.
Supplier transparency
Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Supply Chain Compatible Machinery & Devices

Modular Industrial Edge Computing Device

This modular industrial edge computing device is a ruggedized system designed for deployment in harsh industrial environments to perform real-time data processing, analytics, and control functions at the network edge.

Explore Specs →
Industrial Smart Camera Module

The Industrial Smart Camera Module is a compact, self-contained vision processing unit designed for integration into industrial machinery and production lines.

Explore Specs →
Surface Mount Resistor

Passive electronic component for current limiting and voltage division in circuits

Explore Specs →
Surface Mount Capacitor

A surface mount capacitor is a fundamental electronic component used for energy storage, filtering, coupling, and decoupling in electronic circuits.

Explore Specs →

Frequently Asked Questions

What is the role of a PHY in a network device?

The PHY implements the physical layer (Layer 1) of the OSI model, handling signal transmission and reception over the physical medium. It converts digital data from the MAC layer into signals suitable for the medium (e.g., electrical for copper, optical for fiber) and performs the reverse on reception.

What are typical data rates supported by a PHY?

Typical data rates for Ethernet PHYs are 10/100/1000 Mbps, as per IEEE 802.3. The actual supported rates depend on the specific PHY model and must be verified with the manufacturer.

What is the operating temperature range for industrial-grade PHYs?

Industrial-grade PHYs often have an operating temperature range of -40 to 85 °C. However, this is a reference range; confirm the exact range for the specific model.

How do I verify ESD protection compliance?

ESD protection is specified in terms of contact discharge voltage, e.g., ±8 kV per IEC 61000-4-2. Verify that the PHY meets the required level for your application by checking the datasheet and confirming with the manufacturer.
