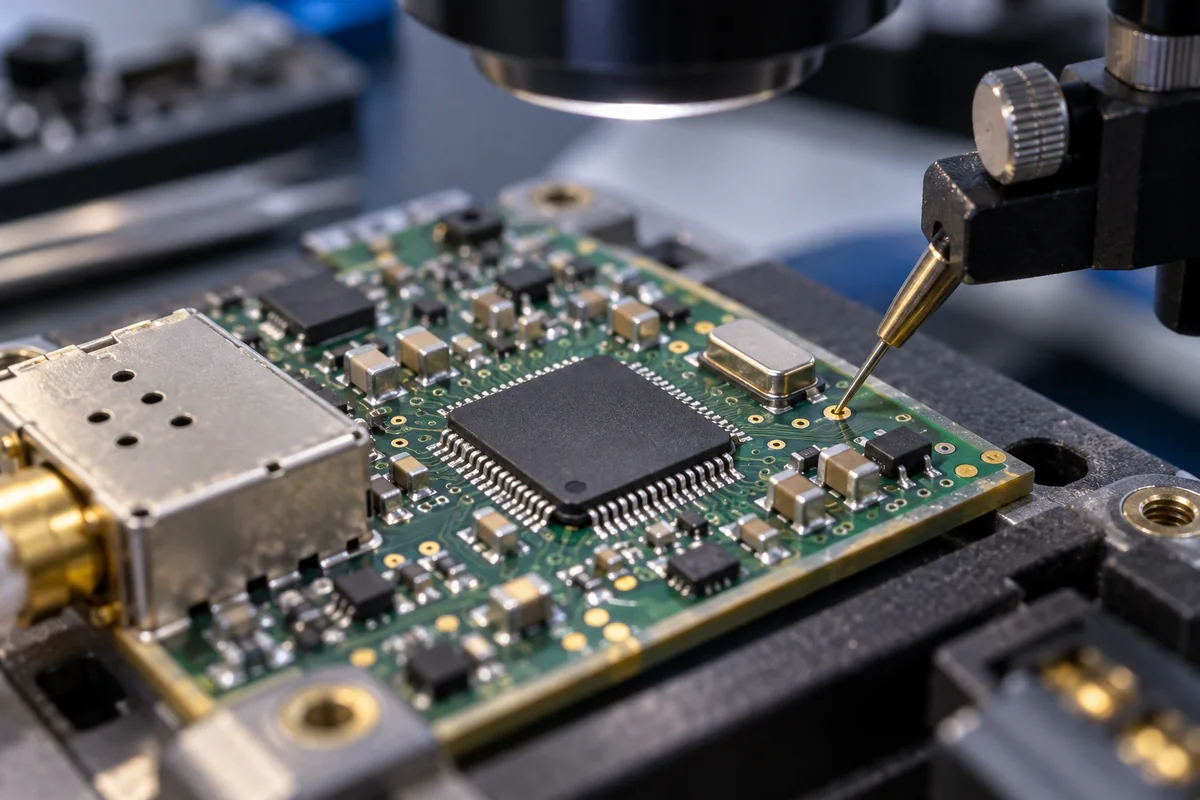

Processor/Controller IC for Communication Modules

Product Specifications

Technical details and manufacturing context for Processor/Controller IC

Definition

A specialized integrated circuit (IC) that functions as the computational brain or control center of a communication module. It processes incoming and outgoing signals, manages protocol stacks, handles data encoding/decoding, coordinates with other components, and executes firmware/software instructions to enable wireless or wired communication functions. This component is typically fabricated on silicon and is available in surface-mount packages. Key parameters include supply voltage (3.3–5 V), clock frequency (16–200 MHz), core count (1–4), flash memory (32–2048 KB), SRAM (4–512 KB), operating temperature (-40 to 85 °C), power consumption (0.1–1.5 W), GPIO pins (8–100), ADC resolution (10–16 bit), communication interfaces (1–8 channels for UART, SPI, I2C, CAN, etc.), package type (QFP-48 to QFP-144), and ESD protection (2000–8000 V, human body model, per IEC 61000-4-2). These values are reference ranges; actual specifications must be confirmed with the manufacturer for the specific model. The IC operates by receiving electrical signals from communication interfaces such as RF front-end or Ethernet PHY, processing them through embedded CPU cores or digital signal processors, executing communication protocols in firmware/software, and outputting processed data to other system components. It typically operates on stored program instructions and manages real-time tasks through interrupts and scheduling. When selecting such an IC, engineers must verify the required processing performance, memory capacity, I/O requirements, and environmental conditions. Verification questions include checking the exact supply voltage range, clock frequency, and temperature rating against the application's needs. Maintenance signals may include unexpected resets, communication errors, or overheating. Failure boundaries are defined by the absolute maximum ratings and operating conditions specified by the manufacturer.

Working Principle

The IC receives electrical signals from communication interfaces (e.g., RF front-end, Ethernet PHY), processes them through embedded CPU cores or digital signal processors, executes communication protocols in firmware/software, and outputs processed data to other system components. It typically operates on stored program instructions and manages real-time tasks through interrupts and scheduling.

Common Materials

Silicon

Technical Parameters

Parameter	Typical range	Notes & selection driver
Supply Voltage	3.3–5 V	Operating range for core and I/O
Clock Frequency	16–200 MHz	Determines processing speed
Core Count	1–4 cores	Affects multitasking capability
Flash Memory	32–2048 KB	Program storage capacity
SRAM	4–512 KB	Data memory for runtime operations
Operating Temperature	-40–85 °C	Industrial grade range
Power Consumption	0.1–1.5 W	At full load
GPIO Pins	8–100 pins	For interfacing with peripherals
ADC Resolution	10–16 bit	Precision of analog-to-digital conversion
Communication Interfaces	1–8 channels	UART, SPI, I2C, CAN, etc.
Package Type	QFP-48–QFP-144 pin	Surface mount package
ESD Protection	2000–8000 V	Human body modelIEC 61000-4-2

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM

CPU Core Part
Executes firmware/software instructions and manages overall system control

Material: silicon
Memory Controller
Manages access to external RAM and flash memory

Material: silicon
Peripheral Interfaces Part
Provides connectivity to external devices (UART, SPI, I2C, USB)

Material: silicon
DMA Controller Part
Handles direct memory access for high-speed data transfers

Material: silicon
Power Management Unit
Controls voltage regulation and power states

Material: silicon

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Communication Module

View system integration details

Manufacturers of Processor/Controller IC

Manufacturer profiles associated with Processor/Controller IC.

Sourcing Processor/Controller IC from China?

Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.

Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Procurement Evaluation Criteria

A practical evidence checklist for RFQ preparation and supplier evaluation.

Technical documentation

Request current drawings, revision history, and a signed specification sheet.

Manufacturing capability

Verify equipment lists, process limits, capacity, and representative production evidence.

Inspection readiness

Confirm test methods, calibrated equipment, sampling plans, and traceable reports.

Supplier transparency

Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Frequently Asked Questions

What is the typical supply voltage range for this IC?

The reference range is 3.3–5 V for core and I/O. However, the exact operating voltage depends on the specific model and must be confirmed with the manufacturer.

What communication interfaces are supported?

The IC supports 1–8 channels of interfaces such as UART, SPI, I2C, CAN, etc. The actual number and types vary by model.

What is the operating temperature range?

The industrial grade range is -40 to 85 °C. Always verify the temperature rating for your specific application and model.

How should I verify ESD protection compliance?

The reference ESD protection is 2000–8000 V (human body model) per IEC 61000-4-2. Confirm the actual rating and compliance with the manufacturer for the specific part.

Data Basis

Editorial classification, named public sources where available, and source-reviewed manufacturer records.

Preliminary Technical Classification

This page supports structured research, RFQ preparation, and supplier evaluation. It does not replace buyer-led supplier qualification, standards review, or technical approval.

Buyer enquiry

Request manufacturing insight for Processor/Controller IC

Ask for use case, specification boundaries, supplier type, and RFQ preparation information for this product.

Where it goes: Straight to the CNFX editorial desk, and to the manufacturer if this product is linked to a claimed profile. Nothing is broadcast to a supplier list.
Your details stay here: We do not sell or rent enquiry data, and we do not add you to a mailing list. Used only to answer this request.
No commission, no middleman: CNFX is a directory. We take no cut of any order and never negotiate on a supplier's behalf.
What we don't claim: A listing is not an endorsement. Qualify every supplier and verify every figure yourself before ordering.

pressure:	Not applicable (solid-state IC, no pressure rating)
other spec:	Operating voltage: 1.8V to 3.6V typical, Clock frequency: up to 200 MHz, Power consumption: < 100 mW active
temperature:	-40°C to +85°C (industrial grade), -40°C to +125°C (extended automotive/industrial)
