Technical Definition & Core Assembly

The main circuit breaker/disconnect is a primary safety and control component in a Motor Control Center (MCC).

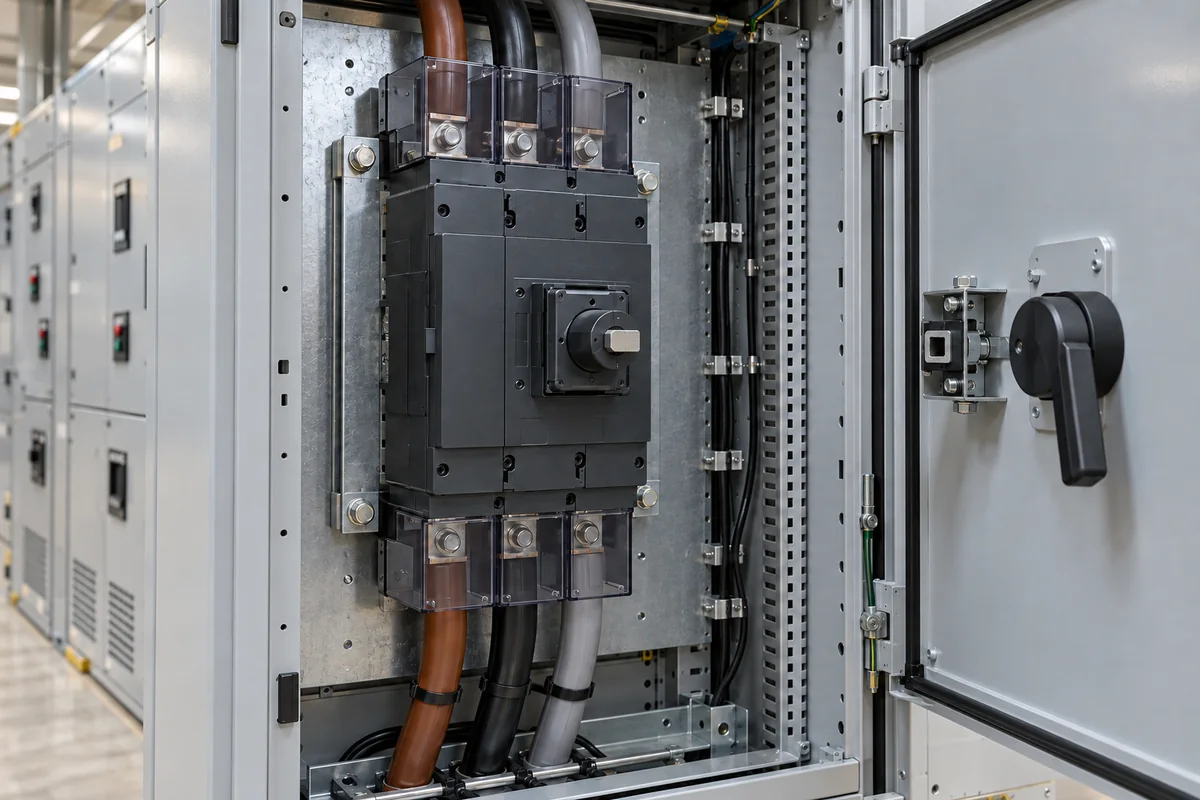

Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Main Circuit Breaker/Disconnect

Definition
The main circuit breaker/disconnect is a primary safety and control component in a Motor Control Center (MCC). It provides overcurrent protection, short-circuit interruption, and a means to completely isolate the MCC from the power supply for maintenance or emergency shutdown. This device protects downstream motor starters, control circuits, and connected equipment from electrical faults. It is designed for industrial electrical distribution systems and is typically installed at the incoming power section of an MCC. The device combines two functions: circuit breaking and disconnecting. As a circuit breaker, it automatically interrupts current flow during overloads or short circuits. As a disconnect, it provides a visible air gap when manually opened, ensuring safe isolation for personnel. The main circuit breaker/disconnect is available in various configurations, including fixed or plug-in mounting, and with three or four poles. It is rated for continuous currents from 100 to 6300 A at 40°C ambient, with a maximum operating voltage of 690 V AC. Its ultimate short-circuit breaking capacity (Icu) ranges from 50 to 150 kA. The device meets relevant IEC standards, including IEC 60947-2 for circuit breakers and IEC 60947-1 for general rules. It has a rated insulation voltage of 1000 V and a rated impulse withstand voltage of 8 to 12 kV. The operating temperature range is -25 to 70°C, with storage from -40 to 85°C. The degree of protection varies from IP20 to IP54, depending on the enclosure. Mechanical endurance ranges from 10,000 to 30,000 operations, and electrical endurance from 1,000 to 5,000 operations at rated current. Contact resistance per pole is ≤0.5 mΩ in new condition. Weight depends on frame size, ranging from 5 to 150 kg. Materials include copper alloy contacts, thermoset plastic housing, steel frame, and silver plating. For specific applications, verify model-specific values and standards with the legal manufacturer or supplier.
Working Principle
The device operates by mechanically opening or closing electrical contacts. Under normal conditions, it allows current flow to the MCC. During overloads or short circuits, a thermal-magnetic trip mechanism or electronic trip unit detects excessive current and automatically opens the contacts to interrupt the circuit. The disconnect function provides a visible air gap for safe isolation when manually operated to the OFF position. This ensures that maintenance personnel can work on the MCC without risk of electric shock.
Common Materials
Copper alloy contacts, Thermoset plastic housing, Steel frame, Silver plating
Technical Parameters
ParameterTypical rangeNotes & selection driver
Rated Current100–6300 AContinuous current at 40°C ambientIEC 60947-2
Rated Voltage690 V ACMaximum operating voltageIEC 60947-2
Breaking Capacity50–150 kAUltimate short-circuit breaking capacity (Icu)IEC 60947-2
Number of Poles3–4 poles3-pole for 3-phase, 4-pole for neutral
Rated Insulation Voltage1000 VDielectric withstand ratingIEC 60947-1
Rated Impulse Withstand Voltage8–12 kV1.2/50 μs impulseIEC 60947-1
Operating Temperature-25–70 °CStorage -40–85°CIEC 60947-1
Degree of ProtectionIP20–IP54IP54 for dust/water resistanceIEC 60529
Mechanical Endurance10000–30000 operationsNo-load operationsIEC 60947-2
Electrical Endurance1000–5000 operationsAt rated currentIEC 60947-2
Contact Resistance≤0.5 Per pole, new condition
Weight5–150 kgDepends on frame size
Mounting TypeFixed/Plug-inDrawout for MCC

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM
  • Operating Mechanism
    Manual or motorized mechanism to open/close contacts
    Material: Steel and plastic
  • Contacts Part
    Conduct current when closed, create air gap when open
    Material: Copper alloy with silver plating
  • Arc Chute
    Extinguishes electrical arc during circuit interruption
    Material: Deionizing plates (steel or copper)
  • Trip Unit
    Detects overloads and short circuits to trigger automatic opening
    Material: Thermal bimetal, magnets, or electronic components
  • Terminals Part
    Connection points for incoming and outgoing conductors
    Material: Copper or aluminum

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: N/A (electrical device, not fluid handling)
other spec: Rated voltage: up to 1000V AC, Rated current: typically 100A-5000A, Short-circuit breaking capacity: 25kA-150kA, Insulation voltage: 1000V-1500V
temperature: -20°C to +70°C (ambient operating range)
Media Compatibility
✓ Indoor industrial environments ✓ Motor control centers (MCCs) ✓ Clean, dry electrical rooms
Unsuitable: Corrosive or explosive atmospheres (e.g., chemical plants without proper enclosures)
Sizing Data Required
  • Rated current (Amps) of the protected circuit
  • System voltage (Volts) and frequency (Hz)
  • Required short-circuit breaking capacity (kA)

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Contact Erosion
Cause: Arcing during operation causing material degradation and increased resistance
Mechanical Binding
Cause: Corrosion, dust accumulation, or wear in moving parts preventing proper operation
Maintenance Indicators
  • Audible buzzing or crackling sounds during operation
  • Visible discoloration, scorch marks, or overheating on contacts or terminals
Engineering Tips
  • Implement regular infrared thermography inspections to detect abnormal heating patterns before failure
  • Establish preventive maintenance schedule for contact cleaning and lubrication of mechanical components

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
IEC 60947-2: Low-voltage switchgear and controlgear - Circuit-breakers UL 489: Molded-Case Circuit Breakers, Molded-Case Switches, and Circuit-Breaker Enclosures EN 60947-2: Low-voltage switchgear and controlgear - Part 2: Circuit-breakers

Quoted from the published standard.

Manufacturing Precision
  • Contact alignment: +/-0.5mm
  • Terminal torque: +/-10% of specified value
Quality Inspection
  • Dielectric withstand test (high-potential test)
  • Time-current characteristic verification test

Manufacturers of Main Circuit Breaker/Disconnect

Manufacturer profiles associated with Main Circuit Breaker/Disconnect.

Sourcing Main Circuit Breaker/Disconnect from China?
Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.
Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Technical documentation
Request current drawings, revision history, and a signed specification sheet.
Manufacturing capability
Verify equipment lists, process limits, capacity, and representative production evidence.
Inspection readiness
Confirm test methods, calibrated equipment, sampling plans, and traceable reports.
Supplier transparency
Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Supply Chain Compatible Machinery & Devices

Circuit Breaker Arc Chute

The Circuit Breaker Arc Chute is a critical safety component in electrical circuit breakers, designed to rapidly extinguish electric arcs that form during circuit interruption.

Explore Specs →
Medium Voltage Switchgear Assembly Line

Automated production system for assembling medium voltage electrical switchgear.

Explore Specs →
Motor Terminal Block

A motor terminal block is a standardized electrical component that provides secure, insulated connection points for motor winding leads.

Explore Specs →
PLC Control System

A digital industrial computer control system that monitors inputs, makes decisions based on a custom program, and controls outputs to automate industrial processes.

Explore Specs →

Frequently Asked Questions

What is the difference between a circuit breaker and a disconnect?

A circuit breaker automatically interrupts current flow during overloads or short circuits, while a disconnect is a manually operated switch that provides a visible air gap for safe isolation. The main circuit breaker/disconnect combines both functions in one device.

What standards apply to this device?

The device is referenced to IEC 60947-2 for circuit breakers and IEC 60947-1 for general rules. These standards define performance requirements and test methods. Always verify compliance with the legal manufacturer for the specific model.

How do I select the correct rated current?

The rated current should match the continuous load of the MCC, considering ambient temperature and derating factors. The device is available in a range from 100 to 6300 A at 40°C ambient. Consult the manufacturer's data for application-specific selection.

What maintenance is required?

Regular inspection of contacts, mechanical operation, and trip unit functionality is recommended. Check for signs of wear, corrosion, or overheating. Follow the manufacturer's maintenance schedule and verify that the device operates correctly under test conditions.

Data Basis

Editorial classification, named public sources where available, and source-reviewed manufacturer records.

Preliminary Technical Classification
This page supports structured research, RFQ preparation, and supplier evaluation. It does not replace buyer-led supplier qualification, standards review, or technical approval.
