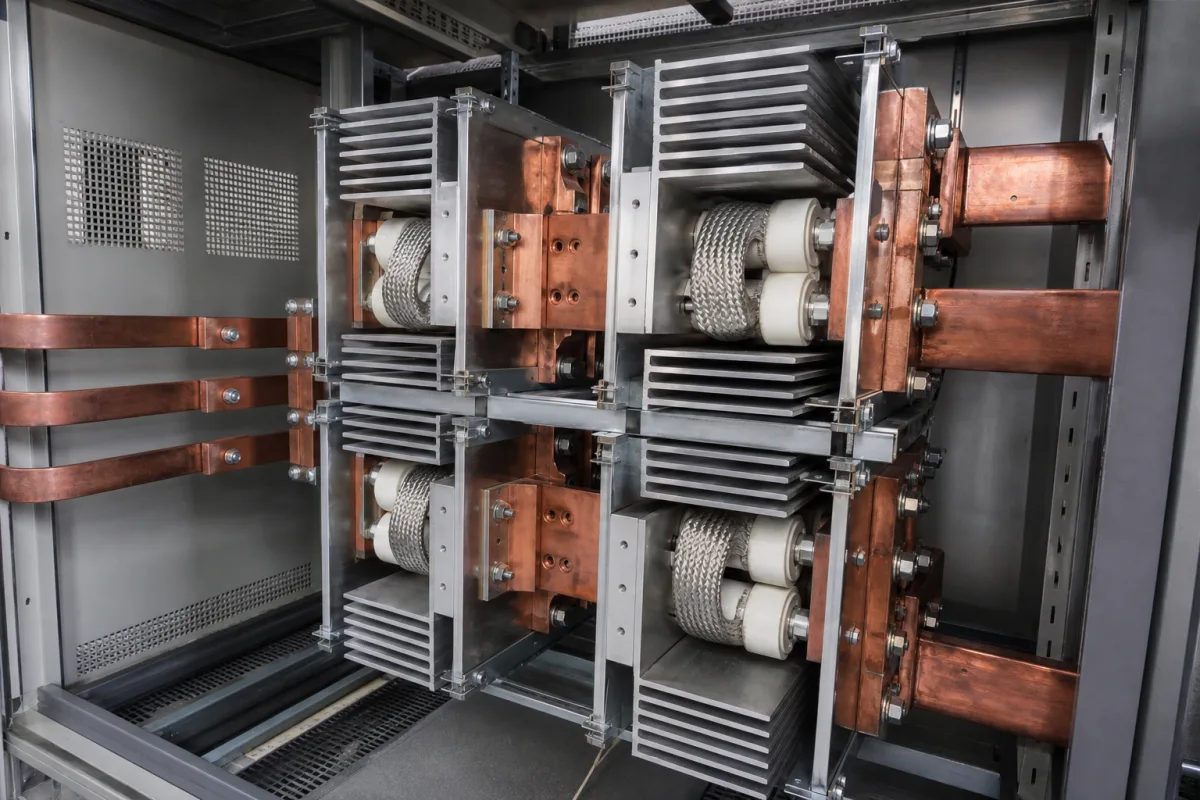

Rectifier Bridge

Based on aggregated insights from multiple verified factory profiles within the CNFX directory, the standard Rectifier Bridge used in the Electrical Equipment Manufacturing sector typically supports operational capacities ranging from standard industrial configurations to heavy-duty production requirements.

Technical Definition & Core Assembly

A canonical Rectifier Bridge is characterized by the integration of Diodes and Terminals. In industrial production environments, manufacturers listed on CNFX commonly emphasize Silicon (for semiconductor diodes) construction to support stable, high-cycle operation across diverse manufacturing scenarios.

An electrical component that converts alternating current (AC) to direct current (DC) using a configuration of diodes.

View Full Specifications Explore Manufacturing Sources

Product Specifications

Technical details and manufacturing context for Rectifier Bridge

Definition
A rectifier bridge is a critical component within a charging circuit, responsible for converting the incoming alternating current (AC) from a power source into a unidirectional direct current (DC) required for charging batteries or powering DC loads. It typically consists of four or more diodes arranged in a bridge configuration to ensure full-wave rectification, maximizing efficiency and providing a smoother DC output compared to half-wave rectifiers.
Working Principle
The rectifier bridge operates by allowing current to flow in only one direction through its diode network. During the positive half-cycle of the AC input, two diodes conduct, directing current through the load in one polarity. During the negative half-cycle, the other two diodes conduct, maintaining the same current direction through the load. This process results in a pulsating DC output, which is then often smoothed by capacitors in the circuit.
Common Materials
Silicon (for semiconductor diodes), Copper (for terminals and conductors), Epoxy resin or plastic (for encapsulation)
Technical Parameters
  • Maximum forward current (A) and peak reverse voltage (V) ratings define the bridge's capacity and voltage handling. (A, V) Customizable
Components / BOM
  • Diodes
    Semiconductor devices that allow current flow in one direction only, forming the core of the rectification process.
    Material: Silicon or other semiconductor material
  • Terminals
    Connection points for AC input and DC output wires.
    Material: Copper or brass
  • Encapsulation
    Protects the internal diodes and connections from environmental factors and provides electrical insulation.
    Material: Epoxy resin, plastic, or ceramic
Engineering Reasoning
Input AC voltage: 85-265 VAC, 47-63 Hz; Output DC voltage: 1.2×VAC(rms) to 1.4×VAC(rms); Current rating: 1-35 A; Junction temperature: -55°C to +150°C
Peak Inverse Voltage (PIV) exceeding diode rating by 15%; Junction temperature exceeding 175°C; Forward current exceeding 1.5×rated current for >10 ms
Design Rationale: Thermal runaway due to P-N junction breakdown at 175°C; Avalanche breakdown at PIV > diode rating; Electromigration at current densities > 10^6 A/cm²
Risk Mitigation (FMEA)
Trigger Input voltage transient exceeding 400 Vpk for >100 μs
Mode: Catastrophic diode avalanche breakdown with short-circuit failure
Strategy: Metal Oxide Varistor (MOV) with 275 V clamping voltage and 6000 A surge rating
Trigger Continuous load current exceeding 1.25×rated current for >30 minutes
Mode: Thermal runaway leading to junction temperature >175°C and bond wire failure
Strategy: Current-limiting fuse with 1.35×rated current trip point and thermal derating to 80% at 40°C ambient

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for Rectifier Bridge.

silicon rectifier bridge for industrial use high current rectifier bridge diodes epoxy encapsulated AC to DC converter copper terminal electrical rectifier three phase bridge rectifier module

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Charging Circuit
View system integration details
Rectifier/Inverter Circuit
View system integration details
Rectifier / Output Stage
View system integration details

Industrial Ecosystem & Supply Chain DNA

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
current: Average Forward Current from 1A to 35A+ depending on package
voltage: Peak Reverse Voltage (PRV) up to 1600V, Forward Voltage Drop typically 0.7-1.2V per diode
other spec: Maximum junction temperature: 150°C, Thermal resistance: 1.5-10°C/W depending on package
temperature: -40°C to +150°C (operating), -55°C to +175°C (storage)
Media Compatibility
✓ Standard industrial power supplies ✓ Motor drive circuits ✓ Battery charging systems
Unsuitable: High-frequency switching applications (>10kHz) without proper snubber circuits
Sizing Data Required
  • Maximum input AC voltage (RMS)
  • Required DC output current
  • Peak reverse voltage requirement

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Thermal runaway due to overheating
Cause: Inadequate heat dissipation from high current loads, poor ventilation, or blocked cooling fins leading to semiconductor junction temperature exceeding maximum ratings and catastrophic failure.
Diode junction breakdown
Cause: Voltage spikes (transients) exceeding reverse voltage rating, electrostatic discharge (ESD) during handling, or manufacturing defects in semiconductor material causing short-circuit or open-circuit failure.
Maintenance Indicators
  • Audible humming or buzzing with visible arcing/sparking from bridge terminals
  • Discoloration, bubbling, or charring of the rectifier housing indicating severe overheating
Engineering Tips
  • Implement proper heat sinking with thermal interface material and ensure ambient temperature stays within datasheet specifications, using forced air cooling if necessary.
  • Install transient voltage suppression (TVS) diodes or metal-oxide varistors (MOVs) on AC input lines to clamp voltage spikes below the bridge's maximum reverse voltage rating.

Compliance & Manufacturing Standards

Reference Standards
ISO 9001:2015 Quality Management Systems IEC 60747 Semiconductor Devices EN 60747-1:2006 Semiconductor Devices - General
Manufacturing Precision
  • Forward Voltage Drop: +/-5% at rated current
  • Reverse Leakage Current: <10 μA at rated voltage
Quality Inspection
  • Thermal Cycling Test (-40°C to +125°C, 1000 cycles)
  • High-Potential (Hi-Pot) Dielectric Strength Test

Factories Producing Rectifier Bridge

Verified manufacturers with capability to produce this product in China

Add your factory

✓ 94% Supplier Capability Match Found

S Sourcing Manager from United Arab Emirates Mar 01, 2026
★★★★★
"As a professional in the Electrical Equipment Manufacturing sector, I confirm this Rectifier Bridge meets all ISO standards."
Technical Specifications Verified
P Procurement Specialist from Australia Feb 26, 2026
★★★★☆
"Standard OEM quality for Electrical Equipment Manufacturing applications. The Rectifier Bridge arrived with full certification. (Delivery took slightly longer than expected, but technical support was excellent.)"
Technical Specifications Verified
T Technical Director from Singapore Feb 23, 2026
★★★★★
"Great transparency on the Rectifier Bridge components. Essential for our Electrical Equipment Manufacturing supply chain."
Technical Specifications Verified
Verification Protocol

“Feedback is collected from verified sourcing managers during RFQ (Request for Quote) and factory evaluation processes on CNFX. These reports represent historical performance data and technical audit summaries from our B2B manufacturing network.”

8 sourcing managers are analyzing this specification now. Last inquiry for Rectifier Bridge from Poland (54m ago).

Supply Chain Compatible Machinery & Devices

Transformer Winding Machine

Industrial machine for winding copper wire onto transformer cores

Explore Specs →
Circuit Breaker Trip Unit

Protective control module for electrical circuit breakers

Explore Specs →
Circuit Breaker Arc Chute

Electrical component that extinguishes arcs in circuit breakers

Explore Specs →
Medium Voltage Switchgear Assembly Line

Automated production system for assembling medium voltage electrical switchgear.

Explore Specs →

Frequently Asked Questions

What is the main function of a rectifier bridge in electrical equipment?

A rectifier bridge converts alternating current (AC) to direct current (DC) using a configuration of diodes, enabling power supply compatibility for DC-operated components in electrical systems.

Why are silicon diodes preferred in rectifier bridges?

Silicon diodes offer high efficiency, thermal stability, and reliable performance in converting AC to DC, making them ideal for industrial applications requiring consistent power conversion.

How does epoxy resin encapsulation benefit a rectifier bridge?

Epoxy resin encapsulation provides mechanical protection, electrical insulation, and thermal management, ensuring durability and safety in various industrial environments.

Can I contact factories directly on CNFX?

CNFX is an open directory, not a transaction platform. Each factory profile provides direct contact information and production details to help you initiate direct inquiries with Chinese suppliers.
