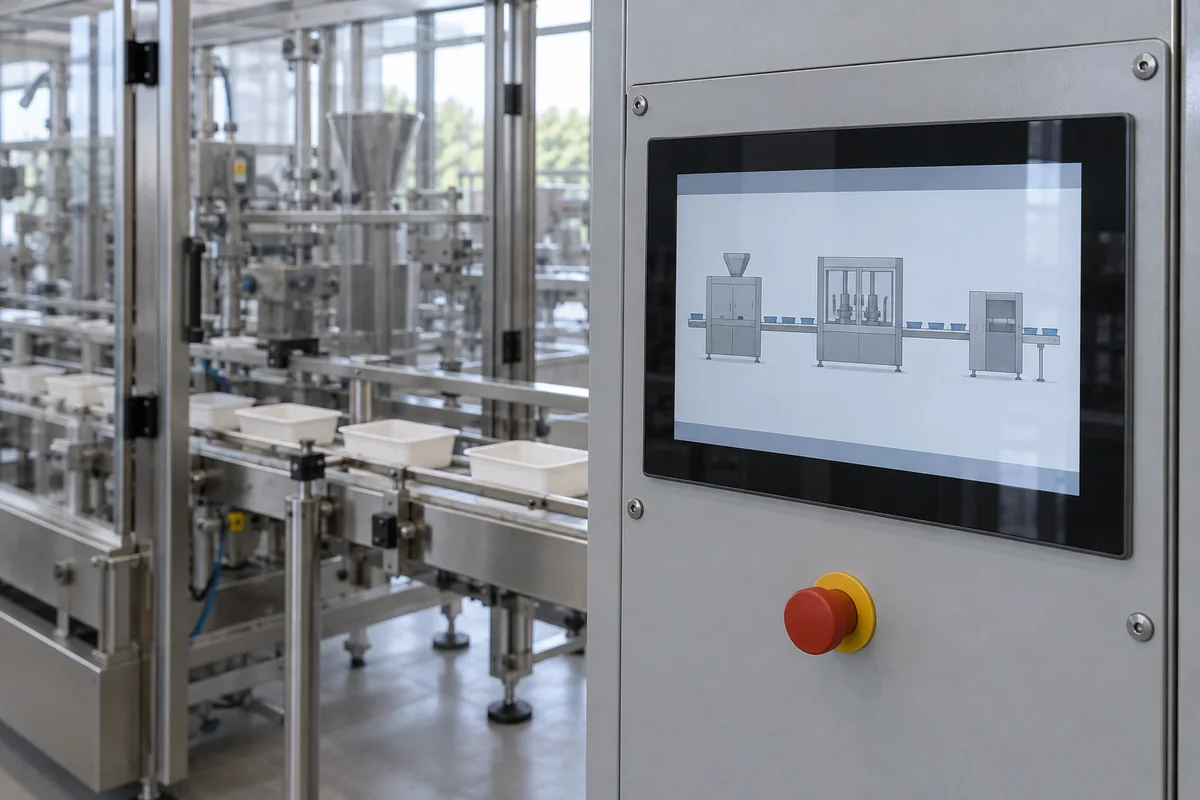

HMI Touch Screen

Based on aggregated insights from multiple verified factory profiles within the CNFX directory, the standard HMI Touch Screen used in the Machinery and Equipment Manufacturing sector typically supports operational capacities ranging from standard industrial configurations to heavy-duty production requirements.

Technical Definition & Core Assembly

A canonical HMI Touch Screen is characterized by the integration of Touch Sensor Layer and Display Module. In industrial production environments, manufacturers listed on CNFX commonly emphasize Tempered Glass construction to support stable, high-cycle operation across diverse manufacturing scenarios.

A touch-sensitive display interface that allows operators to interact with and control industrial automation systems.

View Full Specifications Explore Manufacturing Sources

Product Specifications

Technical details and manufacturing context for HMI Touch Screen

Definition
The HMI Touch Screen is a critical component within PLC Controller & HMI systems, serving as the primary user interface for monitoring, controlling, and configuring industrial processes. It enables operators to visualize real-time data, input commands, adjust parameters, and receive alerts through intuitive touch gestures, bridging the gap between human operators and automated machinery.
Working Principle
The HMI Touch Screen operates by detecting touch inputs (typically via capacitive or resistive technology) and translating them into digital signals. These signals are processed by the HMI controller, which communicates with the PLC to execute commands, retrieve data, and update the graphical display in real-time, creating an interactive control environment.
Common Materials
Tempered Glass, ITO Conductive Layer, LCD Panel, Plastic Housing
Technical Parameters
  • Screen diagonal size (inch) Standard Spec
Components / BOM
  • Touch Sensor Layer
    Detects and locates touch inputs on the screen surface
    Material: ITO-coated glass/polyester
  • Display Module
    Visualizes process data, graphics, and interface elements
    Material: LCD/LED panel with driver circuitry
  • Controller Board
    Processes touch signals and manages communication with PLC
    Material: PCB with microprocessor and memory
  • Bezel/Housing
    Protects internal components and provides mounting structure
    Material: Industrial-grade plastic or metal
Engineering Reasoning
0-50°C ambient temperature, 20-80% relative humidity (non-condensing), 0.5-2.0 m viewing distance
Capacitive touch sensor failure at >85°C junction temperature, LCD backlight failure at >70°C ambient temperature, touch accuracy degradation beyond ±1.5 mm positional error
Design Rationale: Thermal expansion mismatch between indium tin oxide (ITO) conductive layer (CTE 8.5×10⁻⁶/K) and glass substrate (CTE 9×10⁻⁶/K) causing microcracks at ΔT>35K, liquid crystal alignment disruption at >60°C due to nematic-isotropic phase transition
Risk Mitigation (FMEA)
Trigger Electrostatic discharge (ESD) exceeding 8 kV contact discharge to touch sensor
Mode: ITO conductive layer dielectric breakdown causing permanent touch dead zones
Strategy: Integrated ESD protection diodes with 0.7 V forward voltage and 5 ns response time on each sensor channel
Trigger Continuous 500 cd/m² backlight operation at >60°C ambient temperature
Mode: LED phosphor thermal quenching reducing luminous efficacy by >30% within 2000 hours
Strategy: PWM dimming with 1000:1 contrast ratio and automatic brightness reduction above 50°C ambient

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for HMI Touch Screen.

industrial HMI touch screen display machinery control touch interface automation system operator panel tempered glass HMI for equipment ITO conductive touch screen panel

Applied To / Applications

This component is essential for the following industrial systems and equipment:

PLC Controller & HMI
View system integration details

Industrial Ecosystem & Supply Chain DNA

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: Atmospheric (non-pressurized environment)
other spec: IP65/IP66 ingress protection, 1000:1 contrast ratio, 500 cd/m² brightness
temperature: -20°C to +60°C (operating), -40°C to +70°C (storage)
Media Compatibility
✓ Clean control room environments ✓ Factory automation enclosures ✓ Process monitoring stations
Unsuitable: High-pressure washdown areas or explosive atmospheres (unless specifically rated for such)
Sizing Data Required
  • Required display size (diagonal inches)
  • Mounting configuration (panel, arm, or VESA)
  • Communication protocol compatibility (e.g., Ethernet/IP, Profinet, Modbus)

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Touchscreen Calibration Drift
Cause: Electrostatic discharge, mechanical stress, or aging of capacitive sensors causing inaccurate touch response.
Display Backlight Failure
Cause: LED degradation from thermal cycling, power surges, or prolonged high-brightness operation.
Maintenance Indicators
  • Unresponsive or erratic touch response despite cleaning
  • Flickering, dimming, or complete loss of display backlight
Engineering Tips
  • Implement regular capacitive touchscreen calibration cycles and use anti-static cleaning protocols to prevent ESD damage.
  • Install surge protection on power supply lines and program automatic display dimming during idle periods to reduce thermal stress.

Compliance & Manufacturing Standards

Reference Standards
ISO 9241-307: Ergonomic requirements for display devices with touch screens ANSI/ISA-101.01: Human Machine Interfaces for Process Automation Systems CE Marking (EU Directive 2014/35/EU for Low Voltage Equipment)
Manufacturing Precision
  • Touch Accuracy: +/- 1.5mm across active display area
  • Surface Flatness: 0.2mm maximum deviation over 100mm span
Quality Inspection
  • Touch Point Calibration Test (grid pattern verification)
  • Environmental Stress Screening (temperature/humidity cycling per IEC 60068-2-30)

Factories Producing HMI Touch Screen

Verified manufacturers with capability to produce this product in China

Add your factory

✓ 93% Supplier Capability Match Found

P Procurement Specialist from Germany Feb 28, 2026
★★★★★
"The technical documentation for this HMI Touch Screen is very thorough, especially regarding technical reliability."
Technical Specifications Verified
T Technical Director from Brazil Feb 25, 2026
★★★★★
"Reliable performance in harsh Machinery and Equipment Manufacturing environments. No issues with the HMI Touch Screen so far."
Technical Specifications Verified
P Project Engineer from Canada Feb 22, 2026
★★★★★
"Testing the HMI Touch Screen now; the technical reliability results are within 1% of the laboratory datasheet."
Technical Specifications Verified
Verification Protocol

“Feedback is collected from verified sourcing managers during RFQ (Request for Quote) and factory evaluation processes on CNFX. These reports represent historical performance data and technical audit summaries from our B2B manufacturing network.”

11 sourcing managers are analyzing this specification now. Last inquiry for HMI Touch Screen from USA (1h ago).

Supply Chain Compatible Machinery & Devices

Heavy-Duty CNC Plasma Cutting Machine

Industrial machine for precision metal cutting using plasma arc technology

Explore Specs →
Automated Assembly Line System

Integrated production system for sequential component assembly operations

Explore Specs →
Automated Powder Coating System

Integrated industrial system for applying dry powder coatings to metal substrates.

Explore Specs →
Centrifugal Pump Impeller

Rotating component that transfers energy to fluid in centrifugal pumps.

Explore Specs →

Frequently Asked Questions

What materials make this HMI touch screen durable for industrial environments?

This HMI features tempered glass for impact resistance, an ITO conductive layer for reliable touch sensitivity, an LCD panel for clear display, and a plastic housing that withstands industrial conditions.

How does the touch sensor layer work in industrial automation systems?

The touch sensor layer uses ITO (Indium Tin Oxide) technology to detect operator inputs accurately, even with gloves, enabling precise control of machinery and equipment in manufacturing settings.

What components are included in the BOM for installation and maintenance?

The bill of materials includes the touch sensor layer, display module, controller board, and bezel/housing assembly, ensuring complete functionality for industrial automation system integration.

Can I contact factories directly on CNFX?

CNFX is an open directory, not a transaction platform. Each factory profile provides direct contact information and production details to help you initiate direct inquiries with Chinese suppliers.

Data Specifications verified by CNFX Industrial Index (v2.6.03) for Machinery and Equipment Manufacturing sector.
