Technical Definition & Core Assembly

A canonical Positioning Arm is characterized by the integration of Actuator and Arm Linkage. In industrial production environments, manufacturers listed on CNFX commonly emphasize Aluminum Alloy construction to support stable, high-cycle operation across diverse manufacturing scenarios.

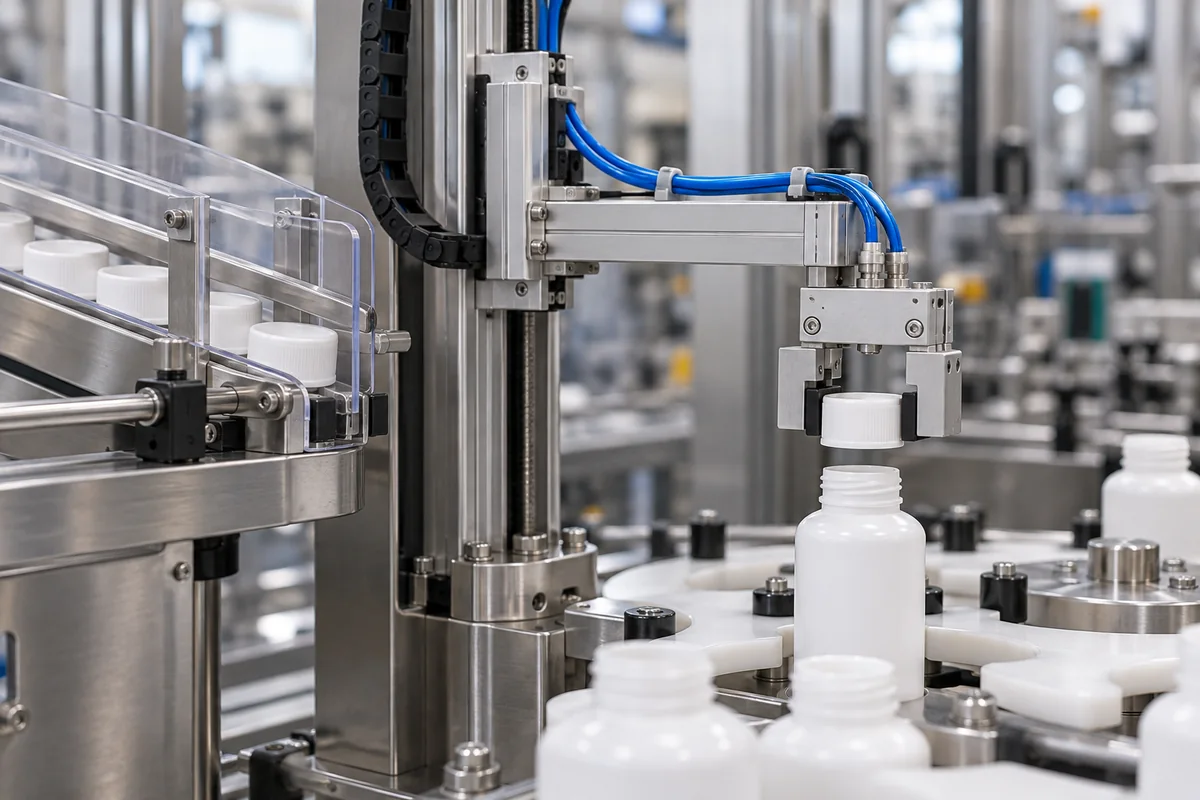

A mechanical arm component that precisely positions and manipulates lids within an automated feeding system.

View Full Specifications Explore Manufacturing Sources

Product Specifications

Technical details and manufacturing context for Positioning Arm

Definition
The Positioning Arm is a critical component of the Lid Positioning & Feeding Mechanism, responsible for accurately grasping, transporting, and placing lids onto containers or workstations. It ensures precise alignment and controlled movement during the lid handling process.
Working Principle
The arm typically operates via pneumatic, servo, or stepper motor actuation. It receives positional commands from a control system, extends/retracts or rotates to pick up a lid from a feeder or stack, moves along a programmed path, and precisely places the lid at the target location before returning to its home position.
Common Materials
Aluminum Alloy, Stainless Steel
Technical Parameters
  • Reach or stroke length of the arm (mm) Per Request
Components / BOM
  • Actuator
    Provides the motive force for arm movement (pneumatic cylinder, servo motor, etc.)
    Material: Steel, Aluminum
  • Arm Linkage
    The structural member that transfers motion and supports the end effector
    Material: Aluminum Alloy
  • End Effector
    Tool at the end of the arm that grips the lid (e.g., gripper, suction cup)
    Material: Polymer, Aluminum
  • Mounting Bracket
    Interface for attaching the arm to the main mechanism frame
    Material: Steel
Engineering Reasoning
0.1-2.0 mm positioning accuracy, 0.5-5.0 N·m torque capacity, 0.01-0.5 m/s linear velocity
Positioning error exceeds ±0.25 mm tolerance, backlash exceeds 0.05 mm, servo motor temperature exceeds 85°C, bearing vibration amplitude exceeds 0.8 mm/s RMS
Design Rationale: Backlash accumulation from gear train wear (ISO 1328-1 Class 7 tolerance degradation), thermal expansion of aluminum alloy arm segments (α=23.1×10⁻⁶/°C), ball screw preload loss below 5% of dynamic load rating, servo encoder resolution degradation below 16-bit precision
Risk Mitigation (FMEA)
Trigger Harmonic vibration at 120 Hz resonance frequency from conveyor system
Mode: Positioning accuracy degradation to ±0.4 mm due to structural resonance
Strategy: Install tuned mass damper with 2.5 kg mass and 500 N·s/m damping at arm base, increase structural stiffness to 1.8×10⁸ N/m
Trigger Servo motor encoder contamination with 5 μm particulate accumulation
Mode: Absolute position loss requiring manual homing every 8 hours
Strategy: Implement IP67-rated encoder housing with 0.3 bar positive air purge, install redundant incremental encoder with 2048 PPR resolution
