Integrated Radiotherapy Linear Accelerator Assembly System

Based on aggregated insights from multiple verified factory profiles within the CNFX directory, the standard Integrated Radiotherapy Linear Accelerator Assembly System used in the Manufacture of Irradiation, Electromedical and Electrotherapeutic Equipment sector typically supports operational capacities ranging from standard industrial configurations to heavy-duty production requirements.

Technical Definition & Core Assembly

A canonical Integrated Radiotherapy Linear Accelerator Assembly System is characterized by the integration of Automated Component Feeding System and 6-Axis Robotic Assembly Arm. In industrial production environments, manufacturers listed on CNFX commonly emphasize Stainless Steel 316L construction to support stable, high-cycle operation across diverse manufacturing scenarios.

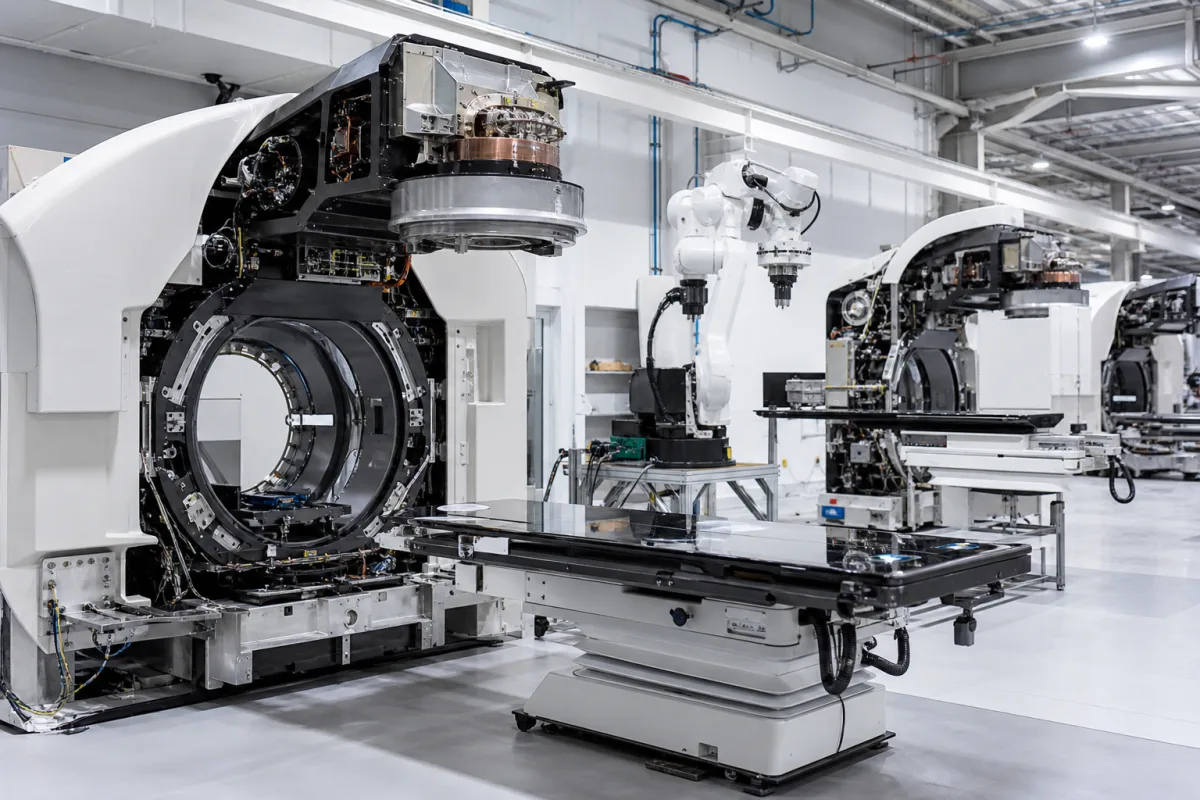

Automated production line for assembling radiotherapy linear accelerator treatment heads

View Full Specifications Explore Manufacturing Sources

Product Specifications

Technical details and manufacturing context for Integrated Radiotherapy Linear Accelerator Assembly System

Definition
A fully integrated industrial manufacturing system designed for the automated assembly of linear accelerator treatment heads used in external beam radiotherapy. This coordinated multi-module solution handles precision component integration, alignment verification, and functional testing of critical radiation delivery subsystems. The system ensures consistent quality and throughput in producing the complex mechanical and electronic assemblies that generate and shape therapeutic X-ray beams for cancer treatment applications.
Working Principle
Automated material handling transports components through sequential assembly stations where robotic arms perform precision placement, followed by automated fastening, laser alignment verification, and integrated functional testing of beam generation and collimation systems.
Common Materials
Stainless Steel 316L, Medical-Grade Aluminum Alloy, High-Purity Copper, Radiation-Shielding Tungsten Alloy
Technical Parameters
  • Complete assembly cycle time per treatment head (minutes/unit) Customizable
  • Operational uptime percentage (%) Customizable
  • Robotic component placement precision (micrometers) Customizable
Components / BOM
Engineering Reasoning
0.1-1.0 mm positioning accuracy, 0.5-2.0 m/s linear motion velocity, 10-100 N·m torque at rotary joints
Positioning error exceeding ±0.15 mm, vibration amplitude > 5 μm RMS at 100 Hz, thermal drift > 0.05 mm/°C
Design Rationale: Thermal expansion mismatch between tungsten collimator components (α=4.5×10⁻⁶/°C) and stainless steel mounting structures (α=17.3×10⁻⁶/°C) causing mechanical stress exceeding yield strength (σ_y=250 MPa) at ΔT>15°C
Risk Mitigation (FMEA)
Trigger Servo motor encoder contamination with 5 μm particulate accumulation
Mode: Position feedback loss causing 0.2 mm overshoot in multi-leaf collimator blade positioning
Strategy: IP67-rated absolute encoders with redundant optical verification and helium-purged sealing at 1.5 bar positive pressure
Trigger Harmonic vibration at 87 Hz from unbalanced rotating gantry exceeding 0.8 g RMS
Mode: Resonant fatigue cracking in beryllium window support structure after 10⁷ cycles
Strategy: Active magnetic bearing system with 0.1 μm resolution displacement sensors and adaptive PID control at 10 kHz sampling

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for Integrated Radiotherapy Linear Accelerator Assembly System.

LINAC Treatment Head Assembly Line Radiotherapy Beam Delivery System Production Line Medical Linear Accelerator Gantry Assembly System automated radiotherapy linear accelerator assembly line medical linear accelerator robotic assembly system radiation therapy equipment automated production precision assembly system for treatment heads integrated functional test station for medic

Industrial Ecosystem & Supply Chain DNA

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: Atmospheric (cleanroom pressure positive to 0.1-0.2 in. H₂O)
other spec: ISO Class 5-7 cleanroom, vibration <25 µm/s RMS, humidity 30-60% RH, electromagnetic interference <1 V/m
temperature: 15-25°C (controlled cleanroom environment)
Media Compatibility
✓ Medical-grade stainless steel components ✓ High-precision tungsten collimators ✓ Ceramic insulators and RF components
Unsuitable: Corrosive chemical processing environments or areas with conductive dust/particulates
Sizing Data Required
  • Annual production volume (units/year)
  • Treatment head model variants to be assembled
  • Maximum component weight/size for handling systems

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Beam Steering Magnet Coil Insulation Degradation
Cause: Thermal cycling and high-voltage stress causing insulation breakdown, leading to short circuits or arcing in the magnet power supply system.
Target/Window Assembly Thermal Fatigue Cracking
Cause: Repeated thermal stress from pulsed electron beam bombardment causing micro-cracks in the target or beam window, potentially leading to vacuum leaks or beam instability.
Maintenance Indicators
  • Audible high-frequency arcing or popping sounds from the waveguide or magnetron assembly indicating vacuum degradation or insulation failure
  • Visual beam symmetry distortion or intensity fluctuations on the beam profile monitor display during routine quality assurance checks
Engineering Tips
  • Implement predictive maintenance through continuous monitoring of magnet coil temperature trends and insulation resistance measurements to detect early degradation before catastrophic failure
  • Establish strict thermal management protocols including controlled cooldown cycles and maintaining optimal cooling water temperature/purity to minimize thermal stress on target assemblies

Compliance & Manufacturing Standards

Reference Standards
ISO 13485:2016 - Medical devices - Quality management systems IEC 60601-2-1:2017 - Medical electrical equipment - Part 2-1: Particular requirements for the basic safety and essential performance of electron accelerators in the range 1 MeV to 50 MeV ANSI N43.2-2017 - Radiation Safety for the Design and Use of Cabinet X-ray Systems and Other Radiation Emitting Products
Manufacturing Precision
  • Beam isocenter alignment: +/- 0.5 mm
  • Gantry rotation concentricity: +/- 0.1 mm
Quality Inspection
  • Daily QA output constancy test (e.g., beam energy, dose rate, flatness/symmetry)
  • Annual comprehensive performance verification (including mechanical, dosimetric, and safety system tests)
