Electronics Unit

This page explains how Electronics Unit is classified within Computer, Electronic and Optical Product Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

The electronic control and processing subsystem of a Mass Flow Controller (MFC).

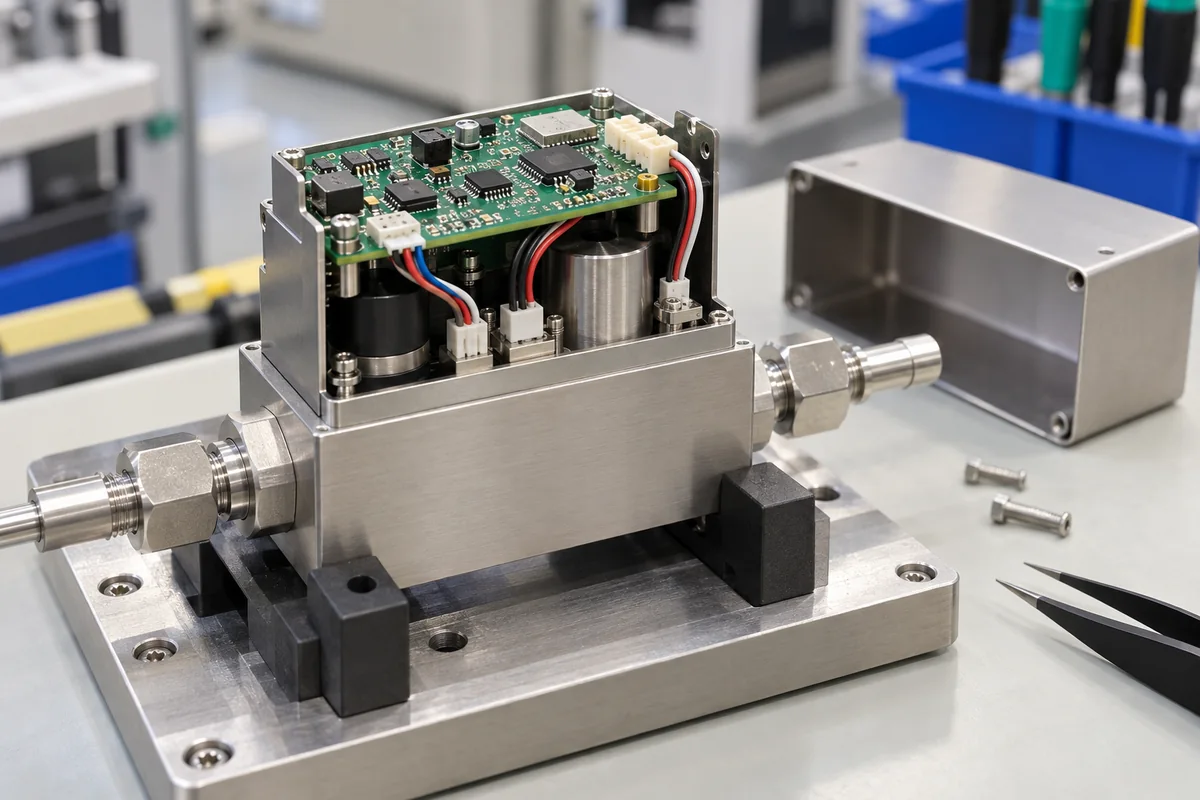

Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Electronics Unit

Definition
The Electronics Unit is the core electronic component within a Mass Flow Controller (MFC) responsible for receiving sensor signals, processing flow data, executing control algorithms, and driving the valve actuator to achieve precise gas flow regulation. It interfaces with the sensor, valve, and external control systems. The unit typically consists of a printed circuit board (PCB) populated with integrated circuits, resistors, capacitors, and a connector housing for electrical connections. It operates on a 24 V DC supply (24 ±10%) with reverse polarity protection, consuming no more than 5 W at nominal voltage. The unit provides an analog output signal selectable via DIP switch (0–5 V DC or 4–20 mA) and supports digital communication via RS-485 or DeviceNet using the Modbus RTU protocol. Performance specifications include an accuracy of ±0.5% of setpoint (including linearity and repeatability), repeatability of ±0.1% of full scale under constant conditions, and a response time of ≤100 ms to reach 63% of the final value. The electronics are rated for an operating temperature range of -10 to 50 °C and storage temperature of -20 to 70 °C, with non-condensing humidity up to 90% RH. The housing is powder-coated aluminum with an ingress protection rating of IP40 per IEC 60529, suitable for indoor use. The unit weighs ≤1.5 kg (without cable) and has approximate dimensions of 80 x 120 x 60 mm (W x H x D). These values are directory reference ranges and must be confirmed for the specific model and application with the legal manufacturer or supplier.
Working Principle
The unit receives an analog or digital signal from the flow sensor (e.g., a thermal sensor). Its microprocessor or dedicated circuitry processes this signal, compares it to a user-defined setpoint, calculates the required valve position using a control algorithm (typically PID), and outputs a control signal (e.g., current, voltage, or digital command) to the valve actuator to adjust the flow.
Common Materials
Printed Circuit Board (PCB), Electronic Components (ICs, resistors, capacitors), Connector Housing
Technical Parameters
ParameterTypical rangeNotes & selection driver
Supply Voltage24 ±10% V DCReverse polarity protected
Power Consumption≤5 WAt nominal voltage
Analog Output Signal0–5 or 4–20 V DC / mASelectable via DIP switch
Digital CommunicationRS-485 or DeviceNetModbus RTU protocol
Accuracy±0.5 % of setpointIncludes linearity and repeatability
Repeatability±0.1 % of full scaleUnder constant conditions
Response Time≤100 msTo 63% of final value
Operating Temperature-10–50 °CElectronics only
Storage Temperature-20–70 °CNon-condensing
Humidity0–90 % RHNon-condensing
Ingress ProtectionIP40For indoor useIEC 60529
Housing MaterialAluminumPowder coated
Weight≤1.5 kgWithout cable
Dimensions (W x H x D)80 x 120 x 60 mmApproximate

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM
  • Microprocessor / ASIC
    Executes the control algorithm, processes sensor data, and manages communication.
    Material: Semiconductor (Silicon)
  • Signal Conditioning Circuit
    Amplifies, filters, and converts the raw sensor signal for processing.
    Material: PCB with discrete components (op-amps, resistors, capacitors)
  • Valve Driver Circuit
    Amplifies the control signal to the power level required to drive the valve actuator (e.g., solenoid, piezoelectric).
    Material: PCB with power transistors, drivers
  • Communication Interface
    Handles the physical and protocol layers for digital communication with external controllers.
    Material: PCB with transceiver ICs, connectors
  • Power Supply Circuit
    Regulates and conditions the input voltage for internal use by other circuits.
    Material: PCB with voltage regulators, capacitors

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: 0 to 100 psig (typical), up to 150 psig (max)
flow rate: 0.1 sccm to 50 slm (depending on sensor range)
temperature: -10°C to 70°C (operating), -40°C to 85°C (storage)
slurry concentration: Not applicable (for clean gases only)
Media Compatibility
✓ Inert gases (N2, Ar) ✓ Corrosive gases (Cl2, HCl) with compatible wetted materials ✓ Reactive gases (SiH4, WF6) with proper safety protocols
Unsuitable: Particulate-laden or slurry environments
Sizing Data Required
  • Required flow range (sccm/slm)
  • Process gas composition and compatibility
  • Control accuracy and response time requirements

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Thermal stress failure
Cause: Inadequate heat dissipation leading to overheating of components, often due to poor ventilation, dust accumulation, or excessive ambient temperature, causing solder joint fatigue, semiconductor degradation, or thermal runaway.
Electrochemical migration
Cause: Conductive filament formation between circuit traces due to moisture ingress, ionic contamination, or improper conformal coating, resulting in short circuits, leakage currents, or intermittent faults.
Maintenance Indicators
  • Unusual audible buzzing, clicking, or high-pitched whining from transformers or capacitors indicating imminent component failure
  • Visible discoloration, bulging, or leakage from electrolytic capacitors or burnt odor from circuit boards signaling thermal damage
Engineering Tips
  • Implement strict environmental controls: maintain operating temperature below manufacturer specifications with adequate airflow, use desiccants or climate control in humid environments, and ensure clean, dust-free installation locations.
  • Apply preventive maintenance protocols: regularly clean internal components with appropriate anti-static methods, verify power supply stability with voltage regulators/UPS systems, and conduct periodic infrared thermography scans to identify hot spots before catastrophic failure.

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
IEC 61000-6-2 Electromagnetic Compatibility CE Marking (EU Directive 2014/35/EU)

Quoted from the published standard.

Manufacturing Precision
  • PCB Trace Width: +/-0.05mm
  • Component Placement Accuracy: +/-0.1mm
Quality Inspection
  • In-Circuit Test (ICT)
  • Environmental Stress Screening (ESS)

Manufacturers of Electronics Unit

1 company lists this product among what they make. Company figures are quoted from each company's own website; every card states where the relationship came from.

Davantech
Dongguan, Guangdong, CN
Founded 201245+ staff5,000 m²
ISO 9001:2015
Listed on the company's own website · profile compiled by CNFX from public sources

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Technical documentation
Request current drawings, revision history, and a signed specification sheet.
Manufacturing capability
Verify equipment lists, process limits, capacity, and representative production evidence.
Inspection readiness
Confirm test methods, calibrated equipment, sampling plans, and traceable reports.
Supplier transparency
Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Supply Chain Compatible Machinery & Devices

Modular Industrial Edge Computing Device

This modular industrial edge computing device is a ruggedized system designed for deployment in harsh industrial environments to perform real-time data processing, analytics, and control functions at the network edge.

Explore Specs →
Industrial Smart Camera Module

The Industrial Smart Camera Module is a compact, self-contained vision processing unit designed for integration into industrial machinery and production lines.

Explore Specs →
Surface Mount Resistor

Passive electronic component for current limiting and voltage division in circuits

Explore Specs →
Surface Mount Capacitor

A surface mount capacitor is a fundamental electronic component used for energy storage, filtering, coupling, and decoupling in electronic circuits.

Explore Specs →

Frequently Asked Questions

What is the function of the Electronics Unit in a Mass Flow Controller?

The Electronics Unit processes sensor signals, runs control algorithms, and drives the valve actuator to regulate gas flow precisely. It interfaces with the sensor, valve, and external control systems.

What are the electrical specifications of the Electronics Unit?

It requires a 24 V DC supply (24 ±10%) with reverse polarity protection, consumes ≤5 W at nominal voltage, and offers analog output (0–5 V DC or 4–20 mA) and digital communication (RS-485 or DeviceNet with Modbus RTU).

What environmental conditions can the Electronics Unit withstand?

It operates at -10 to 50 °C, stores at -20 to 70 °C, and tolerates non-condensing humidity up to 90% RH. The housing is IP40 rated for indoor use.

How accurate is the Electronics Unit?

It has an accuracy of ±0.5% of setpoint (including linearity and repeatability) and repeatability of ±0.1% of full scale under constant conditions. Response time is ≤100 ms to 63% of final value.
