Output Driver / Relay

This page explains how Output Driver / Relay is classified within Computer, Electronic and Optical Product Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

Electronic switching component that controls external devices based on humidity sensor signals

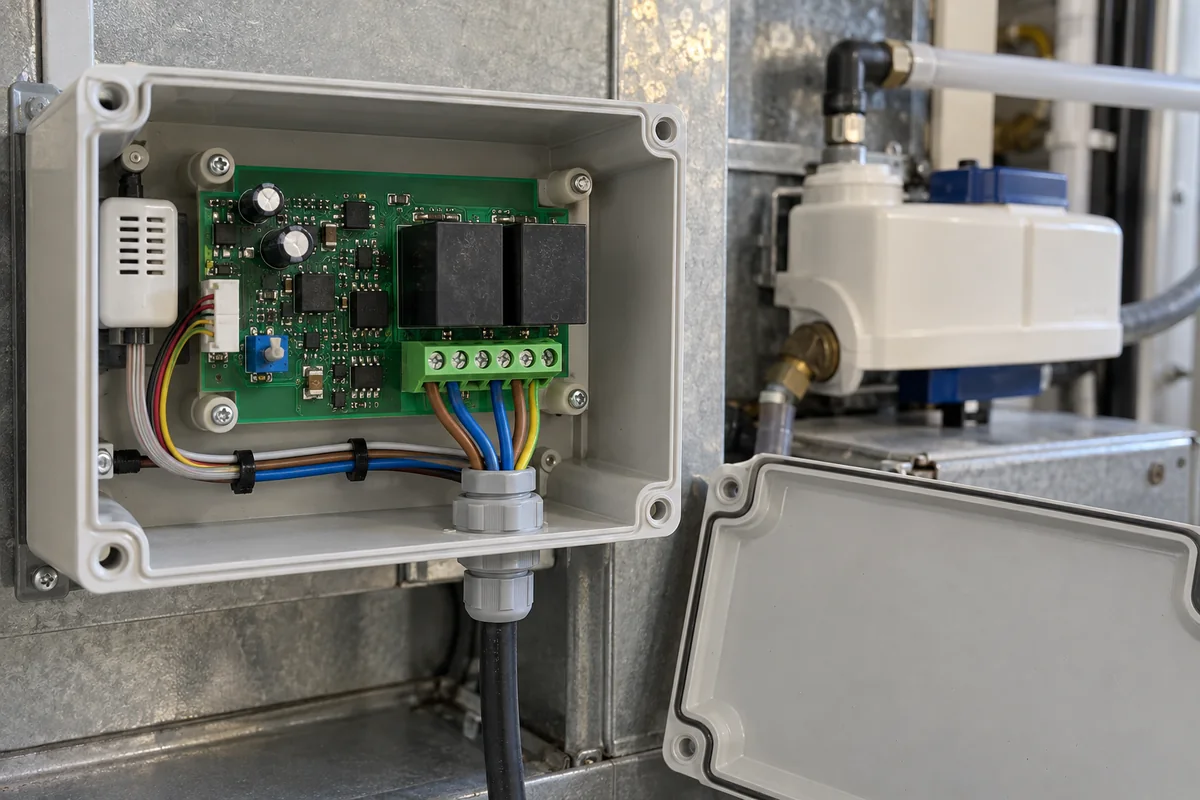

Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Output Driver / Relay

Definition
An output driver/relay is an electronic component within a humidity sensor and controller system. It receives low-power control signals from the controller's processing unit and switches higher-power external devices, such as humidifiers, dehumidifiers, ventilation fans, or alarms, on or off to maintain desired humidity levels in the controlled environment. This component acts as an interface between the low-voltage control circuitry and the high-power load, ensuring that the control logic can safely operate equipment that draws significantly more current or voltage than the controller can directly handle.

The output driver/relay is typically mounted on a printed circuit board (PCB) and comes in various forms, including electromechanical relays (EMR) and solid-state relays (SSR). Electromechanical relays use an electromagnetic coil to mechanically open or close contacts, while solid-state relays use semiconductor switching elements such as thyristors or transistors. The choice between these types depends on factors like switching speed, lifetime, noise, and the nature of the load.

Key parameters for selection include switching voltage (5–250 V AC/DC), switching current (0.1–5 A resistive load), contact rating (up to 1250 VA at 250 V AC), coil voltage (12–24 V DC), and coil power (0.36–0.45 W). Other important specifications are contact resistance (≤100 mΩ at 1 A, 6 V DC), insulation resistance (≥1000 MΩ at 500 V DC), dielectric strength (1500 V AC for 1 minute between coil and contacts), operating temperature range (-40 to 85 °C), humidity range (20–85% RH non-condensing), IP rating (IP54–IP65 per IEC 60529), mechanical life (≥10^7 operations no load), electrical life (≥10^5 operations at rated load), and weight (10–30 g typical for PCB mount).

These values are typical reference ranges and must be verified for the specific model and application. Always consult the manufacturer's datasheet and confirm compliance with relevant standards before procurement or installation.
Working Principle
When the humidity controller detects that humidity levels deviate from the setpoint, it sends a low-voltage control signal to the output driver/relay. The relay uses electromagnetic induction (in electromechanical relays) or semiconductor switching (in solid-state relays) to close or open a separate, higher-power circuit that controls the external humidity-modifying equipment. This isolation allows the low-power control electronics to safely switch high-power loads without direct electrical connection.
Common Materials
Copper coil, Electrical contacts, Plastic housing, Semiconductor materials
Technical Parameters
ParameterTypical rangeNotes & selection driver
Switching Voltage5–250 V AC/DCMaximum voltage across contacts
Switching Current0.1–5 AResistive load; derate for inductive
Contact Rating1250 VAMax apparent power at 250 V AC
Coil Voltage12–24 V DCNominal coil voltage
Coil Power0.36–0.45 WTypical power consumption
Contact Resistance≤100 Initial value at 1 A, 6 V DC
Insulation Resistance≥1000 Between coil and contacts at 500 V DC
Dielectric Strength1500 V AC1 minute between coil and contacts
Operating Temperature-40–85 °CAmbient temperature range
Humidity Range20–85 % RHNon-condensing
IP RatingIP54–IP65Depends on enclosureIEC 60529
Mechanical Life≥10^7 operationsNo load
Electrical Life≥10^5 operationsAt rated load
Weight10–30 gTypical for PCB mount

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM
  • Electromagnetic Coil
    Creates magnetic field when energized to move contacts
    Material: Copper wire
  • Contacts Part
    Make or break the electrical connection in the switched circuit
    Material: Silver alloy
  • Armature Part
    Moves contacts when coil is energized
    Material: Steel
  • Spring Part
    Returns contacts to default position when coil is de-energized
    Material: Spring steel
  • Housing Part
    Protects internal components and provides mounting
    Material: Plastic
  • Semiconductor Switching Element Optional
    Switches the load electronically on solid-state versions — no coil, no moving contacts.

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
current: Up to 10A switching capacity
voltage: 5-48V DC
temperature: -40°C to +85°C
response time: <10ms
humidity range: 0-100% RH
Media Compatibility
✓ HVAC systems ✓ Industrial automation control panels ✓ Agricultural climate control systems
Unsuitable: Explosive or corrosive atmospheres without proper enclosure
Sizing Data Required
  • Load current and voltage requirements
  • Humidity sensor signal type and range
  • Environmental operating conditions

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Contact Welding
Cause: Excessive inrush current or frequent switching under load causing contacts to fuse together permanently.
Coil Burnout
Cause: Overvoltage, voltage spikes, or prolonged energization leading to insulation breakdown and open circuit.
Maintenance Indicators
  • Audible buzzing or chattering from the relay during operation
  • Visible arcing, discoloration, or overheating marks on the relay housing
Engineering Tips
  • Install snubber circuits or surge suppressors to protect against voltage transients and reduce contact arcing.
  • Implement periodic contact resistance testing and cleaning to prevent oxidation buildup and ensure reliable switching.

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
IEC 61800-5-1 Adjustable speed electrical power drive systems CE Marking (EU Machinery Directive 2006/42/EC)

Quoted from the published standard.

Manufacturing Precision
  • Output Voltage Regulation: +/-2% of rated value
  • Switching Time Consistency: +/-5% across all channels
Quality Inspection
  • Insulation Resistance Test (minimum 100 MΩ at 500 VDC)
  • Load Cycle Endurance Test (minimum 10,000 operations at rated load)

Manufacturers of Output Driver / Relay

Manufacturer profiles associated with Output Driver / Relay.

Sourcing Output Driver / Relay from China?
Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.
Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Technical documentation
Request current drawings, revision history, and a signed specification sheet.
Manufacturing capability
Verify equipment lists, process limits, capacity, and representative production evidence.
Inspection readiness
Confirm test methods, calibrated equipment, sampling plans, and traceable reports.
Supplier transparency
Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Supply Chain Compatible Machinery & Devices

Industrial IoT Gateway

The Industrial IoT Gateway is a ruggedized edge computing device designed for industrial environments.

Explore Specs →
Modular Industrial Edge Computing Device

This modular industrial edge computing device is a ruggedized system designed for deployment in harsh industrial environments to perform real-time data processing, analytics, and control functions at the network edge.

Explore Specs →
Industrial Smart Camera Module

The Industrial Smart Camera Module is a compact, self-contained vision processing unit designed for integration into industrial machinery and production lines.

Explore Specs →
Surface Mount Resistor

Passive electronic component for current limiting and voltage division in circuits

Explore Specs →

Frequently Asked Questions

What is the function of an output driver/relay in a humidity control system?

It receives low-power control signals from the humidity controller and switches higher-power external devices like humidifiers or fans on or off, enabling the controller to manage equipment that requires more power than its circuitry can directly handle.

What are the typical electrical ratings for this component?

Typical reference ranges include switching voltage 5–250 V AC/DC, switching current 0.1–5 A (resistive load), contact rating up to 1250 VA at 250 V AC, coil voltage 12–24 V DC, and coil power 0.36–0.45 W. Always verify with the manufacturer for the specific model.

How do electromechanical and solid-state relays differ?

Electromechanical relays use an electromagnetic coil to mechanically open or close contacts, while solid-state relays use semiconductor switching. Solid-state relays typically offer faster switching and longer life, but may have different thermal and load characteristics.

What environmental conditions can this component withstand?

Typical operating temperature range is -40 to 85 °C, and humidity range is 20–85% RH non-condensing. The IP rating (IP54–IP65) indicates protection against dust and water, but the actual rating depends on the enclosure used.
