Operator Interface

This page explains how Operator Interface is classified within Machinery and Equipment Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

Human-machine interface component of a speed controller that allows operators to monitor, control, and adjust motor speed parameters.

View Full Specifications Explore Manufacturing Sources

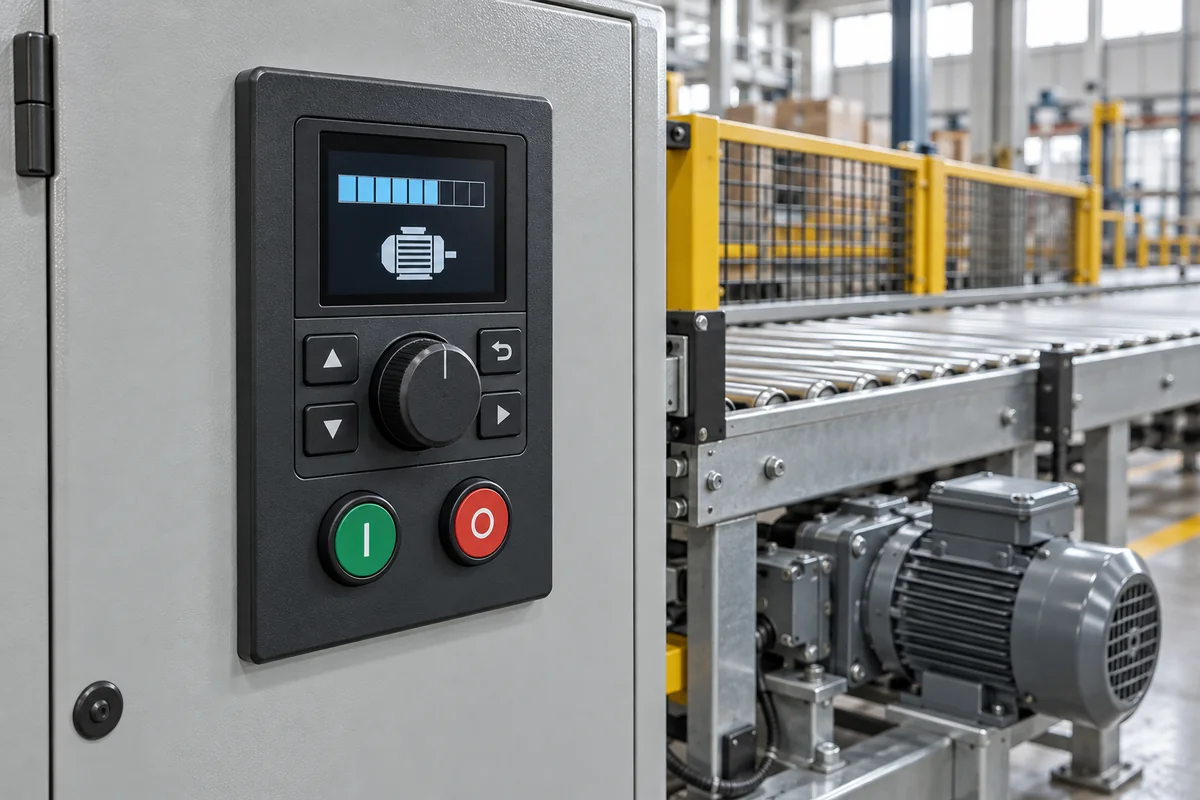

Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Operator Interface

Definition
The operator interface is the control panel or display unit integrated into speed controllers that provides the primary means for human interaction with the motor control system. It enables operators to set desired speed values, monitor real-time operating parameters (such as current speed, torque, and temperature), adjust acceleration/deceleration rates, and access diagnostic information. This interface typically includes input devices (buttons, knobs, touchscreens) and output displays (LED indicators, LCD screens, digital readouts) specifically designed for speed control applications. The interface is available in various configurations to suit different industrial environments. Display sizes range from 4.3 to 10.1 inches, with resolutions from 480×272 to 1024×600 pixels. Touch screen options include resistive and capacitive types, with capacitive screens suitable for glove operation. Input voltage is typically 24 V DC ±10%, with wide-range models available for 12–48 V DC. Power consumption varies from 5 to 15 W depending on display size and backlight. Operating temperature ranges from -10 to 50 °C, with extended range -20 to 60 °C for industrial variants; storage temperature is -20 to 70 °C. Relative humidity should be 10–90% non-condensing. Ingress protection ratings range from IP54 to IP65 per IEC 60529, with IP65 for washdown environments. Communication interfaces include RS-485, CANopen, and Ethernet, with protocol options varying by model. Backlight lifetime is typically 30,000 to 50,000 hours (LED backlight). Housing materials include ABS plastic and aluminum, with aluminum for heat dissipation and durability. Weight ranges from 0.5 to 2.0 kg depending on display size and housing material. Mounting types include panel and flush, with panel cutout dimensions varying. Materials on file include polycarbonate, ABS plastic, stainless steel, and aluminum alloy. Always verify model-specific values and standards with the legal manufacturer or supplier.
Working Principle
The operator interface receives user input commands through physical controls or touch inputs, converts these into electrical signals, and transmits them to the speed controller's processing unit. Simultaneously, it receives feedback signals from the controller's sensors and processing circuits, converting this data into human-readable visual or auditory information on the display. This bidirectional communication enables real-time monitoring and adjustment of motor speed parameters. The interface operates by polling or interrupt-driven methods, depending on the communication protocol used. It may also store configuration parameters locally for backup or quick setup. The display updates at a rate sufficient for real-time monitoring, and input latency is minimized for responsive control. The interface is designed to be robust in industrial environments, with proper shielding and filtering to ensure reliable operation.
Common Materials
Polycarbonate, ABS plastic, Stainless steel, Aluminum alloy
Technical Parameters
ParameterTypical rangeNotes & selection driver
Display Size4.3–10.1 inchLarger screens for complex parameter visualization
Input Voltage24 ±10% V DCWide-range models available for 12–48 V DC
Power Consumption5–15 WDepends on display size and backlight
Operating Temperature-10–50 °CExtended range -20–60 °C for industrial variants
Storage Temperature-20–70 °CNon-condensing environment
Relative Humidity10–90 %Non-condensing
Ingress ProtectionIP54–IP65IP65 for washdown environmentsIEC 60529
Communication InterfaceRS-485, CANopen, EthernetProtocol options vary by model
Display Resolution480×272–1024×600 pixelsHigher resolution for detailed graphics
Touch Screen TypeResistive, CapacitiveCapacitive for glove operation
Backlight Lifetime30000–50000 hLED backlight typical
Weight0.5–2.0 kgVaries with display size and housing material
Housing MaterialABS, AluminumAluminum for heat dissipation and durability
Mounting TypePanel, FlushPanel cutout dimensions vary

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM
  • Display Screen
    Visual output of speed parameters, status indicators, and diagnostic information
    Material: Glass, polycarbonate
  • Control Buttons Part
    Manual input for speed adjustment, mode selection, and parameter setting
    Material: Silicone rubber, ABS plastic
  • Mounting Bracket Part
    Secure attachment of the interface to the speed controller enclosure
    Material: Stainless steel, aluminum
  • Interface Circuit Board
    Processes input signals and drives display output, manages communication with controller
    Material: FR-4 PCB, electronic components

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Speed Controller
View system integration details
Industrial Motor Drives
View system integration details
Motor Drive Controller
View system integration details

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: N/A (enclosure rated IP65 for environmental protection)
other spec: 24V DC power supply (±10%), 0-10V/4-20mA analog input, 2A relay output rating
temperature: -10°C to +50°C (operating), -20°C to +70°C (storage)
Media Compatibility
✓ Clean industrial air environments ✓ Dry control panel installations ✓ Indoor manufacturing facilities with minimal particulate
Unsuitable: Washdown/high-pressure spray environments without additional protection
Sizing Data Required
  • Motor power rating (kW/HP)
  • Required speed control resolution (RPM or % of max speed)
  • Communication protocol requirements (Modbus, Ethernet/IP, etc.)

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Touchscreen Degradation
Cause: Repeated mechanical stress from operator interaction, chemical exposure from cleaning agents, or environmental contaminants leading to delamination, dead spots, or unresponsive areas.
Electronic Component Failure
Cause: Thermal cycling, power surges, or moisture ingress causing solder joint fatigue, capacitor failure, or corrosion on circuit boards, often exacerbated by poor environmental control.
Maintenance Indicators
  • Intermittent or unresponsive touch inputs, flickering display, or erratic cursor movement indicating imminent touchscreen or control logic failure.
  • Audible buzzing, clicking from internal components, or unusual heat emission from the housing suggesting electrical fault or cooling system compromise.
Engineering Tips
  • Implement regular, gentle cleaning with manufacturer-approved, non-abrasive solutions and soft cloths to prevent chemical damage and buildup that accelerates touchscreen wear.
  • Ensure proper environmental controls: maintain stable temperature and humidity within specified ranges, use surge protection on power inputs, and verify secure mounting to minimize vibration-induced solder joint stress.

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
ISO 9241-110:2020 (Ergonomics of human-system interaction) ANSI/ISA-101.01-2015 (Human Machine Interfaces for Process Automation Systems) IEC 61010-1:2010 (Safety requirements for electrical equipment for measurement, control, and laboratory use)

Quoted from the published standard.

Manufacturing Precision
  • Touchscreen alignment: +/-0.5mm relative to bezel
  • Enclosure IP rating sealing: 0.1mm maximum gap for IP65 compliance
Quality Inspection
  • EMC (Electromagnetic Compatibility) testing per IEC 61326-1
  • HALT (Highly Accelerated Life Testing) for mechanical durability

Manufacturers of Operator Interface

Manufacturer profiles associated with Operator Interface.

Sourcing Operator Interface from China?
Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.
Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Technical documentation
Request current drawings, revision history, and a signed specification sheet.
Manufacturing capability
Verify equipment lists, process limits, capacity, and representative production evidence.
Inspection readiness
Confirm test methods, calibrated equipment, sampling plans, and traceable reports.
Supplier transparency
Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Supply Chain Compatible Machinery & Devices

Heavy-Duty CNC Plasma Cutting Machine

The Heavy-Duty CNC Plasma Cutting Machine is a standalone industrial device designed for cutting conductive metals such as steel, stainless steel, aluminum, and copper alloys.

Explore Specs →
Automated Powder Coating System

Integrated industrial system for applying dry powder coatings to metal substrates.

Explore Specs →
Centrifugal Pump Impeller

The centrifugal pump impeller is a critical rotating component that converts mechanical energy from the motor into kinetic energy in fluid systems.

Explore Specs →
High-Precision CNC Laser Cutting Machine

Computer-controlled industrial machine using focused laser beams to cut sheet metal with micron-level accuracy.

Explore Specs →

Frequently Asked Questions

What are the typical display sizes and resolutions available?

Display sizes range from 4.3 to 10.1 inches, with resolutions from 480×272 to 1024×600 pixels. Larger screens are suitable for complex parameter visualization, while higher resolutions provide detailed graphics. Confirm the exact configuration with the manufacturer for your application.

What communication interfaces are supported?

The interface supports RS-485, CANopen, and Ethernet, with protocol options varying by model. These interfaces allow integration with various control systems. Verify the specific protocol versions and compatibility with your speed controller.

What are the environmental limits for operation and storage?

Operating temperature is -10 to 50 °C, with extended range -20 to 60 °C for industrial variants. Storage temperature is -20 to 70 °C. Relative humidity should be 10–90% non-condensing. Ingress protection ranges from IP54 to IP65, with IP65 for washdown environments. Always check the actual ratings for your model.

How should I verify the suitability of the interface for my speed controller?

You must confirm model-specific values such as input voltage (typically 24 V DC ±10%, wide-range 12–48 V DC), power consumption (5–15 W), mounting type (panel or flush), and communication protocol compatibility with the legal manufacturer or supplier. Also verify compliance with relevant standards like IEC 60529 for ingress protection.
Data basis: editorial classification, named public sources where available, and source-reviewed manufacturer records. See the editorial policy.

Data Basis
