Operator Panel

Based on aggregated insights from multiple verified factory profiles within the CNFX directory, the standard Operator Panel used in the Machinery and Equipment Manufacturing sector typically supports operational capacities ranging from standard industrial configurations to heavy-duty production requirements.

Technical Definition & Core Assembly

A canonical Operator Panel is characterized by the integration of Display Screen and Control Keys/Keypad. In industrial production environments, manufacturers listed on CNFX commonly emphasize Polycarbonate (for display covers and bezels) construction to support stable, high-cycle operation across diverse manufacturing scenarios.

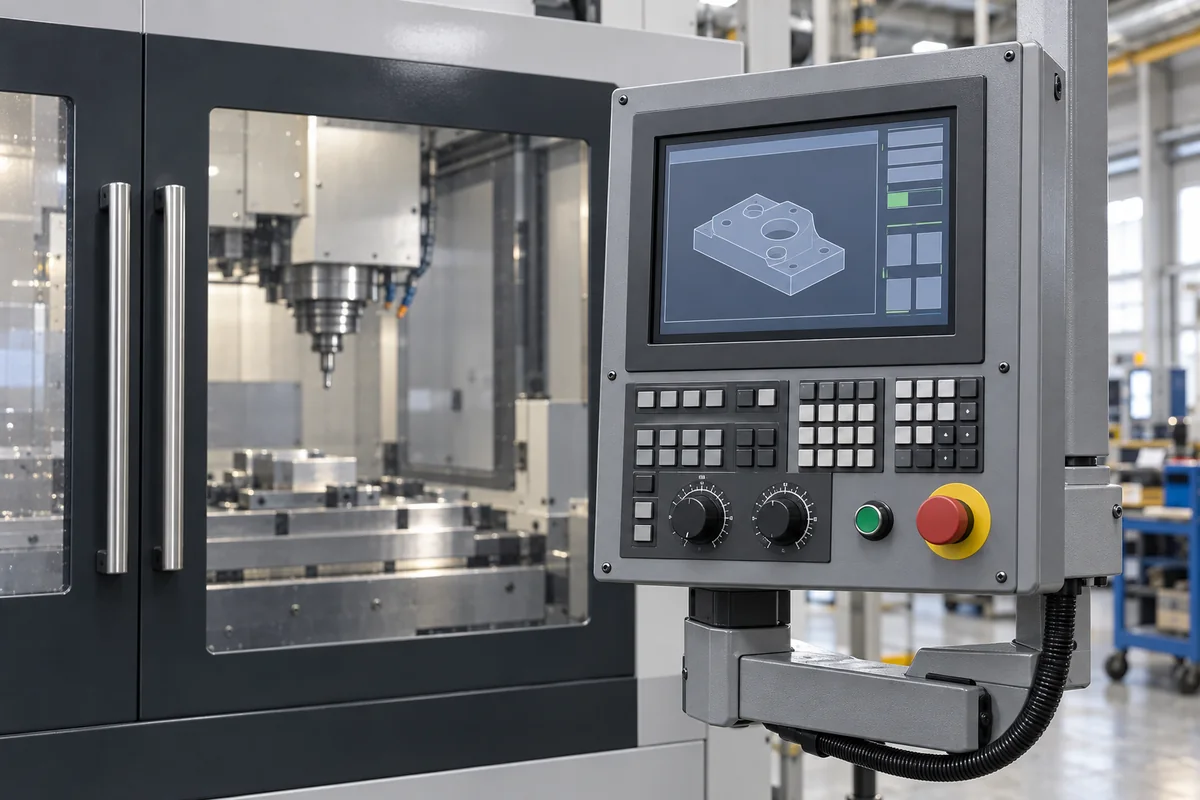

Human-machine interface component of a CNC controller that allows operators to input commands, monitor machine status, and control machining operations.

View Full Specifications Explore Manufacturing Sources

Product Specifications

Technical details and manufacturing context for Operator Panel

Definition
The operator panel is the primary interface component of a Computer Numerical Control (CNC) controller system, serving as the main point of interaction between human operators and the CNC machine tool. It typically consists of a display screen, input devices (such as buttons, keypads, or touchscreens), and status indicators. Operators use this panel to load programs, set parameters, initiate machining cycles, monitor real-time feedback (including position, speed, and error messages), and perform manual overrides or emergency stops. It translates operator inputs into control signals for the CNC's processing unit and presents machine data in an accessible format.
Working Principle
The operator panel functions as an input/output interface within the CNC controller architecture. Input devices (e.g., membrane keys, rotary encoders, touchscreens) capture operator commands, which are converted into digital signals and transmitted to the CNC's central processing unit (CPU). The CPU processes these inputs along with feedback from machine sensors. Outputs, such as graphical data, numerical readouts, and status lights, are then sent back to the panel's display and indicators, providing real-time visual feedback to the operator. Communication typically occurs via serial buses (e.g., RS-232, USB) or industrial fieldbus protocols.
Common Materials
Polycarbonate (for display covers and bezels), Stainless steel or aluminum (for housing and frames), Silicone rubber (for membrane keypads), Electronic components (PCBs, ICs, connectors)
Technical Parameters
  • Display size (diagonal measurement of the screen area) (inch) Per Request
Components / BOM
  • Display Screen
    Visual output device (LCD, TFT, or touchscreen) that shows program data, graphics, machine status, and operator prompts.
    Material: Glass, polarizing filters, liquid crystal
  • Control Keys/Keypad
    Tactile input devices (membrane, mechanical, or capacitive) for entering commands, numbers, and navigation.
    Material: Silicone rubber, polycarbonate, conductive ink
  • Enclosure/Housing
    Protective frame that houses electronic components, provides mounting points, and ensures durability in industrial environments.
    Material: Stainless steel, aluminum alloy, engineered plastics
  • Main Circuit Board
    Printed circuit board (PCB) that integrates processors, memory, communication chips, and interfaces to manage input/output signals.
    Material: FR-4 substrate, copper traces, electronic components (ICs, resistors, capacitors)
Engineering Reasoning
0-50°C ambient temperature, 85-264 VAC input voltage, 0-95% relative humidity non-condensing
Component failure occurs at >60°C ambient temperature sustained for >30 minutes, >300 VAC input voltage, or >100% relative humidity with condensation
Design Rationale: Thermal degradation of semiconductor junctions above 125°C junction temperature (following Arrhenius equation with Ea=0.7 eV), dielectric breakdown of insulation at >3 kV/mm electric field strength, electrochemical migration at >0.6 V potential difference in humid environments
Risk Mitigation (FMEA)
Trigger Electrostatic discharge (ESD) event exceeding 8 kV human body model
Mode: Gate oxide breakdown in CMOS ICs causing permanent input/output pin failure
Strategy: TVS diodes with <1 ns response time on all external connections, conductive polymer ESD shielding with surface resistivity <10^4 Ω/sq
Trigger Mechanical vibration at >5 g RMS acceleration in 10-2000 Hz frequency range
Mode: Solder joint fatigue failure following Coffin-Manson relationship with exponent n=2.5
Strategy: Conformal coating with 0.5 mm thickness, vibration isolation mounts with natural frequency <10 Hz, strain relief on all cable connections

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for Operator Panel.

CNC machine operator panel replacement industrial HMI control panel for CNC membrane keypad operator interface polycarbonate CNC control panel stainless steel operator panel housing

Applied To / Applications

This component is essential for the following industrial systems and equipment:

CNC Controller
View system integration details

Industrial Ecosystem & Supply Chain DNA

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: N/A (atmospheric pressure environment)
other spec: IP65 ingress protection, 500 cd/m² brightness, 1000:1 contrast ratio
temperature: 0°C to 50°C (operating), -20°C to 70°C (storage)
Media Compatibility
✓ CNC machine control systems ✓ Industrial automation networks (Ethernet/IP, PROFINET) ✓ PLC-based manufacturing equipment
Unsuitable: High-vibration environments without additional damping
Sizing Data Required
  • Required screen size and resolution
  • Communication protocol compatibility with existing CNC system
  • Mounting configuration and panel cutout dimensions

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Touchscreen Degradation
Cause: Mechanical wear from repeated use, chemical exposure to cleaning agents, or UV damage from sunlight exposure leading to unresponsive areas or ghost touches.
Electronic Component Failure
Cause: Thermal cycling stress, power surges, or ingress of moisture/dust causing capacitor leakage, solder joint fatigue, or short circuits in the control circuitry.
Maintenance Indicators
  • Intermittent or unresponsive touchscreen inputs despite calibration
  • Abnormal audible buzzing, clicking from internal components, or visible smoke/odor
Engineering Tips
  • Implement environmental controls: Maintain stable temperature/humidity, use anti-glare screens to reduce UV exposure, and enforce strict protocols for compatible cleaning agents.
  • Install protective electrical measures: Use surge protectors/uninterruptible power supplies (UPS), ensure proper grounding, and schedule infrared thermography inspections to detect early thermal anomalies.

Compliance & Manufacturing Standards

Reference Standards
ISO 13849-1: Safety of machinery - Safety-related parts of control systems ANSI/UL 61010-1: Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use CE Marking (EU Machinery Directive 2006/42/EC)
Manufacturing Precision
  • Panel Flatness: +/-0.5mm across surface
  • Mounting Hole Position: +/-0.2mm from nominal
Quality Inspection
  • IP Rating Test (Ingress Protection)
  • Touchscreen Functionality and Durability Test
