Isolation/Control Valve (per outlet)

This page explains how Isolation/Control Valve (per outlet) is classified within Chemical Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

A valve installed at each outlet of an inert gas supply manifold to isolate and regulate gas flow to individual downstream processes or equipment.

View Full Specifications Explore Manufacturing Sources

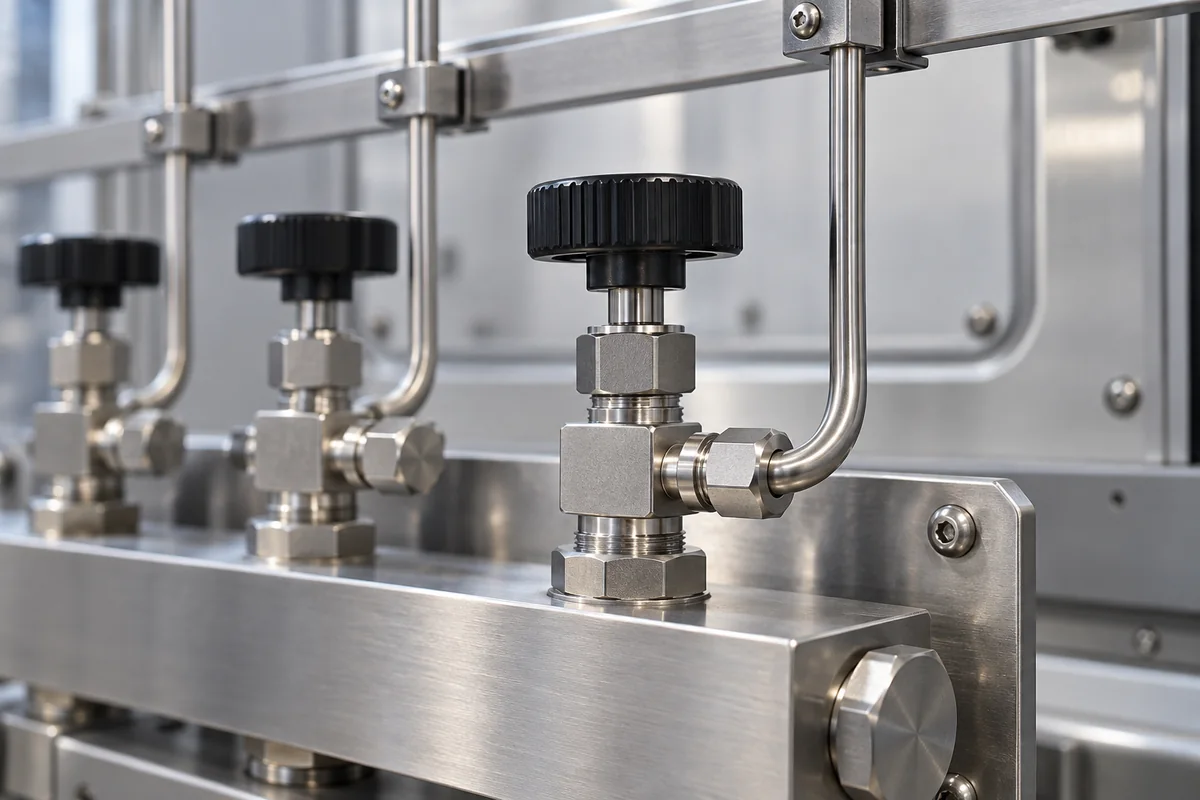

Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Isolation/Control Valve (per outlet)

Definition
This isolation/control valve is a critical component of an inert gas supply manifold, serving dual functions. In isolation mode, it provides a positive shut-off to completely stop gas flow to a specific outlet, which is essential for maintenance, safety, or process changes. In control mode, it regulates the flow rate, pressure, or direction of inert gas (such as nitrogen, argon, or carbon dioxide) to downstream equipment. Each outlet typically has its own valve, allowing independent control of multiple gas lines from a common manifold source.

The valve operates through manual, pneumatic, or electric actuation to position a closure element (such as a ball, gate, or globe) within the valve body. In isolation mode, the closure element completely blocks the flow path. In control mode, partial opening modulates flow based on process requirements. The valve interfaces with the manifold outlet connection and downstream piping.

Typical materials include stainless steel (316/304), carbon steel, brass, and PTFE for seals. Key parameters include nominal diameter (15–50 mm, ISO 6708), operating pressure (1.0–1.6 MPa), flow coefficient (Cv 2.5–20, IEC 60534-2-1), leakage rate (0.01–0.05% of rated Cv, IEC 60534-4), operating temperature (-40 to 85°C, ISO 10434), actuation time (2–10 s, IEC 60534-4), supply voltage (24 V DC ±10%, IEC 60534-5), control signal (4–20 mA, IEC 60534-5), enclosure rating (IP54–IP65, IEC 60529), body material (CF8M per ASTM A351), seat material (PTFE per ASTM D4894), and weight (5–25 kg). These values are reference ranges and must be verified for the specific model and application with the legal manufacturer or supplier. Standards listed are procurement references, not certifications.
Working Principle
The valve uses manual, pneumatic, or electric actuation to move a closure element (ball, gate, or globe) inside the body. In isolation mode, the element fully blocks the flow path, providing a tight shutoff. In control mode, the element is partially opened to modulate flow based on process signals. The valve connects to the manifold outlet and downstream piping, with actuation time and leakage rate affecting performance. Selection requires matching nominal diameter, pressure rating, flow coefficient, and materials to the process conditions.
Common Materials
Stainless steel (316/304), Carbon steel, Brass, PTFE (seals)
Technical Parameters
ParameterTypical rangeNotes & selection driver
Nominal Diameter15–50 mmMatches pipe size; larger sizes require different actuator.ISO 6708
Flow Coefficient (Cv)2.5–20 CvDetermines flow capacity at given pressure drop.IEC 60534-2-1
Leakage Rate0.01–0.05 % of rated CvClass IV–VI shutoff; higher for metal seats.IEC 60534-4
Operating Temperature-40–85 °CSeat material limits range; PTFE up to 150°C.ISO 10434
Actuation Time2–10 sFull stroke; faster for emergency shutdown.IEC 60534-4
Supply Voltage24 ±10% V DCFor electric actuator; pneumatic uses 0.4–0.8 MPa air.IEC 60534-5
Control Signal4–20 mAAnalog; HART or fieldbus optional.IEC 60534-5
Enclosure RatingIP54–IP65 IPFor electric actuator; higher for outdoor.IEC 60529
Body MaterialCF8M ASTM316 stainless steel; optional Hastelloy for corrosive.ASTM A351
Seat MaterialPTFE ASTMFor tight shutoff; metal seat for high temp.ASTM D4894
Weight5–25 kgDepends on size and actuator type.

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.
