Quality Verification Module

This page explains how Quality Verification Module is classified within Computer, Electronic and Optical Product Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

A specialized component within the production line that performs automated quality checks on medical imaging system components.

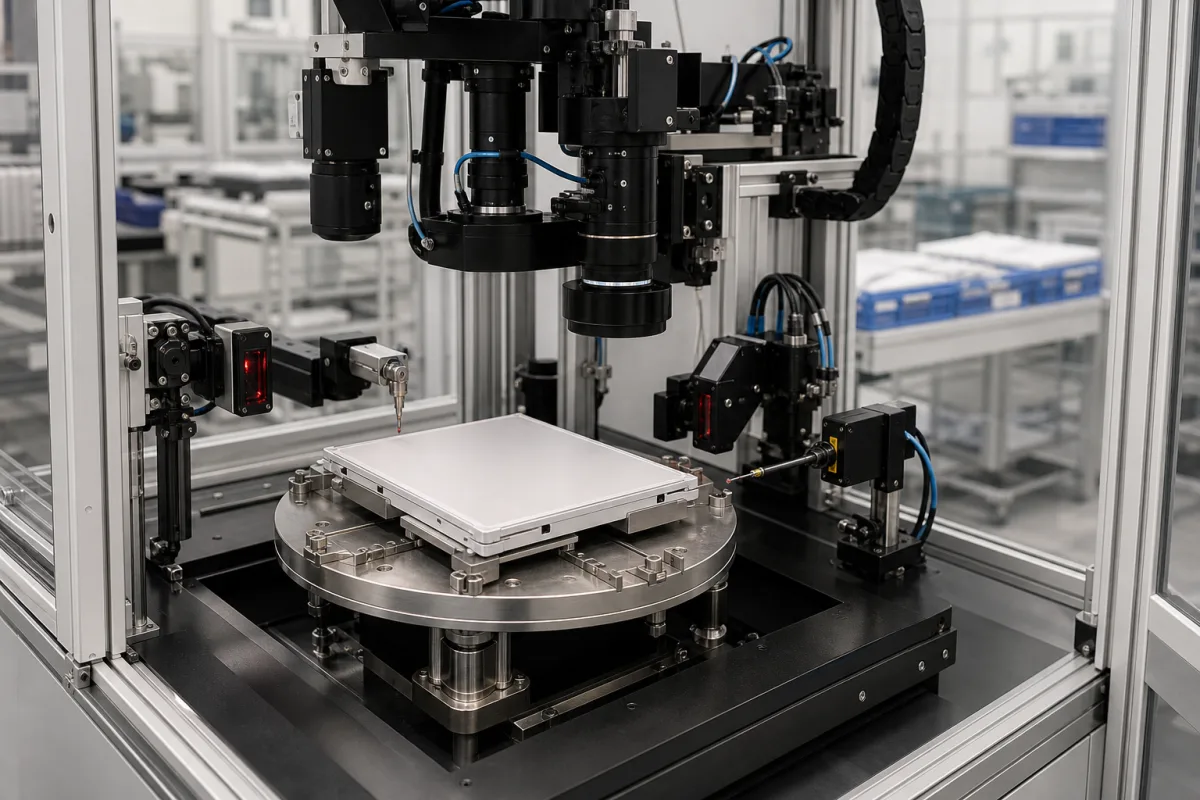

Quality Verification Module in a manufacturing environment
Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Quality Verification Module

Definition
The Quality Verification Module is a critical subsystem within the Integrated Medical Imaging System Production Line responsible for conducting automated, non-destructive testing and validation of imaging components (such as sensors, detectors, and optical elements) against predefined quality standards. It ensures that all components meet strict medical-grade specifications before assembly into final imaging devices. The module integrates optical inspection, electrical testing, and data analysis to verify component quality. Components are automatically fed into the module, where sensors measure key parameters such as resolution, sensitivity, and noise levels. The collected data is compared against tolerance thresholds, and components are classified as pass/fail or graded based on performance metrics. The module is constructed with an aluminum alloy frame, stainless steel fixtures, and polycarbonate protective covers, housing electronic components like sensors and processors. Key parameters include inspection speed (0.5–2.0 m/min), resolution (5–20 μm per ISO 12233), measurement accuracy (±0.05 mm per ISO 10360-2), repeatability (±0.02 mm per ISO 5725-1), operating temperature (10–40 °C per IEC 60068-2-1), humidity range (20–80% RH per IEC 60068-2-78), ingress protection (IP54–IP65 per IEC 60529), supply voltage (24 V DC ±10% per IEC 61131-2), power consumption (50–150 W), material (Aluminum 6061 per ASTM B221), weight (8–15 kg), and dimensions (300×200×150 mm). These values are directory reference ranges and must be confirmed for the specific model and application. The module is designed for integration into production lines, with interfaces for automated feeding and data output. Verification questions include checking calibration certificates, ensuring environmental conditions are within specified ranges, and validating that the module's settings match the component specifications. Maintenance signals include drift in measurement accuracy, increased false rejects, or communication errors. Failure boundaries include operation outside temperature or humidity ranges, voltage fluctuations, or physical damage to optical components. Always verify model-specific values and standards with the legal manufacturer or supplier.
Working Principle
The module uses a combination of optical inspection, electrical testing, and data analysis to verify component quality. Components are automatically fed into the module, where sensors measure key parameters (e.g., resolution, sensitivity, noise levels). The collected data is compared against tolerance thresholds, and components are classified as pass/fail or graded based on performance metrics.
Common Materials
Aluminum alloy (frame), Stainless steel (fixtures), Polycarbonate (protective covers), Electronic components (sensors, processors)
Technical Parameters
ParameterTypical rangeNotes & selection driver
Inspection Speed0.5–2.0 m/minHigher speeds reduce detection accuracy
Resolution5–20 μmDetermines minimum detectable defect sizeISO 12233
Measurement Accuracy±0.05 mmCritical for dimensional complianceISO 10360-2
Repeatability±0.02 mmEnsures consistent results across batchesISO 5725-1
Operating Temperature10–40 °COutside range may affect sensor calibrationIEC 60068-2-1
Humidity Range20–80 % RHCondensation can damage opticsIEC 60068-2-78
Ingress ProtectionIP54–IP65Higher rating for dusty or wet environmentsIEC 60529
Supply Voltage24 ±10% V DCVoltage outside range may cause malfunctionIEC 61131-2
Power Consumption50–150 WAffects cooling and energy costs
MaterialAluminum 6061Corrosion-resistant and lightweightASTM B221
Weight8–15 kgAffects mounting and handling
Dimensions (L×W×H)300×200×150 mmMust fit in production line layout

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM
  • Optical Inspection Unit
    Captures high-resolution images of components for visual defect detection
    Material: Aluminum housing with glass lenses
  • Electrical Test Fixture
    Makes electrical contact with components to measure electrical parameters
    Material: Gold-plated copper contacts
  • Data Processing Unit
    Analyzes test data and compares against quality standards
    Material: Electronic circuit boards with processors
  • Component Handler
    Automatically positions components for testing
    Material: Stainless steel with servo motors

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: Atmospheric to 1.5 bar
other spec: Flow Rate: 0.1-5 L/min, Slurry Concentration: ≤5% solids by weight
temperature: +10°C to +40°C
Media Compatibility
✓ Deionized water ✓ Isopropyl alcohol ✓ Medical-grade silicone oil
Unsuitable: Abrasive slurries with >5% solids or corrosive chemicals
Sizing Data Required
  • Component dimensions (mm)
  • Production line throughput (units/hour)
  • Required inspection resolution (microns)

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Sensor drift or calibration loss
Cause: Environmental factors (temperature fluctuations, humidity, vibration) degrading sensor accuracy over time, leading to incorrect quality measurements.
Mechanical wear in actuation components
Cause: Repeated cycling of moving parts (e.g., pneumatic cylinders, linear guides) causing friction, fatigue, and eventual failure, disrupting module operation.
Maintenance Indicators
  • Inconsistent or erratic measurement readings during quality checks
  • Unusual noises (grinding, clicking, or hissing) during module operation
Engineering Tips
  • Implement a scheduled calibration and verification program using certified reference standards to maintain measurement accuracy.
  • Establish a preventive maintenance routine including lubrication of moving parts, inspection of seals, and replacement of wear components based on cycle counts.

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
ANSI/ASQ Z1.4 Sampling Procedures and Tables for Inspection by Attributes DIN EN ISO 2768-1 General Tolerances

Quoted from the published standard.

Manufacturing Precision
  • Bore Diameter: +/-0.02mm
  • Surface Flatness: 0.1mm per 100mm
Quality Inspection
  • Dye Penetrant Test for Surface Defects
  • Coordinate Measuring Machine (CMM) Dimensional Verification

Manufacturers of Quality Verification Module

Manufacturer profiles associated with Quality Verification Module.

Sourcing Quality Verification Module from China?
Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.
Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Share this page
Technical documentation
Request current drawings, revision history, and a signed specification sheet.
Manufacturing capability
Verify equipment lists, process limits, capacity, and representative production evidence.
Inspection readiness
Confirm test methods, calibrated equipment, sampling plans, and traceable reports.
Supplier transparency
Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Supply Chain Compatible Machinery & Devices

Industrial Smart Camera Module

The Industrial Smart Camera Module is a compact, self-contained vision processing unit designed for integration into industrial machinery and production lines.

Explore Specs →
Surface Mount Resistor

Passive electronic component for current limiting and voltage division in circuits

Explore Specs →
Surface Mount Capacitor

A surface mount capacitor is a fundamental electronic component used for energy storage, filtering, coupling, and decoupling in electronic circuits.

Explore Specs →
Surface Mount Technology (SMT) Pick-and-Place Machine

Automated machine that precisely places electronic components onto printed circuit boards.

Explore Specs →

Frequently Asked Questions

What is the purpose of the Quality Verification Module?

It performs automated, non-destructive testing and validation of imaging components (such as sensors, detectors, and optical elements) against predefined quality standards, ensuring they meet medical-grade specifications before assembly.

What parameters does the module measure?

It measures parameters like resolution, sensitivity, noise levels, and compares them against tolerance thresholds. Specific values include resolution (5–20 μm), measurement accuracy (±0.05 mm), and repeatability (±0.02 mm), among others.

What are the environmental operating limits?

The module operates within a temperature range of 10–40 °C and a humidity range of 20–80% RH. It has an ingress protection rating of IP54–IP65, depending on the configuration.

How should I verify the module's specifications?

Always confirm model-specific values and standards with the legal manufacturer or supplier. Check calibration certificates, ensure environmental conditions are within specified ranges, and validate that settings match component specifications.
