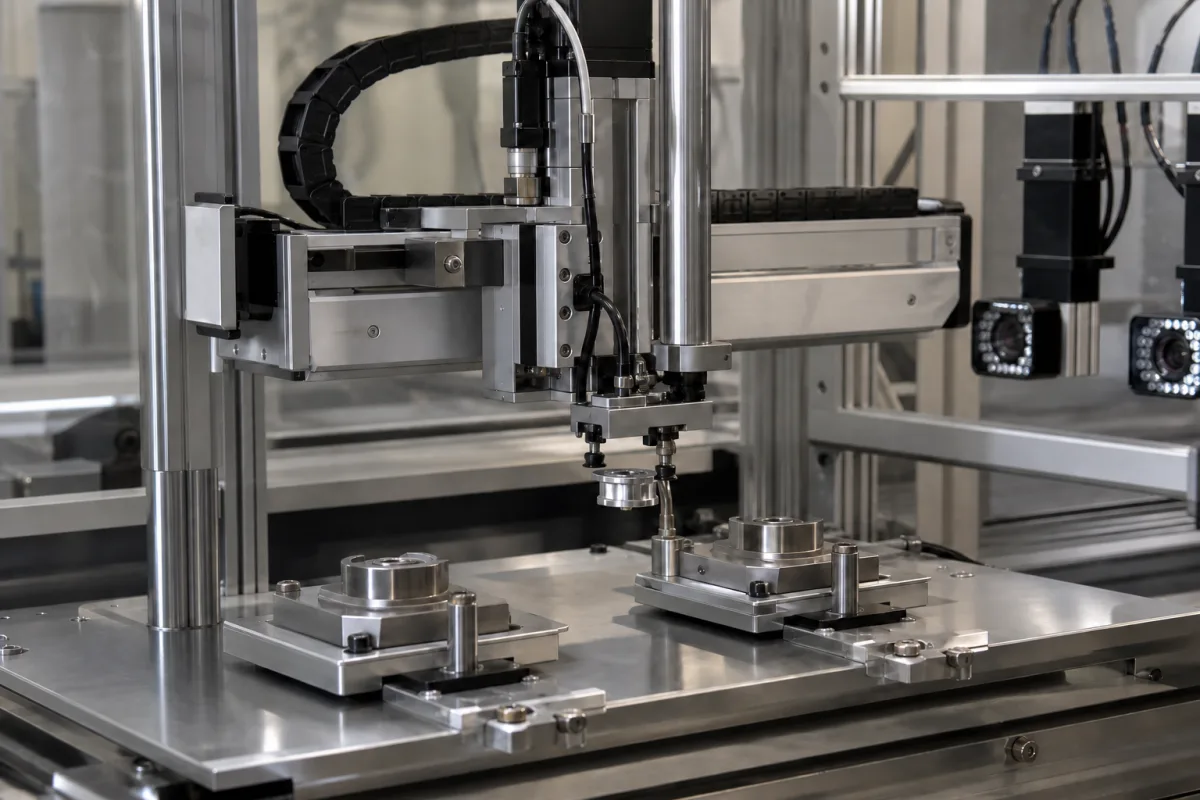

The Component Handler is a critical sub-assembly of the Quality Verification Module responsible for the automated handling of parts or components. It precisely picks, places, orients, and transfers components between stations (e.g., from a feed system to a measurement or testing fixture) to ensure accurate and repeatable positioning for quality checks such as dimensional verification, visual inspection, or functional testing. Its operation is synchronized with the module's control system to maintain process flow and integrity. The handler typically operates via programmable logic controllers (PLCs) or robotic controllers, using pneumatic, servo-electric, or linear actuators to execute movements. Common mechanisms include grippers, vacuum cups, or specialized end-effectors that secure the component. Sensors (e.g., proximity, vision) provide feedback on component presence and position, enabling precise placement and error detection (e.g., misloads, jams). The device is constructed with an aluminum alloy frame, stainless steel actuator rods and guides, and engineering plastics for gripper jaws and wear parts. Key parameters include a load capacity of 5–50 kg (ISO 10231), positioning repeatability of ±0.05 mm (ISO 9283), axis travel range of 300–1200 mm, maximum speed of 0.5–2.0 m/s, operating temperature of -10 to 50 °C (IEC 60068-2-1), ingress protection rating of IP54–IP65 (IEC 60529), supply voltage of 24 V DC ±10% (IEC 61131-2), power consumption of 0.5–2.0 kW, air supply pressure of 0.4–0.8 MPa (ISO 8573-1) for pneumatic actuators, weight of 50–200 kg, footprint dimensions of 800×600 to 1200×800 mm, and control interface options of EtherCAT or PROFINET (IEC 61158). These values are reference ranges and must be verified for the specific model and application. The Component Handler is designed for integration into automated quality verification systems, and its selection depends on component size, weight, required precision, and cycle time. Maintenance signals include unusual noise, vibration, or positioning errors, which may indicate wear or misalignment. Failure boundaries include operation outside specified temperature, load, or speed limits, which can degrade performance or cause damage. Always consult the manufacturer for model-specific specifications and compliance.
The Component Handler operates under the control of a PLC or robotic controller, which executes programmed sequences for picking, placing, and transferring components. Actuation is achieved via pneumatic, servo-electric, or linear actuators, depending on the required speed and precision. End-effectors such as grippers or vacuum cups secure the component during movement. Sensors, including proximity and vision systems, provide real-time feedback on component presence and position, allowing the controller to adjust movements and detect errors like misloads or jams. The system is synchronized with the Quality Verification Module's control system to ensure seamless integration into the inspection process.
