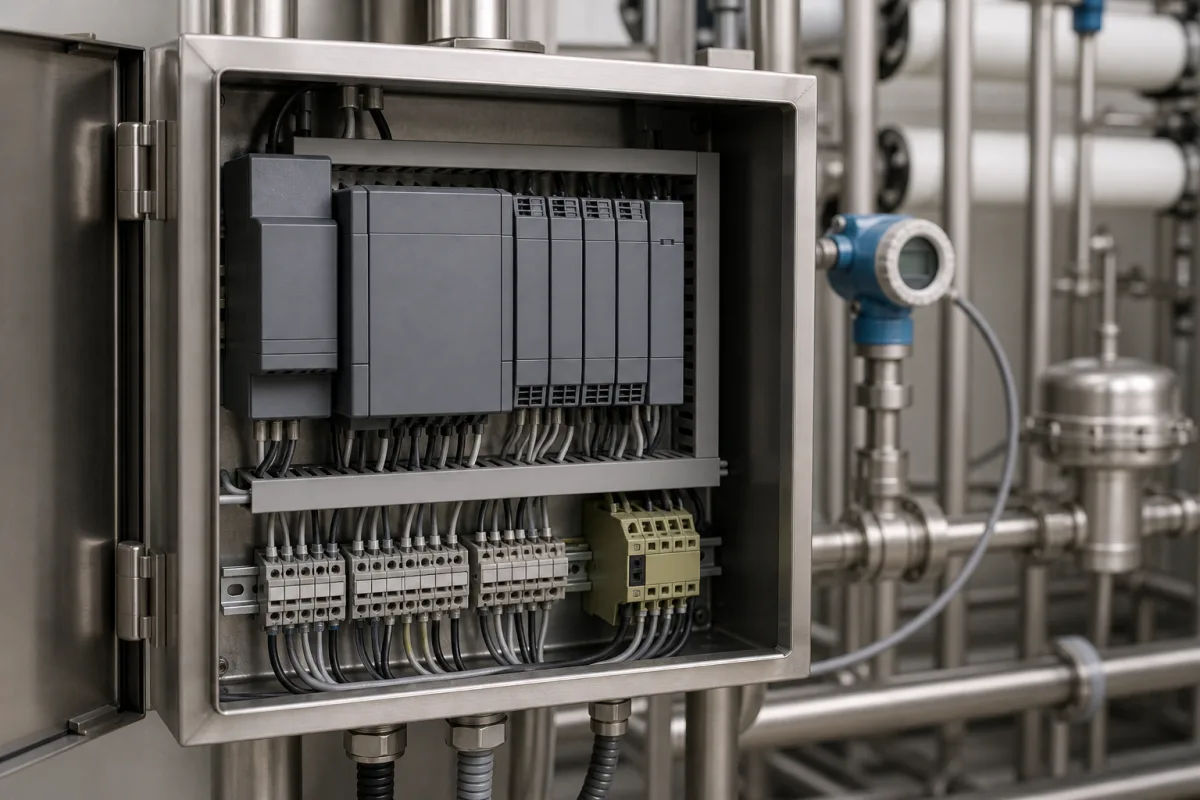

Control Unit (PLC or Controller) for Pressure Regulation Modules

Product Specifications

Technical details and manufacturing context for Control Unit (PLC or Controller)

Definition

Within a Pressure Regulation Module, the Control Unit (typically a PLC or dedicated controller) serves as the central processing component. It continuously monitors pressure sensor data, compares it against setpoints, and calculates corrective actions for actuators (like valves or pumps) to achieve precise pressure control. This unit implements control algorithms (PID, on/off, etc.), manages safety interlocks, and often provides communication interfaces for system integration. The control unit is a component part, not a standalone machine, and is designed for integration into larger systems. It typically consists of a printed circuit board (PCB) with semiconductors (ICs, transistors), housed in a plastic/polymer enclosure with metal connectors for electrical interfacing. The unit operates on a rated supply voltage of 24 V DC ±10% (per IEC 61131-2), with power consumption ranging from 10 to 20 W depending on I/O configuration. It offers 8–16 digital input channels, 8–16 digital output channels, 4–8 analog input channels (typically 4-20 mA or 0-10 V), and 2–4 analog output channels. Control accuracy is ±0.5% of full scale, and scan time is 1–10 ms per program cycle. The unit is designed for industrial environments, with an operating and storage temperature range of -40 to 85 °C (per IEC 60068-2-1/2), relative humidity of 5–95% non-condensing (per IEC 60068-2-78), and ingress protection ratings of IP54–IP65 (per IEC 60529). Weight ranges from 0.5 to 2.0 kg, and dimensions vary from 100x75x60 mm to 200x150x120 mm (W x H x D). These values are directory reference ranges; actual specifications must be confirmed with the legal manufacturer or supplier for the specific model and application. The control unit is not a safety device unless explicitly certified; safety interlocks are implemented in software but require external validation. It is essential to verify model-specific parameters, standards compliance, and environmental suitability before procurement.

Working Principle

The control unit operates by receiving analog or digital signals from pressure sensors. It processes these inputs through programmed logic or algorithms stored in its memory. Based on the difference between the measured pressure and the target setpoint (error), it calculates an output signal. This output is sent to final control elements (e.g., solenoid valves, variable frequency drives) to adjust the system and correct the pressure. Modern units often include features like auto-tuning, data logging, and network connectivity. The unit continuously cycles through scan times of 1–10 ms, executing control algorithms such as PID or on/off. It manages safety interlocks by monitoring limit conditions and shutting down outputs if necessary. The control unit requires proper grounding and shielding to avoid electromagnetic interference. It is not a standalone device; it must be integrated with sensors, actuators, and a power supply. The unit's performance depends on the accuracy of sensor inputs and the responsiveness of actuators. Failure to maintain supply voltage within the specified range can cause malfunction. The unit does not include intrinsic safety features unless specified; for hazardous areas, additional barriers or certified enclosures are required.

Common Materials

Printed Circuit Board (PCB), Semiconductors (ICs, transistors), Plastic/Polymer housing, Metal connectors

Technical Parameters

Parameter	Typical range	Notes & selection driver
Rated Supply Voltage	24 ±10% V DC	Outside this range, the PLC may malfunction.IEC 61131-2
Power Consumption	10–20 W	Depends on I/O configuration.
Digital Inputs	8–16 channels	Number of discrete input channels.
Digital Outputs	8–16 channels	Number of discrete output channels.
Analog Inputs	4–8 channels	Typically 4-20 mA or 0-10 V.
Analog Outputs	2–4 channels	Typically 4-20 mA or 0-10 V.
Control Accuracy	±0.5 % FS	Full scale accuracy of pressure control.
Scan Time	1–10 ms	Time for one program cycle.
Operating Temperature	-40–85 °C	Extended range for industrial environments.IEC 60068-2-1/2
Storage Temperature	-40–85 °C	Non-operating condition.IEC 60068-2-1/2
Relative Humidity	5–95 % RH	Non-condensing.IEC 60068-2-78
Ingress Protection	IP54–IP65	Protection against dust and water jets.IEC 60529
Weight	0.5–2.0 kg	Depends on I/O configuration.
Dimensions (W x H x D)	100x75x60–200x150x120 mm	Compact to standard form factor.

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM

Central Processing Unit (CPU)
Executes the control program and processes all data

Material: Semiconductor (silicon)
Input/Output (I/O) Modules
Interface for connecting sensors and actuators, converting signals

Material: PCB with electronic components
Power Supply Unit
Converts external power to required voltages for internal circuits

Material: PCB with transformers/regulators
Memory Module
Stores the control program, parameters, and historical data

Material: Semiconductor (flash memory, RAM)
Communication Interface
Enables data exchange with other devices or supervisory systems

Material: PCB with transceivers and connectors

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Pressure Regulation Module

View system integration details

Manufacturers of Control Unit (PLC or Controller)

Manufacturer profiles associated with Control Unit (PLC or Controller).

Sourcing Control Unit (PLC or Controller) from China?

Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.

Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Compiled and source-reviewed by the CNFX editorial team. Each manufacturer above links to the page on that company's own website where the product is listed, with the date we checked it. How we source and review · Page last updated 6 September 2026

Procurement Evaluation Criteria

A practical evidence checklist for RFQ preparation and supplier evaluation.

Technical documentation

Request current drawings, revision history, and a signed specification sheet.

Manufacturing capability

Verify equipment lists, process limits, capacity, and representative production evidence.

Inspection readiness

Confirm test methods, calibrated equipment, sampling plans, and traceable reports.

Supplier transparency

Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Frequently Asked Questions

What is the role of the control unit in a pressure regulation module?

The control unit processes pressure sensor inputs, compares them to setpoints, and calculates output signals to adjust actuators such as valves or pumps, maintaining the desired pressure.

What are the typical electrical specifications?

Rated supply voltage is 24 V DC ±10% (per IEC 61131-2), power consumption 10–20 W, digital I/O 8–16 channels each, analog inputs 4–8, analog outputs 2–4. Verify with manufacturer.

What environmental conditions can it withstand?

Operating and storage temperature -40 to 85 °C, humidity 5–95% non-condensing, ingress protection IP54–IP65. Confirm for your model.

Is the control unit certified for safety functions?

The control unit implements safety interlocks in software, but it is not inherently a safety device. For safety-related applications, additional certification and external validation are required.
