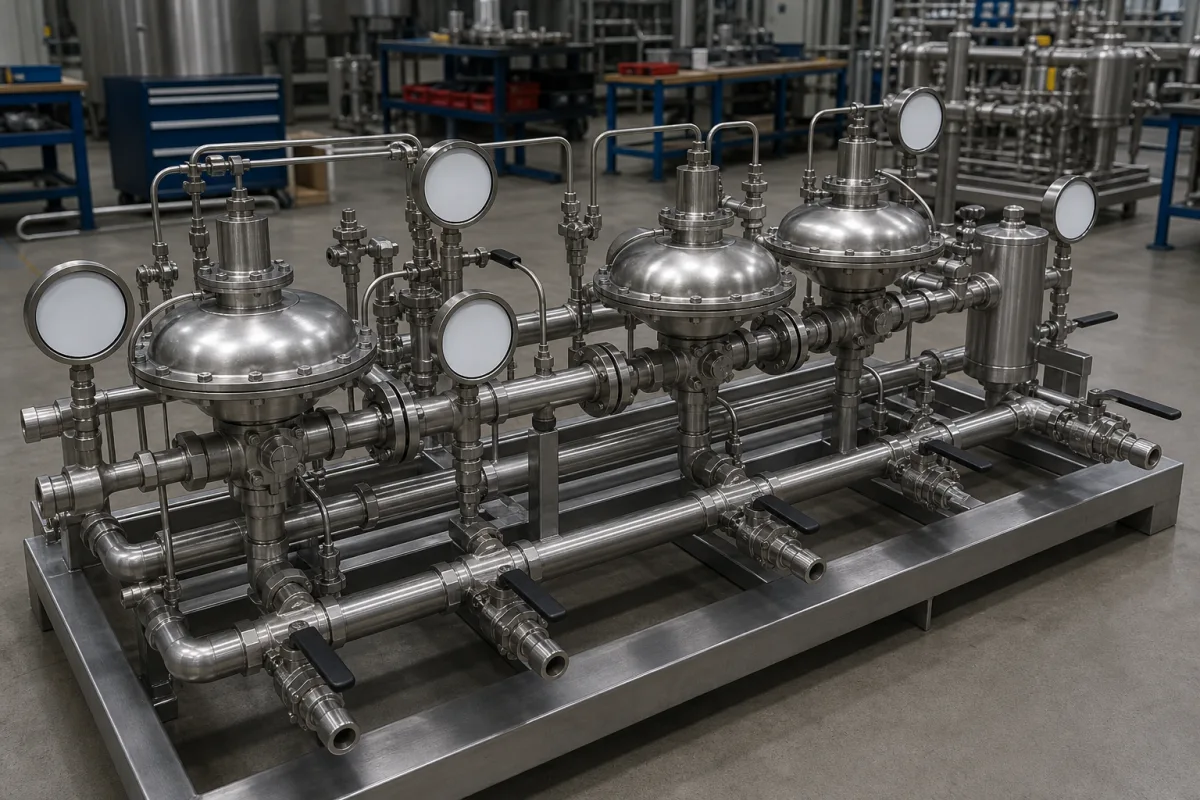

Pressure Regulation Module for Industrial Steam Systems

Product Specifications

Technical details and manufacturing context for Pressure Regulation Module

Definition

The Pressure Regulation Module is a critical component of the Modular Industrial Steam Generation System for Process Applications. It is responsible for monitoring, controlling, and stabilizing steam pressure output to ensure consistent and safe operation across various industrial processes. The module interfaces with other system modules to maintain pressure within specified tolerances, optimizing energy efficiency and process reliability. It is designed for use in steam systems where precise pressure control is essential for process quality and safety. The module operates by continuously sensing steam pressure and adjusting a regulating valve to correct deviations from a setpoint. It is available with a range of technical specifications that must be verified for the specific application. Key parameters include an operating pressure range of 1.0–1.6 MPa, a pressure setpoint range of 0.5–1.6 MPa, control accuracy of ±0.02 MPa, and flow capacity of 500–2000 kg/h at a differential pressure of 0.2 MPa. Operating temperature range is 0–200 °C for steam service, with an ambient temperature range of -20–60 °C for the control unit. The module requires a 24 V DC supply voltage (±10%) and consumes 15–30 W depending on actuator load. Ingress protection is rated IP54–IP65 per IEC 60529. Body materials include carbon steel (WCB) or stainless steel (CF8M) per ASTM A216/A351. Seat materials are PTFE for low-temperature service or Stellite for high-temperature service. Connection sizes range from DN25 to DN100 per ISO 7005, with flanged or threaded ends. Weight varies from 15 to 60 kg depending on size and material. Materials on file include stainless steel (e.g., 316L), carbon steel, and brass or bronze alloys for valve trim. For procurement, verify model-specific values and standards with the legal manufacturer or supplier.

Working Principle

The module continuously monitors steam pressure via sensors. A control unit compares the measured pressure against a setpoint. If a deviation is detected, it actuates a regulating valve (e.g., a control valve or pressure-reducing valve) to adjust the flow or release of steam, thereby correcting the pressure back to the desired level. This is typically achieved through proportional-integral-derivative (PID) control logic for precise adjustments.

Common Materials

Stainless Steel (e.g., 316L), Carbon Steel, Brass or Bronze Alloys (for valve trim)

Technical Parameters

Parameter	Typical range	Notes & selection driver
Pressure Setpoint Range	0.5–1.6 MPa	Adjustable within operating pressure
Control Accuracy	±0.02 MPa	Maintains setpoint within tolerance
Flow Capacity	500–2000 kg/h	At Δp 0.2 MPa
Operating Temperature	0–200 °C	For steam service
Ambient Temperature	-20–60 °C	For control unit
Supply Voltage	24 ±10% V DC	For actuator and controller
Power Consumption	15–30 W	Depends on actuator load
Ingress Protection	IP54–IP65	For outdoor installationIEC 60529
Body Material	WCB/CF8M	Carbon steel or stainless steelASTM A216/A351
Seat Material	PTFE/Stellite	PTFE for low temp, Stellite for high temp
Connection Size	DN25–DN100	Flanged or threadedISO 7005
Weight	15–60 kg	Depends on size and material

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM

Pressure Sensor/Transmitter
Measures the real-time steam pressure and converts it into an electrical signal for the control unit.

Material: Stainless Steel
Control Unit (PLC or Controller)
Processes the sensor signal, compares it to the setpoint, and calculates the corrective action for the actuator.

Material: Electronic Components (PCB, housing)
Regulating Valve (Actuator)
A pneumatically, electrically, or hydraulically actuated valve that modulates steam flow to adjust pressure based on signals from the control unit.

Material: Stainless Steel, Brass Alloys
Setpoint Interface
Allows operators to input or adjust the desired pressure setpoint for the system.

Material: Plastic, Metal (interface panel)

Manufacturers of Pressure Regulation Module

Manufacturer profiles associated with Pressure Regulation Module.

Sourcing Pressure Regulation Module from China?

Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.

Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Compiled and source-reviewed by the CNFX editorial team. Each manufacturer above links to the page on that company's own website where the product is listed, with the date we checked it. How we source and review · Page last updated 16 September 2026

Procurement Evaluation Criteria

A practical evidence checklist for RFQ preparation and supplier evaluation.

Technical documentation

Request current drawings, revision history, and a signed specification sheet.

Manufacturing capability

Verify equipment lists, process limits, capacity, and representative production evidence.

Inspection readiness

Confirm test methods, calibrated equipment, sampling plans, and traceable reports.

Supplier transparency

Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Frequently Asked Questions

What is the operating pressure range of the Pressure Regulation Module?

The operating pressure range is 1.0–1.6 MPa. Always verify the exact range for your specific model with the manufacturer.

What materials are used in the Pressure Regulation Module?

Materials on file include stainless steel (e.g., 316L), carbon steel, and brass or bronze alloys for valve trim. Body material can be carbon steel (WCB) or stainless steel (CF8M) per ASTM A216/A351. Seat material can be PTFE or Stellite. Confirm material suitability for your process with the supplier.

What is the control accuracy of the module?

The control accuracy is ±0.02 MPa, meaning the module maintains the setpoint within that tolerance. This is achieved through PID control logic. Verify the accuracy for your specific configuration.

What standards apply to the Pressure Regulation Module?

Relevant standards include IEC 60529 for ingress protection, ASTM A216/A351 for body material, and ISO 7005 for connection sizes. These are reference standards for verification; they do not imply certification. Always confirm compliance with the manufacturer.
