Pressing Cage (Barrel)

This page explains how Pressing Cage (Barrel) is classified within Machinery and Equipment Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

The cylindrical housing that contains the pressing mechanism in a continuous screw press for oil extraction.

View Full Specifications Explore Manufacturing Sources

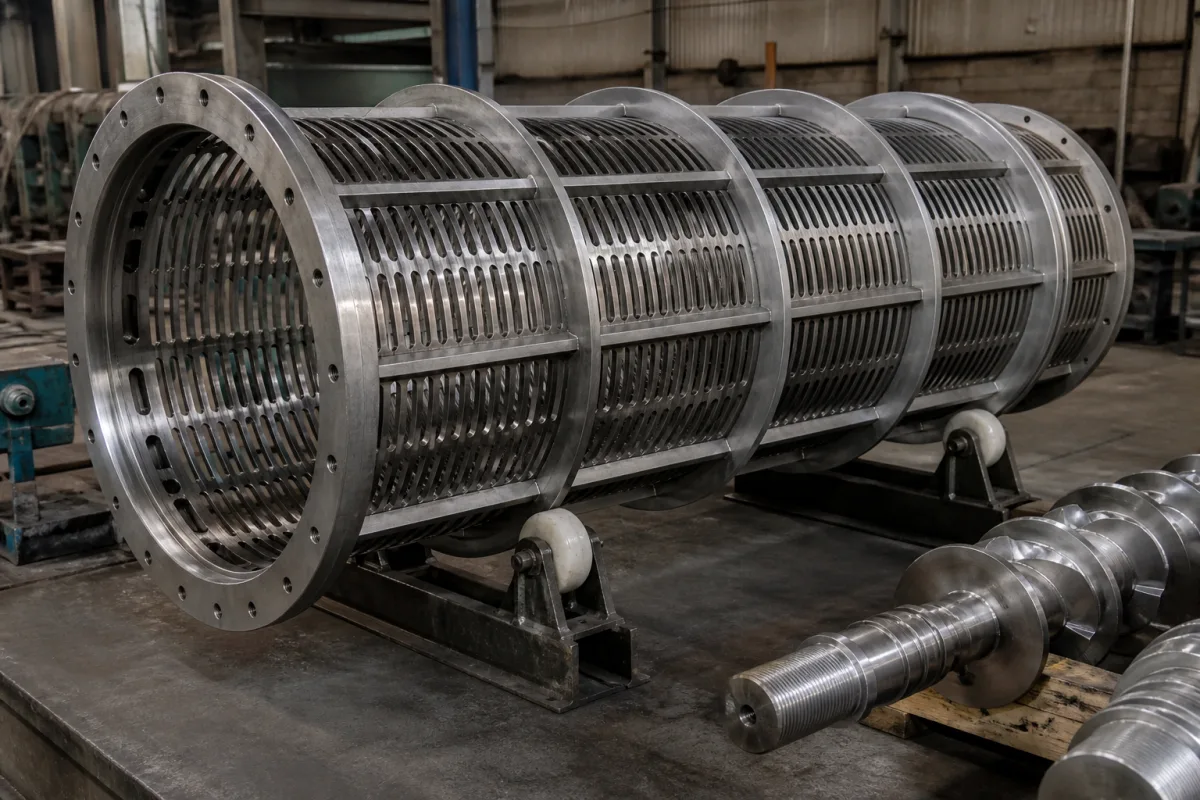

Pressing Cage (Barrel) in a manufacturing environment
Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Pressing Cage (Barrel)

Definition
The pressing cage, also known as the barrel, is the main cylindrical housing component of a continuous screw press used for oil extraction. It encloses the rotating screw shaft and provides the structural framework where oil-bearing materials are compressed under high pressure. The cage contains drainage slots or perforations that allow extracted oil to flow out while retaining the solid press cake. Constructed from high-strength alloy steel or stainless steel, the pressing cage is designed to withstand the high mechanical stresses and abrasive conditions typical of oilseed processing. Key dimensional parameters include an inner diameter ranging from 200 to 600 mm, a length from 800 to 2000 mm, and a wall thickness from 10 to 30 mm. The operating pressure range is 1.0 to 1.6 MPa, with a maximum operating temperature of 80 to 120°C. Material grades commonly specified are 304 or 316L stainless steel, with 316L recommended for corrosive environments. Surface roughness is maintained at Ra 0.8 to 1.6 μm to reduce fouling, and dimensional tolerance on the diameter is ±0.5 mm. The weight of the pressing cage varies from 150 to 800 kg, depending on size and material. Processing capacity ranges from 1 to 10 tons per hour, influenced by oilseed type and moisture content. These values are reference ranges for directory purposes and must be verified against the specific model and application with the legal manufacturer or supplier. The pressing cage is a critical component that directly affects extraction efficiency, product quality, and operational reliability. Proper selection and maintenance are essential to ensure optimal performance and longevity.
Working Principle
The pressing cage provides a confined cylindrical space where materials are progressively compressed by the rotating screw. As the screw conveys material forward, pressure builds up within the cage, forcing oil through the drainage openings in the cage walls while the solid residue continues forward for discharge. The cage's internal geometry and surface finish influence material flow and pressure distribution, affecting oil yield and cake quality. The operating pressure and temperature must be maintained within the specified ranges to ensure effective separation and to prevent damage to the cage or seals. Regular inspection for wear, blockages, or deformation is necessary to maintain performance and avoid premature failure.
Common Materials
High-strength alloy steel, Stainless steel
Technical Parameters
ParameterTypical rangeNotes & selection driver
Inner Diameter200–600 mmDetermines processing capacity
Length800–2000 mmAffects residence time and throughput
Wall Thickness10–30 mmEnsures structural integrity under pressure
Operating Temperature80–120 °CExceeding 120°C may degrade seals
Material Grade304/316L316L for corrosive environmentsASTM A240
Surface RoughnessRa 0.8–1.6 μmSmooth finish reduces foulingISO 4287
Tolerance (Diameter)±0.5 mmEnsures proper fit with screwISO 2768-m
Weight150–800 kgAffects handling and installation
Capacity1–10 t/hDepends on oilseed type and moisture
