Technical Definition & Core Assembly

A critical component of concrete paving equipment that levels, compacts, and finishes freshly placed concrete to specified thickness and surface smoothness.

View Full Specifications Explore Manufacturing Sources

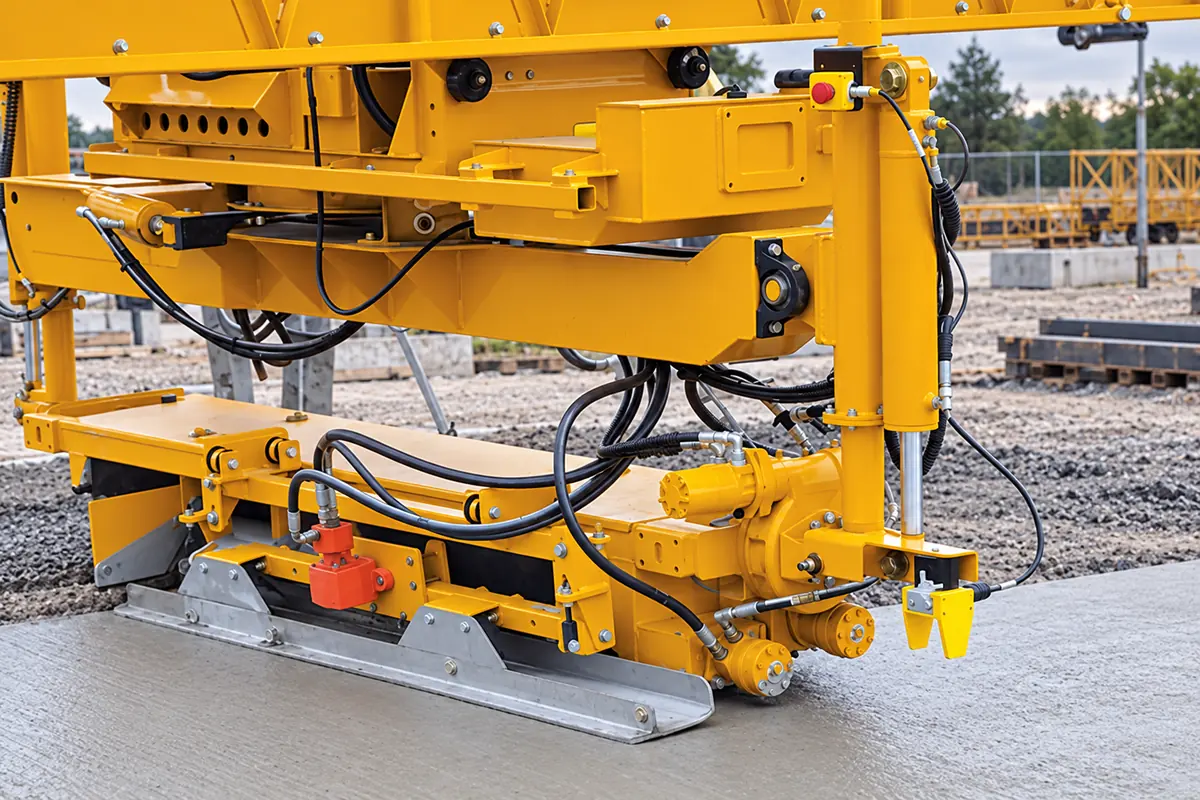

Screed assembly in a manufacturing environment
Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Screed assembly

Definition
The screed assembly is an essential part of concrete paver machinery responsible for the final finishing of concrete surfaces. It consists of a vibrating or oscillating mechanism mounted on a frame that travels over freshly poured concrete, leveling it to the desired thickness, compacting it to remove air voids, and creating a smooth, uniform surface finish. In concrete pavers, this assembly ensures precise grade control and surface quality for roads, slabs, and other concrete structures. The assembly is typically constructed from high-strength steel, with abrasion-resistant alloys and hardened wear plates used in high-wear areas to extend service life. Key parameters include a working width of 2500–9000 mm, which must be matched to the paver width; a vibration frequency of 40–70 Hz, adjustable for mix consistency; and a tamper stroke of 4–10 mm, which affects compaction density. For asphalt screeds, heating power ranges from 12–36 kW, with a heating voltage of 230–400 V AC (three-phase for large units) per IEC 60038. The crown adjustment range is -2–4% for road cross-slope, and the operating temperature range is -10–60°C, with hydraulics thickening below -10°C. The material grade for structural steel is Q345B per GB/T 1591. The weight ranges from 1500–4500 kg, depending on width and options. These values are reference ranges and must be verified for the specific model and application with the legal manufacturer or supplier. The screed assembly is a component, not a standalone machine, and its selection depends on the paver type and project requirements.
Working Principle
The screed assembly operates by vibrating or oscillating as it moves across freshly placed concrete. The vibration helps consolidate the concrete mix, eliminating air pockets and ensuring proper density. Simultaneously, the assembly's frame and leveling mechanism maintain the specified thickness and surface profile. Some screed assemblies include heating elements or temperature control systems to optimize concrete finishing in various weather conditions. The tamper stroke and vibration frequency are adjustable to suit mix consistency and desired compaction. The crown adjustment allows setting the cross-slope for road drainage. The operator must monitor operating pressure and temperature to ensure proper function. Failure to maintain these parameters can lead to poor surface finish or equipment damage.
Common Materials
High-strength steel, Abrasion-resistant alloys, Hardened wear plates
Technical Parameters
ParameterTypical rangeNotes & selection driver
Working Width2500–9000 mmMatch to paver width
Heating Power12–36 kWFor asphalt screeds
Vibration Frequency40–70 HzAdjust for mix consistency
Tamper Stroke4–10 mmAffects compaction density
Crown Adjustment Range-2–4 %For road cross-slope
Heating Voltage230–400 V ACThree-phase for large unitsIEC 60038
Operating Temperature-10–60 °CBelow -10°C hydraulics thicken
Material GradeQ345BStructural steel for frameGB/T 1591
Weight1500–4500 kgDepends on width and options

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM
  • Vibrating beam
    Provides vibration to consolidate concrete and eliminate air voids
    Material: High-strength steel
  • Leveling plate Part
    Creates smooth surface finish and controls concrete thickness
    Material: Abrasion-resistant steel
  • Mounting frame
    Supports and positions the screed assembly on the paver
    Material: Structural steel
  • Vibration motor
    Generates mechanical vibration for concrete consolidation
    Material: Steel housing with copper windings
  • Tamper
    Strokes ahead of the plate to pre-compact the mix.
  • Heating Elements Optional
    Keep the plate hot in cold-weather finishing on heated screeds.

Application & selection

Application Fit & Sizing Matrix

Operational Limits
pressure: N/A (mechanical component, not pressure-rated)
other spec: Concrete slump range: 25-100 mm, paving width: 3-12 m, vibration frequency: 100-200 Hz
temperature: 0°C to 50°C (operating ambient), concrete temperature: 10°C to 35°C
Media Compatibility
✓ Standard Portland cement concrete ✓ Self-consolidating concrete (SCC) ✓ Fiber-reinforced concrete
Unsuitable: Extremely dry or zero-slump concrete mixes
Sizing Data Required
  • Required paving width (meters)
  • Desired concrete thickness (millimeters)
  • Paving speed requirement (meters/minute)

Risk, maintenance & compliance

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Wear and deformation of screed plates
Cause: Abrasive wear from aggregate contact, thermal stress from hot mix asphalt, and mechanical fatigue from vibration and loading cycles.
Hydraulic system failure (cylinder drift or leakage)
Cause: Contamination of hydraulic fluid, seal degradation due to heat and pressure, and improper alignment causing side loading on cylinders.
Maintenance Indicators
  • Excessive vibration or audible knocking during operation, indicating loose components or worn bearings
  • Visible asphalt buildup or uneven mat texture, signaling plate wear or heating system malfunction
Engineering Tips
  • Implement regular thermal imaging inspections to detect uneven heating patterns and prevent thermal stress-induced cracking
  • Establish a strict contamination control program for hydraulic systems with scheduled fluid analysis and filter replacements

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
ASTM C1042 - Standard Test Method for Bond Strength of Mortar to Masonry Units EN 13813:2002 - Screed materials and floor screeds
