Based on aggregated insights from multiple verified factory profiles within the CNFX directory, the standard Viewport used in the Machinery and Equipment Manufacturing sector typically supports operational capacities ranging from standard industrial configurations to heavy-duty production requirements.

Technical Definition & Core Assembly

A canonical Viewport is characterized by the integration of Transparent disc and Metal flange. In industrial production environments, manufacturers listed on CNFX commonly emphasize Borosilicate glass construction to support stable, high-cycle operation across diverse manufacturing scenarios.

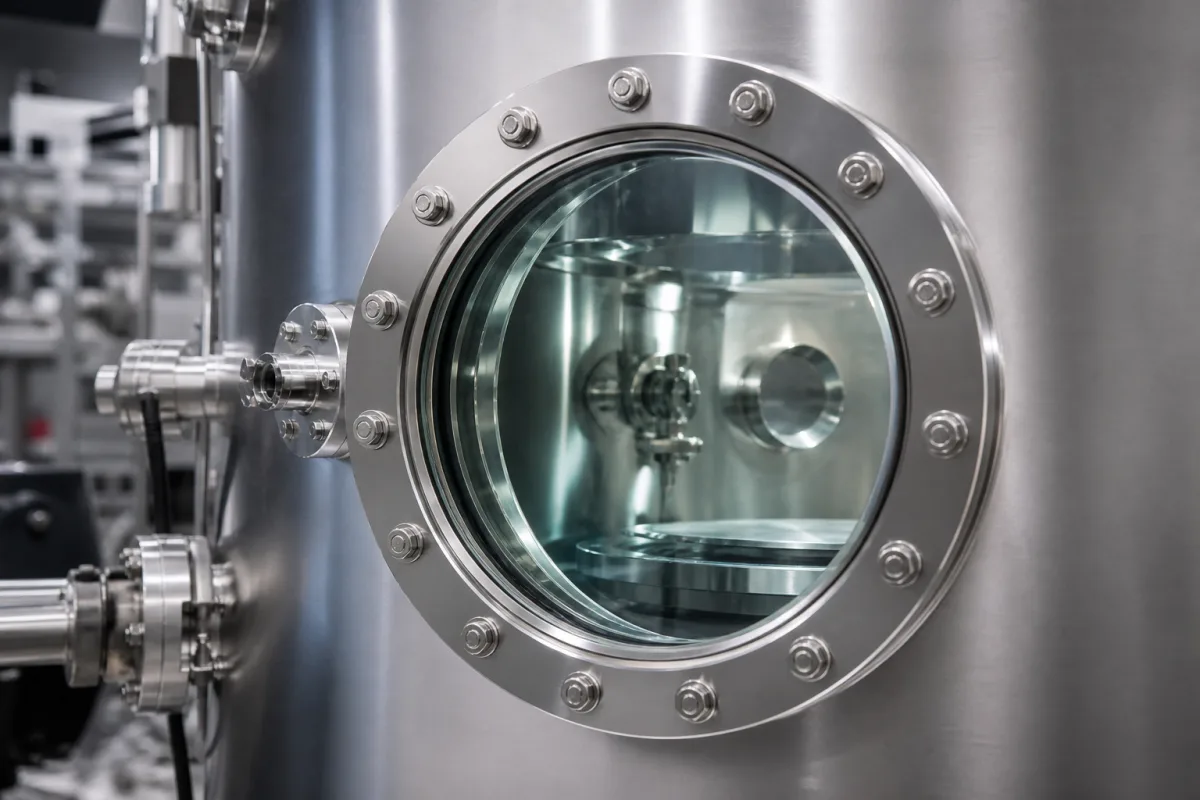

A transparent window integrated into a vacuum chamber wall to allow visual observation of internal processes without breaking vacuum.

View Full Specifications Explore Manufacturing Sources

Product Specifications

Technical details and manufacturing context for Viewport

Definition
A specialized optical component installed on vacuum chambers that provides a sealed, transparent interface for monitoring, inspection, or optical measurement of processes occurring within the vacuum environment. It maintains vacuum integrity while permitting light transmission for visual or instrumental observation.
Working Principle
The viewport consists of a transparent material (typically glass or quartz) sealed within a metal flange using specialized gaskets or bonding techniques. It withstands pressure differentials between the vacuum interior and atmospheric exterior while maintaining optical clarity. Some viewports incorporate anti-reflection coatings, heating elements to prevent condensation, or radiation shielding.
Common Materials
Borosilicate glass, Fused quartz, Sapphire, Stainless steel flange
Technical Parameters
  • Viewport diameter and thickness specifications (mm) Per Request
Components / BOM
  • Transparent disc
    Provides optical transmission while maintaining vacuum seal
    Material: Borosilicate glass or fused quartz
  • Metal flange
    Provides structural support and vacuum connection interface
    Material: Stainless steel
  • Sealing gasket
    Creates vacuum-tight seal between disc and flange
    Material: Viton, Kalrez, or copper
Engineering Reasoning
1.0e-9 to 1.0e-3 mbar (1.0e-7 to 1.0e-1 Pa)
1.0e-2 mbar (1.0 Pa) differential pressure across viewport
Design Rationale: Brittle fracture due to tensile stress exceeding 70 MPa in borosilicate glass at 1.0 Pa differential pressure, following Griffith's fracture mechanics theory
Risk Mitigation (FMEA)
Trigger Thermal shock from 300°C temperature gradient in 60 seconds
Mode: Radial crack propagation from edge seal
Strategy: Annealed borosilicate glass with coefficient of thermal expansion 3.3e-6/K and edge-polished to 0.8 μm Ra
Trigger Cyclic pressure differential of 0.5 mbar at 10 Hz
Mode: Fatigue failure at O-ring groove interface
Strategy: Conflat flange design with copper gasket and 2.5 mm minimum wall thickness at sealing surface

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for Viewport.

vacuum chamber viewport window industrial process observation viewport borosilicate glass vacuum viewport sapphire viewport for high temperature stainless steel flange viewport assembly

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Vacuum Chamber
View system integration details
Vacuum Sealed Door
View system integration details
Vacuum Degassing Chamber
View system integration details

Industrial Ecosystem & Supply Chain DNA

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: High vacuum (10^-9 Torr) to 2 atm positive pressure
other spec: Viewing diameter: 25-300mm, Material transmission: 90%+ in visible spectrum
temperature: -40°C to 200°C (typical), up to 400°C with special glass
Media Compatibility
✓ High vacuum plasma processes ✓ Chemical vapor deposition (CVD) ✓ Inert gas environments (Ar, N2)
Unsuitable: Hydrofluoric acid (HF) or strong alkali environments
Sizing Data Required
  • Chamber wall thickness
  • Required viewing diameter
  • Maximum operating pressure differential

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Seal degradation and leakage
Cause: Chemical incompatibility with process fluids leading to elastomer swelling/cracking, or improper installation causing misalignment and premature wear
Corrosion and pitting
Cause: Exposure to corrosive media (acids, chlorides) without adequate material selection, or galvanic corrosion due to dissimilar metals in contact with viewport components
Maintenance Indicators
  • Visible fluid leakage or condensation between glass layers indicating seal failure
  • Hazing, clouding, or discoloration of the viewing glass reducing visibility by more than 20%
Engineering Tips
  • Select viewport materials (gaskets, glass type, body material) specifically compatible with the process media's chemical properties and temperature ranges
  • Implement regular inspection schedule using boroscope or visual checks for early detection of seal degradation, and maintain proper torque specifications during installation to prevent over-compression

Compliance & Manufacturing Standards

Reference Standards
ISO 1101:2017 (Geometrical product specifications) ANSI/ASME Y14.5-2018 (Dimensioning and Tolerancing) CE Marking (EU Machinery Directive 2006/42/EC)
Manufacturing Precision
  • Flatness: 0.05mm per 100mm length
  • Parallelism between mounting surfaces: +/-0.1mm
Quality Inspection
  • Coordinate Measuring Machine (CMM) verification
  • Surface finish analysis (Ra measurement)

Factories Producing Viewport

Verified manufacturers with capability to produce this product in China

Add your factory

✓ 95% Supplier Capability Match Found

P Project Engineer from Brazil Jan 25, 2026
★★★★★
"Found 15+ suppliers for Viewport on CNFX, but this spec remains the most cost-effective."
Technical Specifications Verified
S Sourcing Manager from Canada Jan 22, 2026
★★★★★
"The technical documentation for this Viewport is very thorough, especially regarding technical reliability."
Technical Specifications Verified
P Procurement Specialist from United States Jan 19, 2026
★★★★★
"Reliable performance in harsh Machinery and Equipment Manufacturing environments. No issues with the Viewport so far."
Technical Specifications Verified
Verification Protocol

“Feedback is collected from verified sourcing managers during RFQ (Request for Quote) and factory evaluation processes on CNFX. These reports represent historical performance data and technical audit summaries from our B2B manufacturing network.”

14 sourcing managers are analyzing this specification now. Last inquiry for Viewport from Brazil (1h ago).

Supply Chain Compatible Machinery & Devices

Automated Assembly Line System

Integrated production system for sequential component assembly operations

Explore Specs →
Automated Powder Coating System

Integrated industrial system for applying dry powder coatings to metal substrates.

Explore Specs →
Centrifugal Pump Impeller

Rotating component that transfers energy to fluid in centrifugal pumps.

Explore Specs →
High-Precision CNC Laser Cutting Machine

Computer-controlled industrial machine using focused laser beams to cut sheet metal with micron-level accuracy.

Explore Specs →

Frequently Asked Questions

What materials are available for viewport windows in vacuum applications?

Viewports typically use borosilicate glass for standard applications, fused quartz for UV transmission, or sapphire for extreme temperature and pressure resistance.

How does a viewport maintain vacuum integrity during observation?

Viewports use precision sealing gaskets between the transparent disc and stainless steel flange, creating a hermetic seal that prevents vacuum loss while allowing visual access.

What industries commonly use vacuum chamber viewports?

Viewports are essential in semiconductor manufacturing, aerospace testing, research laboratories, and industrial coating processes where visual monitoring of vacuum processes is required.

Can I contact factories directly on CNFX?

CNFX is an open directory, not a transaction platform. Each factory profile provides direct contact information and production details to help you initiate direct inquiries with Chinese suppliers.
