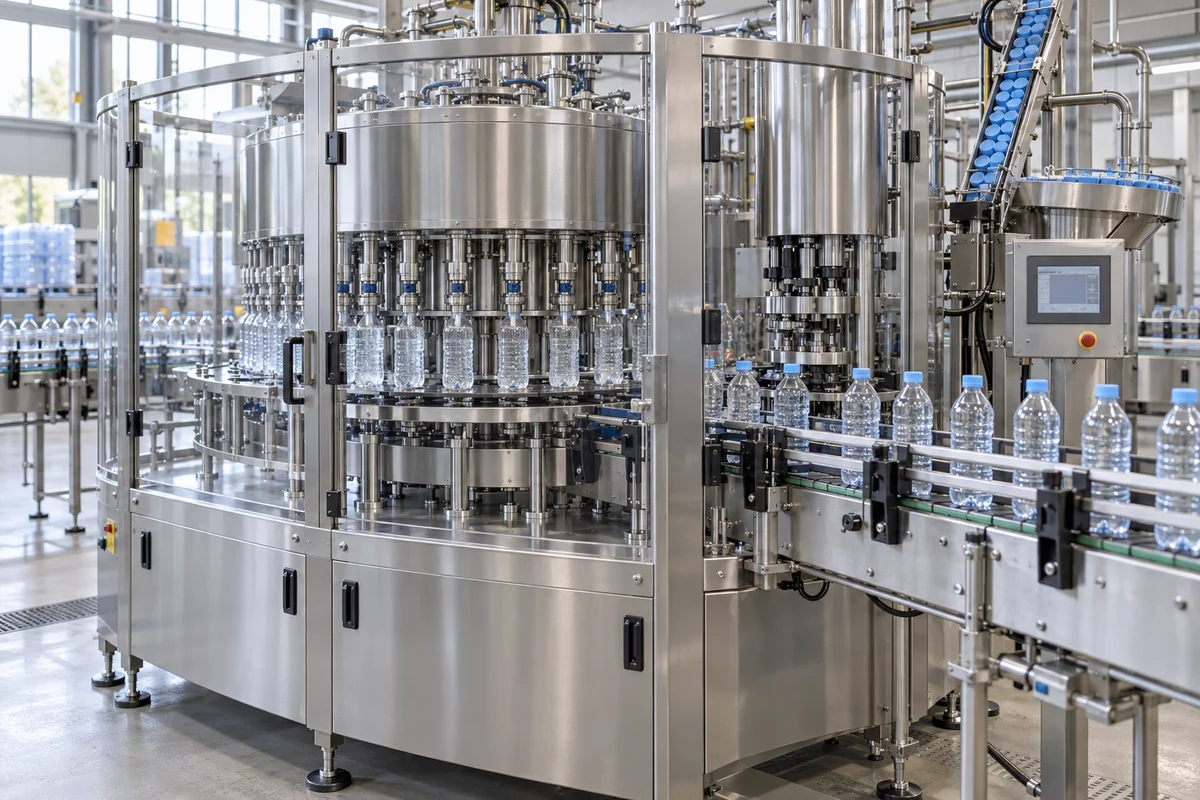

High-Speed Rotary Bottle Filling Machine

Based on aggregated insights from multiple verified factory profiles within the CNFX directory, the standard High-Speed Rotary Bottle Filling Machine used in the Non-Alcoholic Beverages Manufacturing sector typically supports operational capacities ranging from standard industrial configurations to heavy-duty production requirements.

Technical Definition & Core Assembly

A canonical High-Speed Rotary Bottle Filling Machine is characterized by the integration of Rotating Carousel and Filling Valve Assembly. In industrial production environments, manufacturers listed on CNFX commonly emphasize Stainless Steel (AISI 304/316) construction to support stable, high-cycle operation across diverse manufacturing scenarios.

Automated industrial machine for precise liquid filling of beverage containers at high production rates.

View Full Specifications Explore Manufacturing Sources

Product Specifications

Technical details and manufacturing context for High-Speed Rotary Bottle Filling Machine

Definition
A high-speed rotary bottle filling machine is a critical piece of industrial equipment in non-alcoholic beverage manufacturing lines. It automates the precise volumetric or level-based filling of liquids such as juices, soft drinks, and bottled water into PET, glass, or aluminum containers. This machine ensures consistent fill volumes, minimizes product waste, and integrates seamlessly with upstream cleaning and downstream capping systems. Its primary role is to maximize throughput and efficiency in high-volume B2B production environments, directly impacting supply chain output and operational cost.
Working Principle
Containers are fed onto a rotating carousel. As each container rotates under stationary filling valves, a pneumatic, volumetric, or gravity-feed mechanism dispenses a pre-set volume of liquid. The system uses sensors to detect container presence and control fill height or volume with precision.
Common Materials
Stainless Steel (AISI 304/316), Food-Grade Plastics, Sanitary Silicone Seals
Technical Parameters
  • Maximum theoretical output capacity (bottles/hour) Customizable
  • Volumetric tolerance per fill cycle (mL) Customizable
Components / BOM
Engineering Reasoning
0.8-1.2 bar filling pressure, 0.5-5.0 m/s linear conveyor speed, 60-120 bottles/minute throughput
Filling pressure exceeds 1.5 bar causing container deformation, conveyor speed exceeds 6.0 m/s causing bottle instability, throughput exceeds 150 bottles/minute causing valve timing misalignment
Design Rationale: Bernoulli's principle violation at >1.5 bar causing turbulent flow and container stress concentration, centrifugal force at >6.0 m/s conveyor speed exceeding bottle center of gravity stability, camshaft angular velocity limitation at >150 bottles/minute causing valve actuation phase lag
Risk Mitigation (FMEA)
Trigger Pneumatic actuator pressure drop below 0.6 bar
Mode: Incomplete valve closure causing 15-25% overfill volume deviation
Strategy: Dual redundant pressure regulators with 0.1 bar differential monitoring and automatic switchover
Trigger Encoder pulse loss exceeding 3 consecutive cycles at 100 Hz sampling
Mode: Rotary carousel position desynchronization causing ±5° angular misalignment
Strategy: Quadrature optical encoder with Hall-effect backup and 0.1° resolution validation

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for High-Speed Rotary Bottle Filling Machine.

Liquid Filling Machine Rotary Filler Bottle Filling Carousel automated rotary bottle filling machine for beverages high-speed beverage bottle filler industrial stainless steel rotary filling machine non-alcoholic PLC controlled bottle filling system beverage production sanitary rotary filler for juice and

Industrial Ecosystem & Supply Chain DNA

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: Up to 6 bar (filling pressure), 0.5-1.5 bar (air supply)
flow rate: Up to 60,000 bottles/hour (depending on bottle size)
temperature: 5°C to 40°C (operating environment), 0°C to 80°C (product contact)
viscosity range: 1-1000 cP (centipoise)
container size range: 50 ml to 5 L
slurry concentration: Not suitable for slurries - designed for homogeneous liquids only
Media Compatibility
✓ Carbonated beverages (soda, sparkling water) ✓ Still beverages (juice, water, tea) ✓ Low-viscosity dairy products (milk, cream)
Unsuitable: Abrasive slurries or particulate suspensions (e.g., fruit pulp with seeds, abrasive cleaning chemicals)
Sizing Data Required
  • Required production rate (bottles/hour)
  • Bottle size and neck diameter (mm)
  • Product viscosity and foaming characteristics

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Bearing fatigue and overheating
Cause: Inadequate lubrication, misalignment, or excessive radial loads from unbalanced rotating components leading to premature bearing failure.
Seal leakage and contamination
Cause: Wear of rotary shaft seals due to abrasive particles in the product, improper installation, or thermal cycling causing seal hardening and cracking.
Maintenance Indicators
  • Unusual high-pitched whining or grinding noise from the drive assembly indicating bearing or gear wear
  • Visible product leakage around filling nozzles or drive shaft seals, or inconsistent fill levels suggesting seal or valve failure
Engineering Tips
  • Implement precision laser alignment during installation and re-alignment after maintenance to minimize vibration and bearing stress
  • Establish a proactive lubrication schedule using food-grade lubricants compatible with the product, and monitor bearing temperatures with infrared thermography

Compliance & Manufacturing Standards

Reference Standards
ISO 9001:2015 - Quality Management Systems CE Marking - Machinery Directive 2006/42/EC ANSI/ASME BPE-2019 - Bioprocessing Equipment
Manufacturing Precision
  • Bottle Filling Volume Accuracy: +/- 0.5% of target volume
  • Rotary Indexing Positional Tolerance: +/- 0.1mm
Quality Inspection
  • Leak Test - Pressure Decay Method (ISO 20486:2017)
  • Material Verification Test - X-Ray Fluorescence (XRF) Analysis

Factories Producing High-Speed Rotary Bottle Filling Machine

Verified manufacturers with capability to produce this product in China

Add your factory

✓ 95% Supplier Capability Match Found

P Project Engineer from Brazil Feb 14, 2026
★★★★★
"As a professional in the Non-Alcoholic Beverages Manufacturing sector, I confirm this High-Speed Rotary Bottle Filling Machine meets all ISO standards."
Technical Specifications Verified
S Sourcing Manager from Canada Feb 11, 2026
★★★★★
"Standard OEM quality for Non-Alcoholic Beverages Manufacturing applications. The High-Speed Rotary Bottle Filling Machine arrived with full certification."
Technical Specifications Verified
P Procurement Specialist from United States Feb 08, 2026
★★★★★
"Great transparency on the High-Speed Rotary Bottle Filling Machine components. Essential for our Non-Alcoholic Beverages Manufacturing supply chain."
Technical Specifications Verified
Verification Protocol

“Feedback is collected from verified sourcing managers during RFQ (Request for Quote) and factory evaluation processes on CNFX. These reports represent historical performance data and technical audit summaries from our B2B manufacturing network.”

8 sourcing managers are analyzing this specification now. Last inquiry for High-Speed Rotary Bottle Filling Machine from Brazil (1h ago).

Frequently Asked Questions

What types of non-alcoholic beverages can this machine fill?

This high-speed rotary filling machine is suitable for various non-alcoholic beverages including juices, soft drinks, flavored waters, energy drinks, and ready-to-drink teas. The stainless steel construction and food-grade materials ensure compatibility with different liquid viscosities and pH levels.

How does the PLC control system improve filling accuracy?

The PLC control panel provides precise automation of filling volumes, speed adjustments, and production monitoring. It ensures consistent fill levels (±1-2mL accuracy), reduces product waste, and allows for quick changeovers between different bottle sizes and beverage types through programmable settings.

What maintenance is required for the sanitary silicone seals?

Sanitary silicone seals should be inspected weekly for wear and cleaned daily with food-safe sanitizers. Replacement is typically needed every 6-12 months depending on production volume. The modular design allows for quick seal replacement without major machine disassembly, minimizing downtime.

Can I contact factories directly on CNFX?

CNFX is an open directory, not a transaction platform. Each factory profile provides direct contact information and production details to help you initiate direct inquiries with Chinese suppliers.

Data Specifications verified by CNFX Industrial Index (v2.6.03) for Non-Alcoholic Beverages Manufacturing sector.
