Technical Definition & Core Assembly

A hardware component that facilitates data exchange between a Control Processing Unit and external devices or systems.

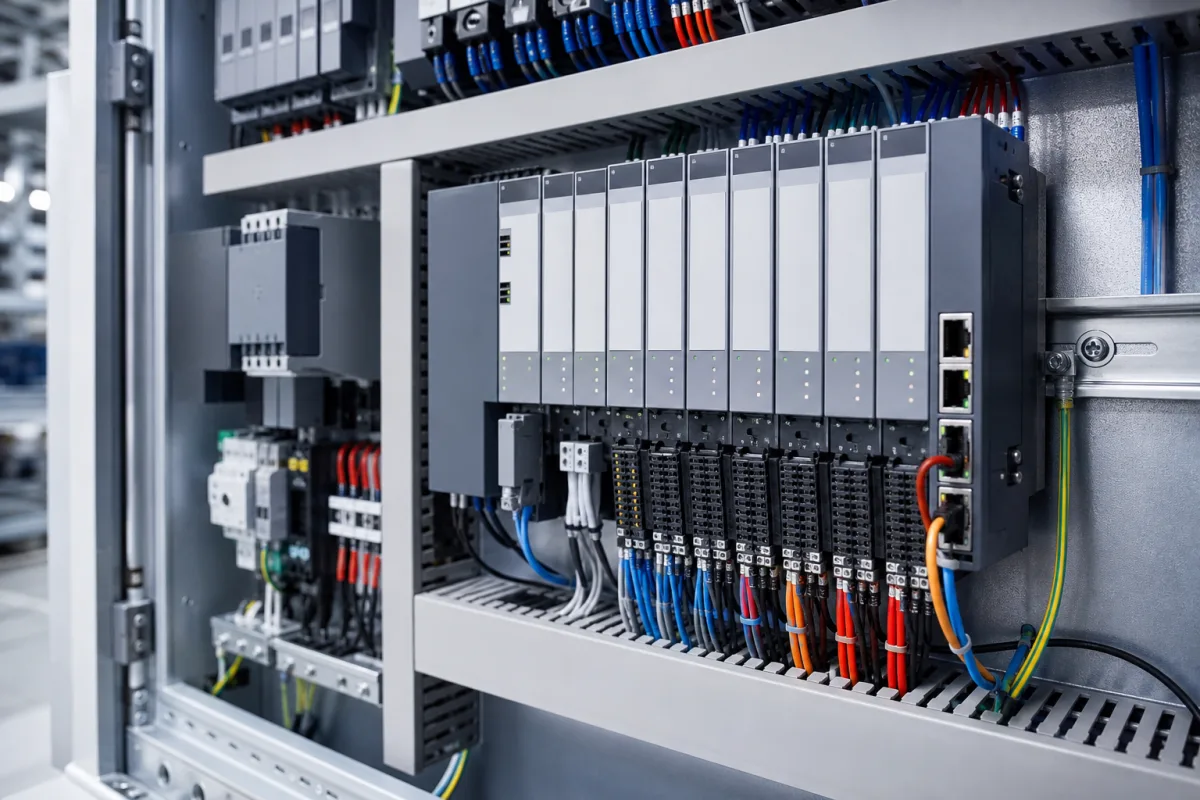

Input/Output Interface in a manufacturing environment
Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Input/Output Interface

Definition
An Input/Output Interface is an essential electronic component within a Control Processing Unit that manages the bidirectional flow of data, signals, and commands between the CPU and peripheral devices such as sensors, actuators, displays, communication modules, and other control systems. It serves as the intermediary that converts, buffers, and synchronizes data to ensure proper communication protocols and electrical compatibility. The interface typically resides on a printed circuit board (PCB) and incorporates semiconductor ICs such as microcontrollers or dedicated interface chips, along with connectors and passive components like resistors and capacitors. Its primary function is to bridge the electrical and logical differences between the CPU and external devices, enabling reliable data transfer. The interface handles input signals from external devices (e.g., analog sensor readings, digital commands) through input ports, converting them to a format compatible with the CPU's internal processing via analog-to-digital converters (ADCs), signal conditioners, or protocol converters. Conversely, it transmits processed output signals from the CPU to external devices (e.g., control signals to actuators, data to displays) through output ports, often with buffering, isolation, and timing control to ensure reliable data transfer. The operating voltage range is a key specification, typically 3.3V, 5V, or 12V, and must be matched to the connected devices. When selecting an interface, engineers must verify the voltage compatibility, signal types, data rates, and connector types against the specific application requirements. It is important to confirm model-specific parameters and any applicable standards with the legal manufacturer or supplier, as the directory provides reference ranges only. The interface does not include the CPU itself but is a separate component that connects to it. Proper grounding, shielding, and isolation are critical for reliable operation in industrial environments. Maintenance signals may include communication errors, data corruption, or electrical noise, indicating potential issues with the interface or its connections. Failure boundaries include physical damage, electrical overstress, or software misconfiguration, which can lead to system malfunction. Always consult the manufacturer's documentation for detailed specifications and installation guidelines.
Working Principle
The interface operates by receiving input signals from external devices (e.g., analog sensor readings, digital commands) through input ports, converting them to a format compatible with the CPU's internal processing (via ADCs, signal conditioners, or protocol converters), and transmitting processed output signals from the CPU to external devices (e.g., control signals to actuators, data to displays) through output ports, often with buffering, isolation, and timing control to ensure reliable data transfer.
Common Materials
Printed Circuit Board (PCB), Semiconductor ICs (e.g., microcontrollers, interface chips), Connectors (e.g., pins, ports), Passive components (resistors, capacitors)
Technical Parameters

What to specify in your RFQ

  • Operating voltage range (e.g., 3.3V, 5V, 12V) for compatibility with connected devices. in V

These are the quantities to specify to the manufacturer when sizing or requesting a quote. The manufacturer's own documentation governs the exact figures and applicable standard.

Components / BOM
  • Signal Conditioning Circuit
    Amplifies, filters, or converts input/output signals to ensure compatibility with CPU and external devices.
    Material: Semiconductor components (op-amps, transistors)
  • Interface Connector Part
    Provides physical connection points (e.g., pins, ports) for attaching external cables or devices.
    Material: Metal (e.g., gold-plated contacts) and plastic housing
  • Buffer Memory Part
    Temporarily stores data during transfer to manage speed differences between CPU and external devices.
    Material: Semiconductor memory chips (e.g., SRAM, FIFO buffers)
  • Analog-to-Digital Converter
    Turns analog sensor readings into numbers the CPU can work with.
  • Isolation Stage
    Keeps field-side surges and ground loops out of the CPU side.

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: 0 to 100 psi
other spec: Data rate: up to 1 Gbps, Isolation voltage: 2500 Vrms
temperature: -40°C to +85°C
Media Compatibility
✓ Industrial control signals (4-20mA, 0-10V) ✓ Digital communication protocols (Ethernet/IP, Profinet) ✓ Sensor/actuator interfaces
Unsuitable: High-voltage power transmission (>600V AC)
Sizing Data Required
  • Number of I/O channels required
  • Communication protocol compatibility
  • Environmental protection rating (IP/NEMA)

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Corrosion-induced signal degradation
Cause: Exposure to moisture, chemicals, or harsh environments leading to oxidation of contacts, pins, or traces, resulting in intermittent or lost signals.
Mechanical wear and connection fatigue
Cause: Repeated mating/unmating cycles, vibration, or thermal cycling causing loosening, deformation, or breakage of connectors, pins, or solder joints.
Maintenance Indicators
  • Intermittent or flickering signals during operation
  • Unusual audible buzzing, crackling, or arcing sounds from the interface
Engineering Tips
  • Implement regular cleaning and inspection protocols using appropriate contact cleaners and protective coatings to prevent corrosion and contamination.
  • Use strain relief and proper cable management to minimize mechanical stress, and follow manufacturer-specified torque values and mating cycles to prevent connection fatigue.

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
IEC 61000-6-2 - Electromagnetic compatibility (EMC) CE Marking - EU compliance for safety, health, and environmental protection

Quoted from the published standard.

Manufacturing Precision
  • Connector mating force: +/- 0.5 N
  • Signal integrity jitter: < 0.1 UI peak-to-peak
Quality Inspection
  • Signal integrity test (eye diagram analysis)
  • Environmental stress screening (temperature/humidity cycling)
