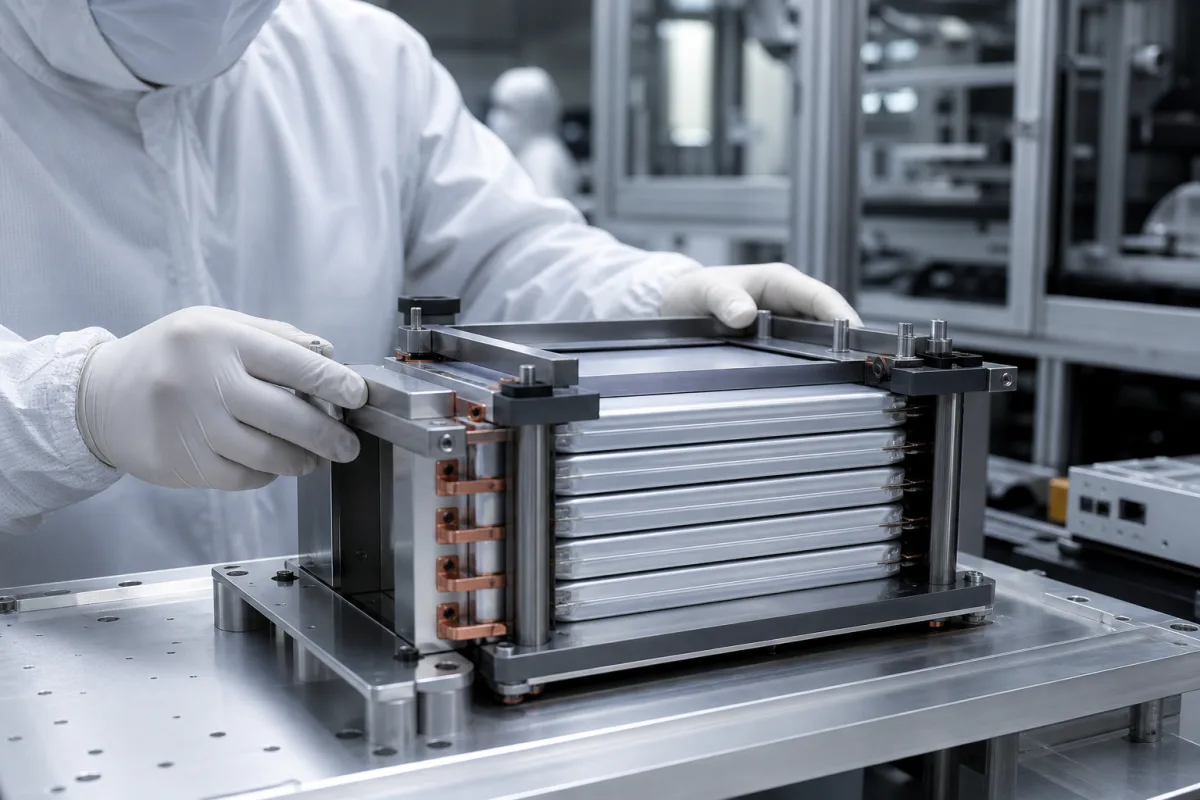

Solid-State Cell Module

Product Specifications

Technical details and manufacturing context for Solid-State Cell Module

Definition

The Solid-State Cell Module is a self-contained energy storage component designed for integration into industrial systems. It employs a solid-state electrolyte instead of the liquid or gel electrolytes found in conventional batteries, offering enhanced safety, higher energy density, and improved thermal stability. This module is intended for powering industrial equipment, control systems, or providing backup power, and is suitable for applications where reliable, long-lasting energy storage is critical.

The module operates through ion transport between electrodes via a solid electrolyte material. It stores electrical energy through electrochemical reactions and releases it on demand. The solid electrolyte prevents leakage and enables stable operation across a wider temperature range compared to conventional batteries, making it suitable for demanding industrial environments.

Key specifications, as listed in the directory, include a nominal capacity of 50–200 Ah, nominal voltage of 12–48 V, energy density of 300–500 Wh/L, and specific energy of 200–350 Wh/kg. The operating temperature range is -20 to 60 °C, with charge and discharge rates of 0.5–2 C and 1–5 C, respectively. Cycle life is rated at 5000–10000 cycles at 80% depth of discharge, and self-discharge rate is 1–3% per month. The module offers ingress protection ratings of IP54–IP65, weighs 5–20 kg, and has dimensions ranging from 300×200×100 mm to 600×400×200 mm.

These values are reference ranges from the directory and must be verified for the specific model and application with the legal manufacturer or supplier. Standards such as IEC 62660-1, IEC 62660-2, and IEC 60529 are listed as procurement references, not as proof of certification or compliance. Always confirm model-specific values and standards before integration.

Working Principle

The solid-state cell module stores electrical energy through reversible electrochemical reactions. During charging, lithium ions move from the cathode through the solid electrolyte to the lithium metal anode, where they are stored. During discharge, the ions travel back to the cathode, generating an electric current that powers connected equipment. The solid electrolyte, typically a ceramic material, conducts ions while preventing electron flow, ensuring efficient energy conversion. This design eliminates the risk of electrolyte leakage and allows operation over a wider temperature range (-20 to 60 °C) compared to liquid-electrolyte batteries. The module's charge and discharge rates (0.5–2 C and 1–5 C) determine how quickly it can be charged or deliver power, affecting runtime and performance. The solid-state construction also contributes to a longer cycle life (5000–10000 cycles) and lower self-discharge (1–3% per month), making it suitable for industrial applications requiring reliable, long-term energy storage.

Common Materials

Solid ceramic electrolyte, Lithium metal anode, Cathode composite material, Current collectors

Technical Parameters

Parameter	Typical range	Notes & selection driver
Nominal Capacity	50–200 Ah	Higher capacity for longer runtimeIEC 62660-1
Nominal Voltage	12–48 V	System voltage determines compatibilityIEC 62660-1
Energy Density	300–500 Wh/L	Higher density reduces footprint
Specific Energy	200–350 Wh/kg	Weight-critical applications
Operating Temperature	-20–60 °C	Outside range reduces performanceIEC 62660-2
Charge Rate	0.5–2 C	Higher rate shortens charge time
Discharge Rate	1–5 C	Peak power capability
Cycle Life	5000–10000 cycles	At 80% depth of dischargeIEC 62660-1
Self-Discharge Rate	1–3 %/month	Lower is better for storage
Ingress Protection	IP54–IP65	Dust and water resistanceIEC 60529
Weight	5–20 kg	Affects installation and handling
Dimensions (L×W×H)	300×200×100–600×400×200 mm	Envelope for integration

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM

Solid Electrolyte Layer Part
Facilitates ion transport between electrodes while preventing short circuits

Material: Ceramic or polymer solid electrolyte
Electrode Assembly
Stores and releases electrical energy through electrochemical reactions

Material: Lithium metal anode and composite cathode
Thermal Management Interface
Manages heat dissipation during charge/discharge cycles

Material: Aluminum heat spreader with thermal interface material
Battery Management System (BMS)
Monitors cell voltage, temperature, and state of charge

Material: Electronic circuit board with sensors

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for Solid-State Cell Module.

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Automotive Solid-State Battery Pack

View system integration details

Manufacturers of Solid-State Cell Module

Manufacturer profiles associated with Solid-State Cell Module.

Sourcing Solid-State Cell Module from China?

Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.

Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Compiled and source-reviewed by the CNFX editorial team. Each manufacturer above links to the page on that company's own website where the product is listed, with the date we checked it. How we source and review · Page last updated 6 September 2026

Procurement Evaluation Criteria

A practical evidence checklist for RFQ preparation and supplier evaluation.

Technical documentation

Request current drawings, revision history, and a signed specification sheet.

Manufacturing capability

Verify equipment lists, process limits, capacity, and representative production evidence.

Inspection readiness

Confirm test methods, calibrated equipment, sampling plans, and traceable reports.

Supplier transparency

Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Frequently Asked Questions

What is the typical application of a solid-state cell module?

It is used as a component in industrial systems for powering machinery, control systems, or providing backup power. Its solid-state design makes it suitable for environments where safety, thermal stability, and long cycle life are important.

How does the solid-state electrolyte improve safety compared to liquid electrolytes?

The solid electrolyte is non-flammable and leak-proof, eliminating the risk of electrolyte leakage and reducing the potential for thermal runaway. This enhances safety in industrial settings.

What are the key parameters to consider when selecting a module?

Key parameters include nominal capacity (Ah), voltage (V), energy density (Wh/L), specific energy (Wh/kg), operating temperature range, charge/discharge rates, cycle life, self-discharge rate, ingress protection, weight, and dimensions. These must be matched to the application requirements.

Are the listed standards a guarantee of compliance?

No. Standards such as IEC 62660-1, IEC 62660-2, and IEC 60529 are listed as procurement references. They indicate the testing methods or requirements that may apply, but they do not certify that a specific product or supplier is compliant. Always verify compliance with the legal manufacturer.
