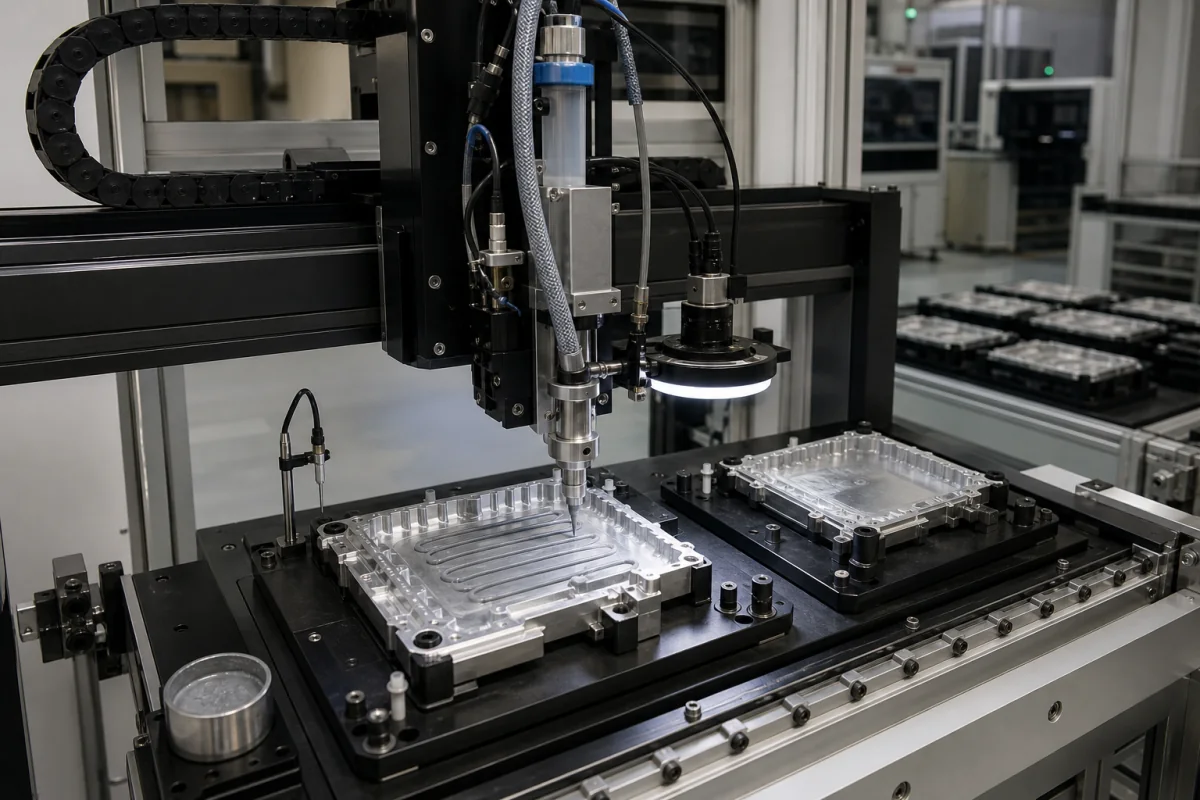

Thermal Paste Dispenser

Based on aggregated insights from multiple verified factory profiles within the CNFX directory, the standard Thermal Paste Dispenser used in the Computer, Electronic and Optical Product Manufacturing sector typically supports operational capacities ranging from standard industrial configurations to heavy-duty production requirements.

Technical Definition & Core Assembly

A canonical Thermal Paste Dispenser is characterized by the integration of Dispensing Syringe/Barrel and Precision Nozzle. In industrial production environments, manufacturers listed on CNFX commonly emphasize Stainless steel (fluid path components) construction to support stable, high-cycle operation across diverse manufacturing scenarios.

Precision dispensing equipment for applying thermal interface material (TIM) onto electronic components during assembly

View Full Specifications Explore Manufacturing Sources

Product Specifications

Technical details and manufacturing context for Thermal Paste Dispenser

Definition
A specialized automated dispensing system within the Modular 5G Base Station Production System that precisely deposits controlled amounts of thermal paste onto heat-generating electronic components (such as processors, RF modules, and power amplifiers) to ensure optimal thermal conductivity between components and heat sinks, critical for maintaining 5G base station reliability and performance under high thermal loads.
Working Principle
Utilizes pneumatic or servo-driven positive displacement mechanisms (typically syringe-based with precision nozzles) to extrude thermal paste in predetermined patterns and volumes. Controlled by programmable logic controllers (PLCs) or robotic systems that coordinate with production line timing, ensuring consistent application thickness, coverage area, and placement accuracy according to component specifications.
Common Materials
Stainless steel (fluid path components), PTFE/Teflon (seals and wetted parts), Aluminum alloy (structural frame), Ceramic or hardened steel (nozzle tips)
Technical Parameters
  • Dispensing accuracy/precision (typically ±0.1mm positional, ±2% volume) (mm) Standard Spec
Components / BOM
  • Dispensing Syringe/Barrel
    Holds and meters thermal paste, provides positive displacement
    Material: Stainless steel with PTFE lining
  • Precision Nozzle
    Forms and directs paste deposition with specific orifice size
    Material: Hardened steel or ceramic
  • Pneumatic/Servo Actuator
    Provides controlled force for paste extrusion
    Material: Aluminum alloy with steel components
  • Valve Assembly
    Controls paste flow and prevents dripping
    Material: Stainless steel with elastomer seals
  • Mounting Bracket
    Secures dispenser to production line frame
    Material: Aluminum alloy
Engineering Reasoning
0.1-1.5 MPa (1-15 bar) dispensing pressure, 0.01-0.5 mm/s dispensing speed, 18-30°C material temperature
Material viscosity exceeds 500 Pa·s at 25°C, dispensing pressure drops below 0.05 MPa (0.5 bar), nozzle clog occurs at particle sizes >25 μm
Design Rationale: Non-Newtonian fluid shear-thinning behavior (Cross model: η=η∞+(η0-η∞)/(1+(λγ)^m) where η0=1000 Pa·s, η∞=10 Pa·s, λ=0.1 s, m=0.7), causing pressure drop below yield stress threshold of 50 Pa
Risk Mitigation (FMEA)
Trigger Thermal paste phase separation due to 72-hour static storage at 40°C
Mode: Nozzle clogging with 90% flow reduction within 15 dispensing cycles
Strategy: Implement 30-minute automated material recirculation cycle with 0.2 MPa (2 bar) backpressure
Trigger Piezoelectric actuator voltage drift exceeding ±0.5% from 100V nominal over 1000 operating hours
Mode: Dispensing volume variation >±5% from 0.1 mL target
Strategy: Install closed-loop capacitive displacement sensor with 0.1 μm resolution and PID control (Kp=2.5, Ki=0.1, Kd=0.01)

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for Thermal Paste Dispenser.

precision thermal paste dispensing equipment automated TIM application for electronics stainless steel thermal interface material dispenser pneumatic thermal paste dispenser for manufacturing ceramic nozzle thermal compound applicator

Industrial Ecosystem & Supply Chain DNA

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: Up to 100 psi (690 kPa) system pressure, 0.1-50 psi dispensing pressure
flow rate: 0.001-10 ml/min (adjustable)
temperature: 15-35°C (operating ambient), material-specific viscosity range
slurry concentration: Up to 85% solids by weight, particle size <100 μm
Media Compatibility
✓ Silicone-based thermal greases ✓ Phase-change materials (PCMs) ✓ Thermally conductive epoxies
Unsuitable: Abrasive ceramic-filled pastes with >100 μm particles
Sizing Data Required
  • Required dot size/diameter (mm)
  • Production throughput (units/hour)
  • Material viscosity range (cP)

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Nozzle clogging
Cause: Thermal paste drying or curing in the nozzle due to improper cleaning, extended idle periods, or using paste beyond its shelf life, leading to partial or complete flow obstruction.
Piston seal degradation
Cause: Repeated thermal cycling and chemical exposure to paste components causing hardening, cracking, or wear of seals, resulting in air ingress, pressure loss, and inconsistent dispensing.
Maintenance Indicators
  • Inconsistent or intermittent paste flow, such as skipping, dribbling, or uneven bead formation, indicating potential clogging or seal failure.
  • Unusual audible cues like grinding, squeaking, or hissing sounds during operation, suggesting mechanical wear, air leaks, or motor strain.
Engineering Tips
  • Implement a strict cleaning and purging protocol after each use with manufacturer-recommended solvents, and store the dispenser with the nozzle submerged in solvent or capped to prevent paste curing.
  • Conduct regular preventive maintenance, including inspecting and replacing seals and wipers per the manufacturer's schedule, and calibrating pressure and temperature settings to match the paste's viscosity and application requirements.

Compliance & Manufacturing Standards

Reference Standards
ISO 9001:2015 - Quality Management Systems ANSI/ISA-88.00.01 - Batch Control CE Marking - Machinery Directive 2006/42/EC
Manufacturing Precision
  • Dispensing Volume Accuracy: +/- 2% of setpoint
  • Nozzle Positioning Repeatability: +/- 0.05mm
Quality Inspection
  • Dimensional Verification of Critical Components
  • Functional Performance Testing with Calibrated Viscosity Standards

Factories Producing Thermal Paste Dispenser

Verified manufacturers with capability to produce this product in China

Add your factory

✓ 97% Supplier Capability Match Found

T Technical Director from Canada Jan 14, 2026
★★★★★
"Great transparency on the Thermal Paste Dispenser components. Essential for our Computer, Electronic and Optical Product Manufacturing supply chain."
Technical Specifications Verified
P Project Engineer from United States Jan 11, 2026
★★★★☆
"The Thermal Paste Dispenser we sourced perfectly fits our Computer, Electronic and Optical Product Manufacturing production line requirements. (Delivery took slightly longer than expected, but technical support was excellent.)"
Technical Specifications Verified
S Sourcing Manager from United Arab Emirates Jan 08, 2026
★★★★★
"Found 36+ suppliers for Thermal Paste Dispenser on CNFX, but this spec remains the most cost-effective."
Technical Specifications Verified
Verification Protocol

“Feedback is collected from verified sourcing managers during RFQ (Request for Quote) and factory evaluation processes on CNFX. These reports represent historical performance data and technical audit summaries from our B2B manufacturing network.”

9 sourcing managers are analyzing this specification now. Last inquiry for Thermal Paste Dispenser from Vietnam (25m ago).

Supply Chain Compatible Machinery & Devices

Modular Industrial Edge Computing Device

Rugged computing platform for industrial data processing at the network edge

Explore Specs →
Industrial Smart Camera Module

Embedded vision system for industrial automation and quality inspection.

Explore Specs →
Industrial Wireless Power Transfer Module

Wireless power transfer module for industrial equipment applications

Explore Specs →
Industrial Smart Sensor Module

Modular industrial sensor with embedded processing and wireless connectivity

Explore Specs →

Frequently Asked Questions

What materials are compatible with this thermal paste dispenser?

This dispenser is designed for thermal interface materials (TIMs) including silicone-based, ceramic-filled, and metal-particle pastes. The stainless steel fluid path and PTFE seals ensure compatibility with most industrial thermal compounds.

How precise is the dispensing volume control?

The system achieves ±1% volumetric accuracy with repeatable dot, line, and pattern dispensing. Precision nozzle tips and servo/pneumatic actuation enable consistent application from 0.01ml to full syringe capacity.

Can this dispenser be integrated into automated assembly lines?

Yes, it features standard mounting brackets and communication protocols (Ethernet/IP, Modbus) for seamless integration with pick-and-place systems, conveyor lines, and robotic arms in electronics manufacturing environments.

Can I contact factories directly on CNFX?

CNFX is an open directory, not a transaction platform. Each factory profile provides direct contact information and production details to help you initiate direct inquiries with Chinese suppliers.

Data Specifications verified by CNFX Industrial Index (v2.6.03) for Computer, Electronic and Optical Product Manufacturing sector.
