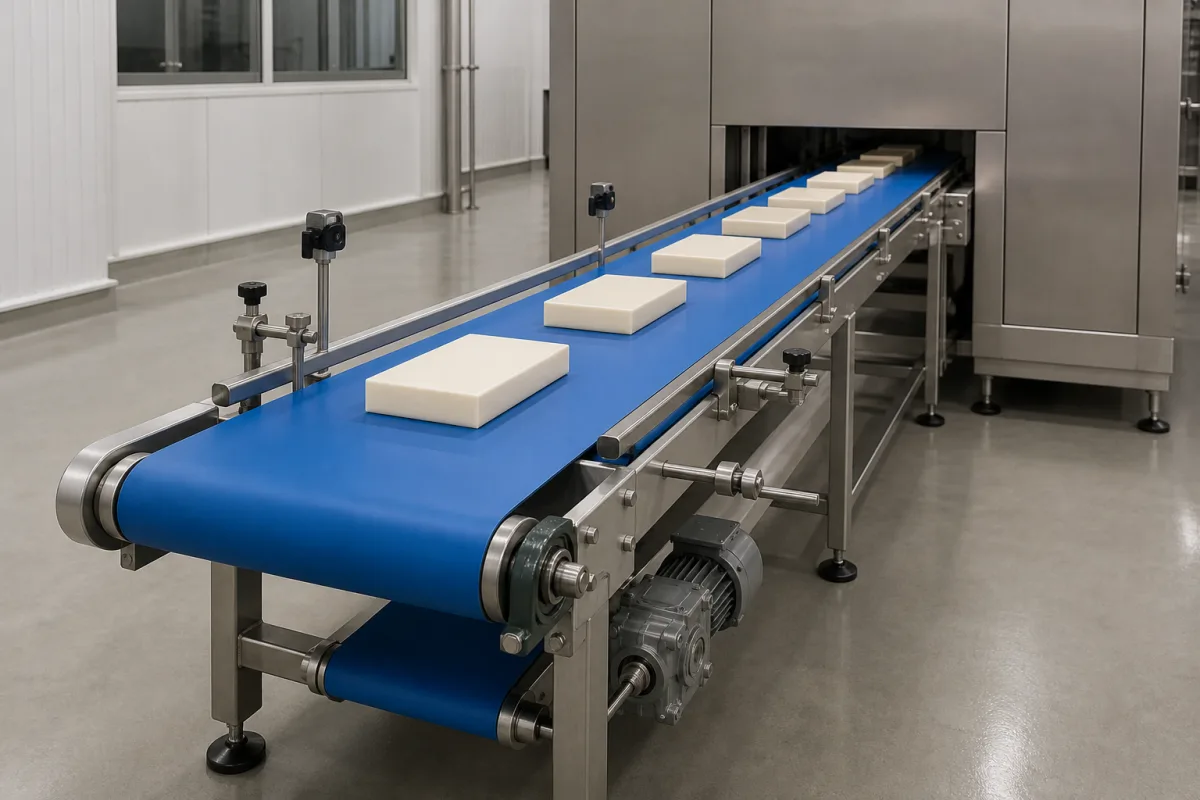

Infeed Conveyor Belt

Based on aggregated insights from multiple verified factory profiles within the CNFX directory, the standard Infeed Conveyor Belt used in the Machinery and Equipment Manufacturing sector typically supports operational capacities ranging from standard industrial configurations to heavy-duty production requirements.

Technical Definition & Core Assembly

A canonical Infeed Conveyor Belt is characterized by the integration of Belt Carcass and Belt Cover. In industrial production environments, manufacturers listed on CNFX commonly emphasize Rubber construction to support stable, high-cycle operation across diverse manufacturing scenarios.

A conveyor belt specifically designed to receive and transport products into a processing or packaging system.

View Full Specifications Explore Manufacturing Sources

Product Specifications

Technical details and manufacturing context for Infeed Conveyor Belt

Definition
The infeed conveyor belt is a critical component of the Product Infeed System, responsible for the initial handling and controlled transportation of raw materials, components, or finished goods from a loading point into the main production, assembly, or packaging line. It ensures a steady, regulated flow of items, facilitating automation and process efficiency.
Working Principle
The belt, typically made of rubber, PVC, or other materials, is looped around two or more pulleys. One pulley is driven by a motor, creating motion. Products placed on the belt are carried forward by friction. Speed, alignment, and sometimes indexing are controlled to synchronize with downstream equipment.
Common Materials
Rubber, Fabric reinforcement (e.g., polyester, nylon), PVC, Polyurethane
Technical Parameters
  • Belt width, which determines the maximum product size or flow capacity it can handle. (mm) Customizable
Components / BOM
  • Belt Carcass
    Provides tensile strength and support; the core fabric or metal mesh layer.
    Material: Polyester, nylon, steel cord
  • Belt Cover
    The top and bottom layers providing wear resistance, grip, and product protection.
    Material: Rubber, PVC, polyurethane
  • Pulley (Drive/Head)
    The powered pulley that drives the belt via friction or direct connection.
    Material: Steel, often with rubber lagging
  • Pulley (Tail/Return)
    The end pulley that guides the belt and maintains tension on the return side.
    Material: Steel
  • Belt Fastener/Splice
    Mechanical or vulcanized joint used to form the belt into an endless loop.
    Material: Steel alloy, rubber compound
Engineering Reasoning
0.5-2.0 m/s belt speed, 0-100 kg/m linear load density
Belt tensile stress exceeding 25 MPa (EP400 rubber compound yield point) or pulley bearing temperature exceeding 120°C
Design Rationale: Polymer chain scission in rubber matrix due to cyclic flexural fatigue at 0.5 Hz minimum, or lubricant film breakdown at Stribeck parameter <0.001
Risk Mitigation (FMEA)
Trigger Material fatigue accumulation from 10^6+ flex cycles at 0.8 m/s belt speed
Mode: Longitudinal belt cracking initiating at 3 mm depth from cover surface
Strategy: Implementation of 4-layer polyester-nylon reinforcement with 50 N/mm warp/weft strength and 8 mm top cover thickness
Trigger Pulley misalignment exceeding 0.5 mm/m across 2 m span
Mode: Edge wear progression at 0.2 mm/hour rate causing tracking failure
Strategy: Installation of crowned pulleys with 0.8% crown height and laser-aligned mounting brackets with ±0.1 mm tolerance

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for Infeed Conveyor Belt.

industrial infeed conveyor belt systems rubber infeed conveyor belt for packaging heavy-duty fabric reinforced conveyor belt infeed belt with PVC cover material custom infeed conveyor belt specifications

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Product Infeed System
View system integration details
Product Feeder
View system integration details

Industrial Ecosystem & Supply Chain DNA

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: N/A (belt tension up to 1500 N/mm)
other spec: Max belt speed: 3 m/s, Max load capacity: 150 kg/m
temperature: -20°C to 80°C
Media Compatibility
✓ Packaged food items ✓ Bottled beverages ✓ Cardboard boxes
Unsuitable: High-temperature molten materials
Sizing Data Required
  • Product dimensions and weight
  • Required throughput rate (units/hour)
  • Available installation space and layout constraints

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Belt misalignment
Cause: Improper installation, worn or damaged idlers/pulleys, material buildup on components
Belt edge wear and tearing
Cause: Material spillage, tracking issues, contact with conveyor structure, abrasive materials
Maintenance Indicators
  • Audible squealing or grinding noises from drive/pulley areas
  • Visible material spillage along conveyor path or at transfer points
Engineering Tips
  • Implement regular belt alignment checks and automated tracking systems
  • Establish proactive cleaning schedules for spillage and install proper sealing at transfer points

Compliance & Manufacturing Standards

Reference Standards
ISO 14890:2013 - Conveyor belts - Specification for rubber- or plastics-covered conveyor belts ANSI/CEMA 402-2003 - Belt Conveyors DIN 22101:2011 - Continuous conveyors - Belt conveyors for loose bulk materials - Basics for calculation and dimensioning
Manufacturing Precision
  • Belt thickness: +/-0.5mm
  • Pulley alignment: +/-0.5mm per meter of center distance
Quality Inspection
  • Tensile strength test (ISO 283)
  • Fire resistance test (ISO 340)

Factories Producing Infeed Conveyor Belt

Verified manufacturers with capability to produce this product in China

Add your factory

✓ 96% Supplier Capability Match Found

S Sourcing Manager from Australia Jan 24, 2026
★★★★★
"Reliable performance in harsh Machinery and Equipment Manufacturing environments. No issues with the Infeed Conveyor Belt so far."
Technical Specifications Verified
P Procurement Specialist from Singapore Jan 21, 2026
★★★★☆
"Testing the Infeed Conveyor Belt now; the technical reliability results are within 1% of the laboratory datasheet. (Delivery took slightly longer than expected, but technical support was excellent.)"
Technical Specifications Verified
T Technical Director from Germany Jan 18, 2026
★★★★★
"Impressive build quality. Especially the technical reliability is very stable during long-term operation."
Technical Specifications Verified
Verification Protocol

“Feedback is collected from verified sourcing managers during RFQ (Request for Quote) and factory evaluation processes on CNFX. These reports represent historical performance data and technical audit summaries from our B2B manufacturing network.”

14 sourcing managers are analyzing this specification now. Last inquiry for Infeed Conveyor Belt from Vietnam (1h ago).

Supply Chain Compatible Machinery & Devices

Hydraulic Press

Industrial machine using hydraulic pressure to compress, form, or assemble materials

Explore Specs →
Heavy-Duty CNC Plasma Cutting Machine

Industrial machine for precision metal cutting using plasma arc technology

Explore Specs →
Automated Assembly Line System

Integrated production system for sequential component assembly operations

Explore Specs →
Automated Powder Coating System

Integrated industrial system for applying dry powder coatings to metal substrates.

Explore Specs →

Frequently Asked Questions

What materials are best for infeed conveyor belts in machinery manufacturing?

Rubber with fabric reinforcement (polyester/nylon) provides optimal durability and flexibility for receiving products, while PVC and polyurethane covers offer specific resistance properties for different industrial applications.

How do I maintain an infeed conveyor belt system?

Regular inspection of belt carcass and cover for wear, proper tensioning of belt fasteners/splices, and routine cleaning of drive/head and tail/return pulleys ensure optimal performance and longevity in manufacturing environments.

What specifications should I consider when selecting an infeed conveyor belt?

Key specifications include belt width and length, material thickness, load capacity, speed requirements, environmental conditions (temperature/moisture), and compatibility with your existing processing or packaging system components.
