Mounting Enclosure for User Interface Stations

Product Specifications

Technical details and manufacturing context for Mounting Enclosure

Definition

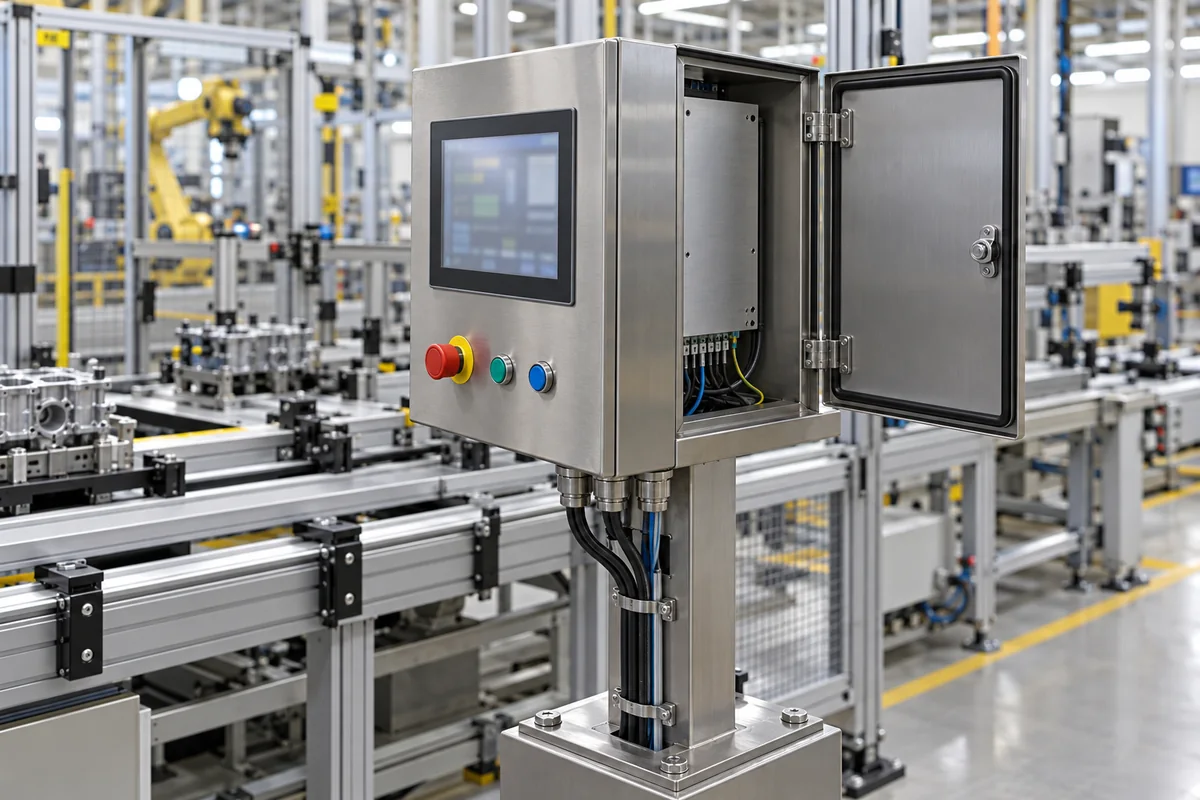

The Mounting Enclosure is a structural component of the User Interface Station, designed to provide a secure, organized, and protected environment for mounting various interface elements such as displays, control panels, switches, and indicators. It ensures proper alignment, accessibility, and safety of the user interface. The enclosure is typically fabricated from steel or aluminum alloy, with material grades and dimensions specified according to application requirements. For instance, stainless steel grade 304 (ASTM A240) is available for corrosion resistance in industrial environments. Standard dimensions are 200x300x150 mm (W x H x D), with custom sizes available on request. Wall thickness ranges from 1.5 to 2.5 mm, and the enclosure offers ingress protection ratings of IP54 to IP65 (IEC 60529), making it dust-tight and water-resistant. Operating temperature range is -20 to 60 °C, suitable for most indoor applications. Mounting hole diameters accommodate standard M5 to M12 fasteners. Surface finish is specified as Ra 0.8 to 1.6 μm (ISO 1302) for smooth aesthetics and hygiene. Weight varies from 1.5 to 3.0 kg depending on size and material thickness. Dimensional tolerances follow ISO 2768-m (±0.5 mm). For integrated components, the enclosure supports a rated voltage of 24 V DC and a rated current of 5 to 10 A for power supply. The enclosure is designed with precise mounting points, cutouts, and internal structures to securely hold interface components in place. It may incorporate features for cable management, ventilation, and access panels while protecting sensitive electronics from environmental factors, physical damage, and unauthorized access. This product is part of a neutral directory; all specifications are reference values and must be verified with the legal manufacturer or supplier for the specific model and application.

Working Principle

The enclosure is designed with precise mounting points, cutouts, and internal structures to securely hold interface components in place. It may incorporate features for cable management, ventilation, and access panels while protecting sensitive electronics from environmental factors, physical damage, and unauthorized access. The enclosure's structural integrity and material properties ensure that mounted components remain aligned and accessible, while the ingress protection rating safeguards against dust and water ingress. The operating temperature range and surface finish contribute to reliable performance in typical indoor industrial settings. The mounting hole diameters and tolerances allow for proper fastening and alignment. The rated voltage and current support the power supply to integrated components, ensuring they function as intended. The enclosure's design also facilitates maintenance by providing access panels and cable routing options, enabling inspection and replacement of components without compromising protection.

Common Materials

Steel, Aluminum alloy

Technical Parameters

Parameter	Typical range	Notes & selection driver
Material	304 Stainless Steel	Corrosion resistant for industrial environmentsASTM A240
Dimensions (W x H x D)	200x300x150 mm	Custom sizes available on request
Wall Thickness	1.5–2.5 mm	Thicker for higher strength
Ingress Protection	IP54–IP65	Dust-tight and water-resistantIEC 60529
Operating Temperature	-20–60 °C	Suitable for most indoor applications
Mounting Hole Diameter	5–12 mm	For standard M5–M12 fasteners
Surface Finish	Ra 0.8–1.6 μm	Smooth finish for aesthetics and hygieneISO 1302
Weight	1.5–3.0 kg	Depends on size and material thickness
Tolerance (Dimensions)	±0.5 mm	General tolerance for machiningISO 2768-m
Rated Voltage	24 V DC	For integrated components
Rated Current	5–10 A	For power supply to components

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM

Mounting Panel Part
Primary surface for attaching interface components

Material: Steel
Access Door
Provides secure access to internal components

Material: Steel
Cable Gland
Secures and protects cable entry points

Material: Plastic or metal
Enclosure Body
The box itself — it carries the IP rating and holds everything else in alignment.

Applied To / Applications

This component is essential for the following industrial systems and equipment:

User Interface Station

View system integration details

Manufacturers of Mounting Enclosure

Manufacturer profiles associated with Mounting Enclosure.

Sourcing Mounting Enclosure from China?

Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.

Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Procurement Evaluation Criteria

A practical evidence checklist for RFQ preparation and supplier evaluation.

Technical documentation

Request current drawings, revision history, and a signed specification sheet.

Manufacturing capability

Verify equipment lists, process limits, capacity, and representative production evidence.

Inspection readiness

Confirm test methods, calibrated equipment, sampling plans, and traceable reports.

Supplier transparency

Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Frequently Asked Questions

What materials are available for the Mounting Enclosure?

The enclosure can be made from steel or aluminum alloy. For corrosion resistance, stainless steel grade 304 (ASTM A240) is an option. The specific material should be confirmed with the manufacturer based on the application environment.

What are the standard dimensions and tolerances?

Standard dimensions are 200x300x150 mm (W x H x D), with custom sizes available on request. Dimensional tolerances follow ISO 2768-m, typically ±0.5 mm. Always verify the exact dimensions and tolerances for your specific model.

What ingress protection ratings are available?

The enclosure offers ingress protection ratings of IP54 to IP65 (IEC 60529), providing dust-tight and water-resistant properties. The actual rating depends on the configuration and should be confirmed with the supplier.

What are the electrical ratings for integrated components?

The enclosure supports a rated voltage of 24 V DC and a rated current of 5 to 10 A for power supply to integrated components. These values are reference ranges; verify the specific electrical requirements with the manufacturer.
