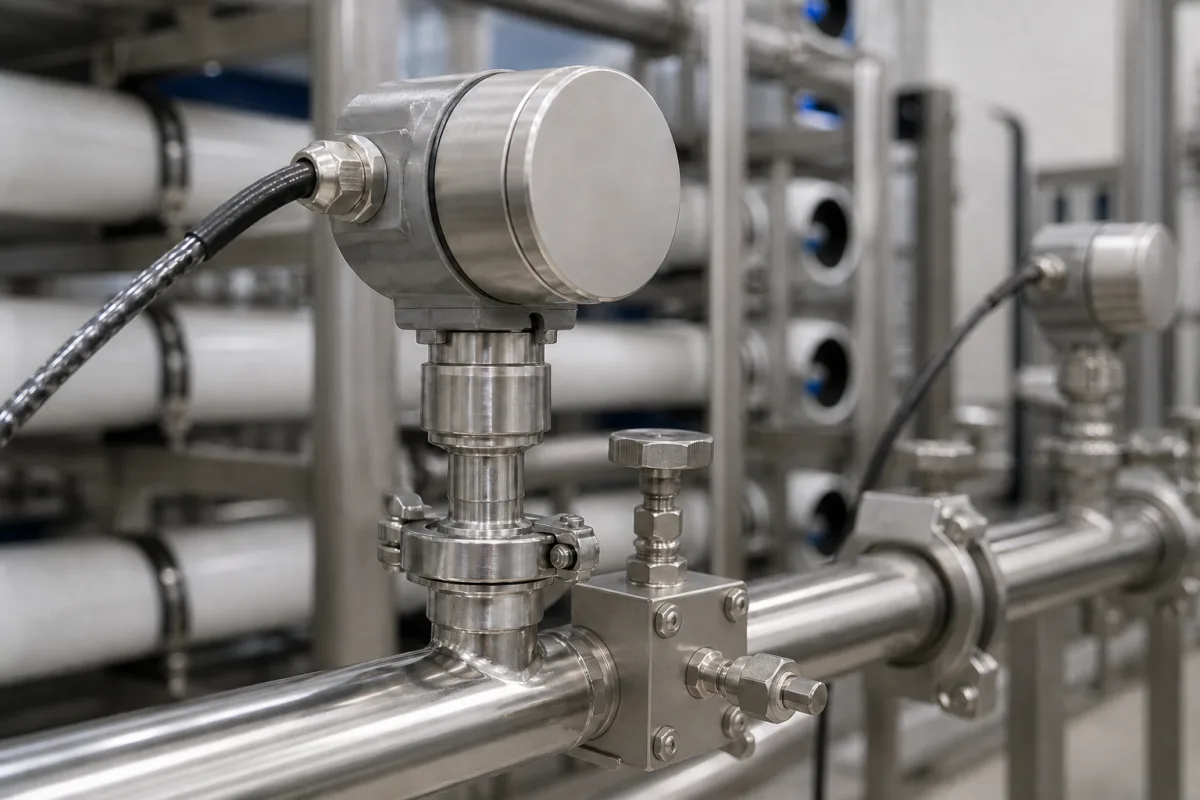

Pressure Sensor/Transmitter

Product Specifications

Technical details and manufacturing context for Pressure Sensor/Transmitter

Definition

This pressure sensor/transmitter is a component used in machinery and equipment manufacturing, specifically within a pressure regulation module. It continuously monitors system pressure and converts the physical measurement into a standardized electrical signal, typically 4-20 mA or 0-10 V, for transmission to control systems. The device employs sensing elements such as piezoresistive, capacitive, or strain gauge technologies that deform under applied pressure, causing measurable changes in electrical properties. These changes are amplified and converted into standardized output signals. The sensor is available with a measuring range of 0–1.6 MPa, accuracy of ±0.5% FS per IEC 60770, and output signal of 4–20 mA. Supply voltage ranges from 12–36 V DC, with a typical 24 V DC. Operating temperature is -40 to 85 °C, and process connection is G1/2 per DIN 3852. Ingress protection is IP65–IP67 per IEC 60529. Overpressure limit is 2× FS, burst pressure is 3× FS, and response time is ≤10 ms. Weight ranges from 0.2–0.5 kg. Wetted parts are made of 316L stainless steel per ASTM A276. Materials on file include stainless steel, ceramic, and silicon. These specifications are reference ranges; actual values must be confirmed with the manufacturer for the specific model and application. The sensor is designed for precise pressure regulation and process automation, but proper selection and verification are essential.

Working Principle

The sensor operates by exposing a sensing element to the process pressure. The element, which may be piezoresistive, capacitive, or strain gauge based, deforms under pressure, altering its electrical properties such as resistance or capacitance. This change is detected by a bridge circuit or similar electronics, amplified, and converted into a standardized output signal (e.g., 4-20 mA or 0-10 V). The output is proportional to the applied pressure and is transmitted to a control system for monitoring and regulation. The sensing element is isolated from the media by a diaphragm, often made of stainless steel, and the signal conditioning electronics are housed in a robust enclosure. The device is designed to operate within specified temperature and pressure limits, and it provides a linear output over the calibrated range.

Common Materials

Stainless Steel, Ceramic, Silicon

Technical Parameters

Parameter	Typical range	Notes & selection driver
Measuring Range	0–1.6 MPa	Select range to cover maximum system pressure with margin.
Accuracy	±0.5 %FS	Higher accuracy available at higher cost.IEC 60770
Output Signal	4–20 mA	Two-wire loop powered.
Supply Voltage	12–36 V DC	Typical 24 V DC.
Operating Temperature	-40–85 °C	Media temperature may differ; check compatibility.
Process Connection	G1/2	Other threads available on request.DIN 3852
Ingress Protection	IP65–IP67	IP67 for submersion.IEC 60529
Overpressure Limit	2× FS	Up to 2 times full scale without damage.
Burst Pressure	3× FS	Maximum pressure before rupture.
Response Time	≤10 ms	Time to reach 90% of step change.
Weight	0.2–0.5 kg	Depends on housing material and connection.
Material (Wetted Parts)	316L	Stainless steel for corrosion resistance.ASTM A276

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM

Pressure Sensing Element
Detects and converts pressure into mechanical deformation

Material: Silicon/Stainless Steel
Signal Conditioning Circuit
Amplifies and converts sensor output to standardized signal

Material: Electronic Components
Housing/Enclosure Part
Protects internal components from environmental factors

Material: Stainless Steel/Aluminum
Electrical Connector Part
Provides interface for power and signal transmission

Material: Plastic/Metal
Isolation Diaphragm
Keeps process media off the sensing element while passing the pressure through to it.

Material: Stainless steel

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Pressure Regulation Module

View system integration details

Manufacturers of Pressure Sensor/Transmitter

Manufacturer profiles associated with Pressure Sensor/Transmitter.

Sourcing Pressure Sensor/Transmitter from China?

Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.

Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Compiled and source-reviewed by the CNFX editorial team. Each manufacturer above links to the page on that company's own website where the product is listed, with the date we checked it. How we source and review · Page last updated 6 September 2026

Procurement Evaluation Criteria

A practical evidence checklist for RFQ preparation and supplier evaluation.

Technical documentation

Request current drawings, revision history, and a signed specification sheet.

Manufacturing capability

Verify equipment lists, process limits, capacity, and representative production evidence.

Inspection readiness

Confirm test methods, calibrated equipment, sampling plans, and traceable reports.

Supplier transparency

Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Frequently Asked Questions

What is the measuring range of this pressure sensor?

The reference measuring range is 0–1.6 MPa. However, the actual range must be selected to cover the maximum system pressure with an appropriate margin, and confirmed with the manufacturer for the specific model.

What output signals are available?

The standard output signal is 4–20 mA, which is a two-wire loop-powered configuration. Other outputs may be available on request, but the listed specification is 4–20 mA.

What is the ingress protection rating?

The reference ingress protection is IP65–IP67 per IEC 60529. IP67 allows submersion, but the actual rating depends on the housing and connection. Verify with the manufacturer.

What materials are used for wetted parts?

The wetted parts are made of 316L stainless steel per ASTM A276. Other materials such as ceramic and silicon may be used in the sensing element. Confirm material compatibility with your media.
