Body Drop Station

Based on aggregated insights from multiple verified factory profiles within the CNFX directory, the standard Body Drop Station used in the Motor Vehicle Manufacturing sector typically supports operational capacities ranging from standard industrial configurations to heavy-duty production requirements.

Technical Definition & Core Assembly

A canonical Body Drop Station is characterized by the integration of Overhead Lifting Mechanism and Alignment System. In industrial production environments, manufacturers listed on CNFX commonly emphasize Structural steel construction to support stable, high-cycle operation across diverse manufacturing scenarios.

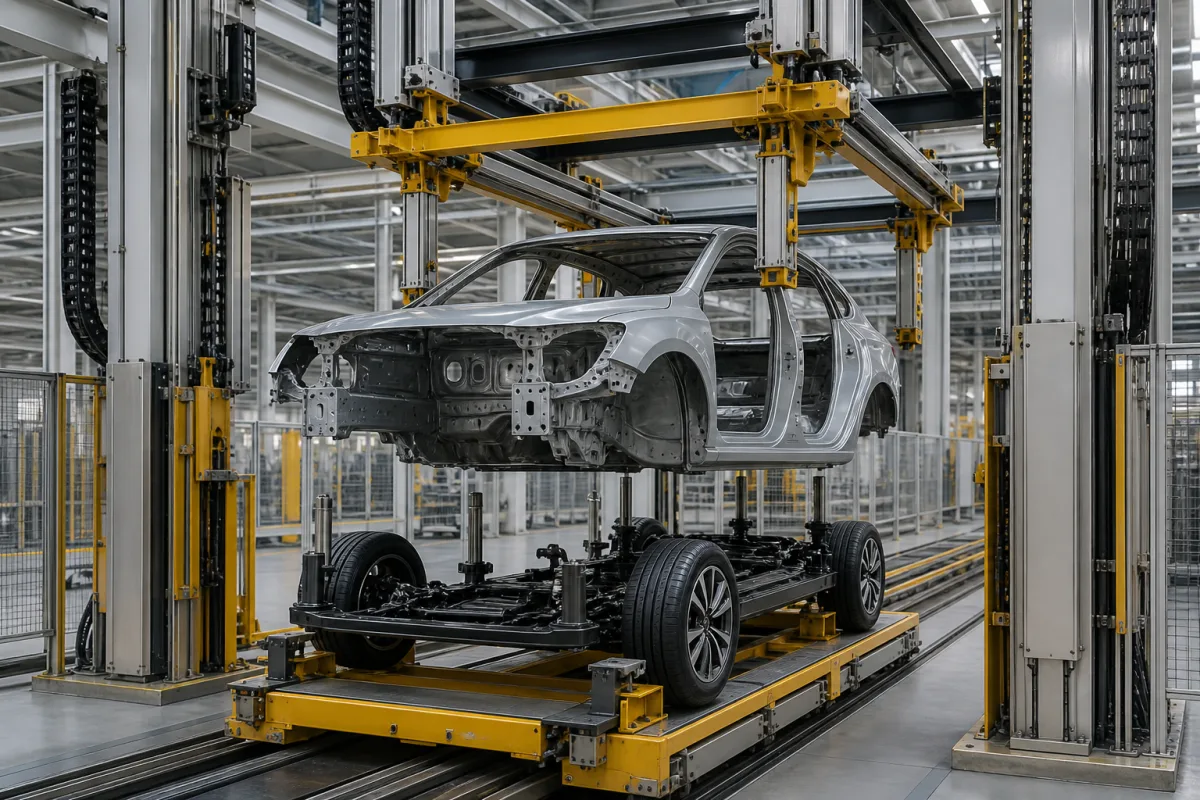

Automated station in final assembly where vehicle body is precisely lowered onto chassis frame

View Full Specifications Explore Manufacturing Sources

Product Specifications

Technical details and manufacturing context for Body Drop Station

Definition
A critical workstation in automotive final assembly systems where the vehicle body shell is accurately positioned and lowered onto the chassis frame assembly. This station ensures proper alignment of body mounting points with chassis components before permanent fastening operations.
Working Principle
Uses overhead lifting mechanisms with precision positioning systems to transfer the vehicle body from an overhead conveyor, align it with the chassis using laser or vision guidance, and gently lower it onto the frame with controlled descent to prevent damage to components.
Common Materials
Structural steel, Aluminum alloy, Precision bearings
Technical Parameters
  • Positioning accuracy for body-to-chassis alignment (mm) Per Request
Components / BOM
  • Overhead Lifting Mechanism
    Transfers and supports vehicle body during drop operation
    Material: Structural steel
  • Alignment System
    Ensures precise positioning of body relative to chassis
    Material: Aluminum alloy with optical components
  • Control System
    Manages descent speed and positioning accuracy
    Material: Electronic components in steel enclosure
Engineering Reasoning
0.5-2.0 mm positioning accuracy, 0.1-0.5 m/s descent velocity, 15-25 kN clamping force
Positioning error > 2.5 mm causes misalignment, descent velocity > 0.7 m/s causes impact damage, clamping force < 10 kN causes insufficient coupling
Design Rationale: Kinematic misalignment exceeding elastic deformation limits of mounting interfaces (Hooke's Law: σ = Eε), impact energy exceeding yield strength of chassis welds (σ_y = 250 MPa for automotive steel), insufficient preload causing fretting corrosion at bolted joints
Risk Mitigation (FMEA)
Trigger Servo motor encoder feedback loss due to electromagnetic interference at 85-108 MHz
Mode: Position control failure causing 3.2-5.8 mm positioning overshoot
Strategy: Shielded encoder cables with ferrite cores and differential signal transmission at 5V logic levels
Trigger Hydraulic cylinder seal degradation from thermal cycling between -20°C to 80°C
Mode: Fluid leakage at 15-25 mL/min causing pressure drop from 210 bar to <150 bar
Strategy: Fluorocarbon elastomer seals with 0.5 mm radial compression and 1.2 mm groove fill ratio

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for Body Drop Station.

automated vehicle body drop station precision chassis alignment system final assembly body lowering equipment industrial automotive body positioning station overhead lifting mechanism for vehicle assembly

Industrial Ecosystem & Supply Chain DNA

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: N/A (pneumatic/hydraulic system dependent)
other spec: Positioning accuracy: ±0.5mm, Max payload: 5000kg, Cycle time: 90-120 seconds
temperature: 5°C to 40°C (operating environment)
Media Compatibility
✓ Automotive assembly lines ✓ Heavy equipment manufacturing ✓ Aerospace structural assembly
Unsuitable: Corrosive chemical environments (e.g., acid baths, salt spray testing areas)
Sizing Data Required
  • Vehicle body weight and dimensions
  • Required positioning accuracy tolerance
  • Production line cycle time requirements

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Structural fatigue cracking
Cause: Cyclic impact loading from repeated dropping of heavy components exceeding material endurance limits, often exacerbated by stress concentrations at weld joints or mounting points.
Hydraulic cylinder seal failure
Cause: Contamination ingress (particles, moisture) into hydraulic fluid leading to abrasive wear of seals, combined with high-pressure spikes during drop impact events.
Maintenance Indicators
  • Visible cracks or deformation in structural members, especially around weld zones and mounting brackets
  • Abnormal hydraulic system noises (knocking, hissing) or erratic cylinder movement during drop cycles
Engineering Tips
  • Implement regular ultrasonic thickness testing and dye penetrant inspection on high-stress areas to detect micro-cracks before propagation
  • Install dual-stage filtration with moisture removal in hydraulic system and establish fluid analysis program to maintain ISO 4406 cleanliness code ≤18/16/13

Compliance & Manufacturing Standards

Reference Standards
ISO 9001:2015 - Quality Management Systems ANSI B11.19 - Performance Criteria for Safeguarding DIN EN 60204-1 - Safety of Machinery - Electrical Equipment
Manufacturing Precision
  • Alignment: +/-0.5mm over 1000mm length
  • Surface Finish: Ra 3.2 μm maximum
Quality Inspection
  • Load Testing to 150% of Rated Capacity
  • Non-Destructive Testing (NDT) for Structural Integrity

Factories Producing Body Drop Station

Verified manufacturers with capability to produce this product in China
