Editorial Technical Reference

Pressure Regulation Unit

This page explains how Pressure Regulation Unit is classified within Food Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

A specialized component within fermentation systems that maintains precise pressure levels during microbial growth processes.

View Full Specifications Explore Manufacturing Sources

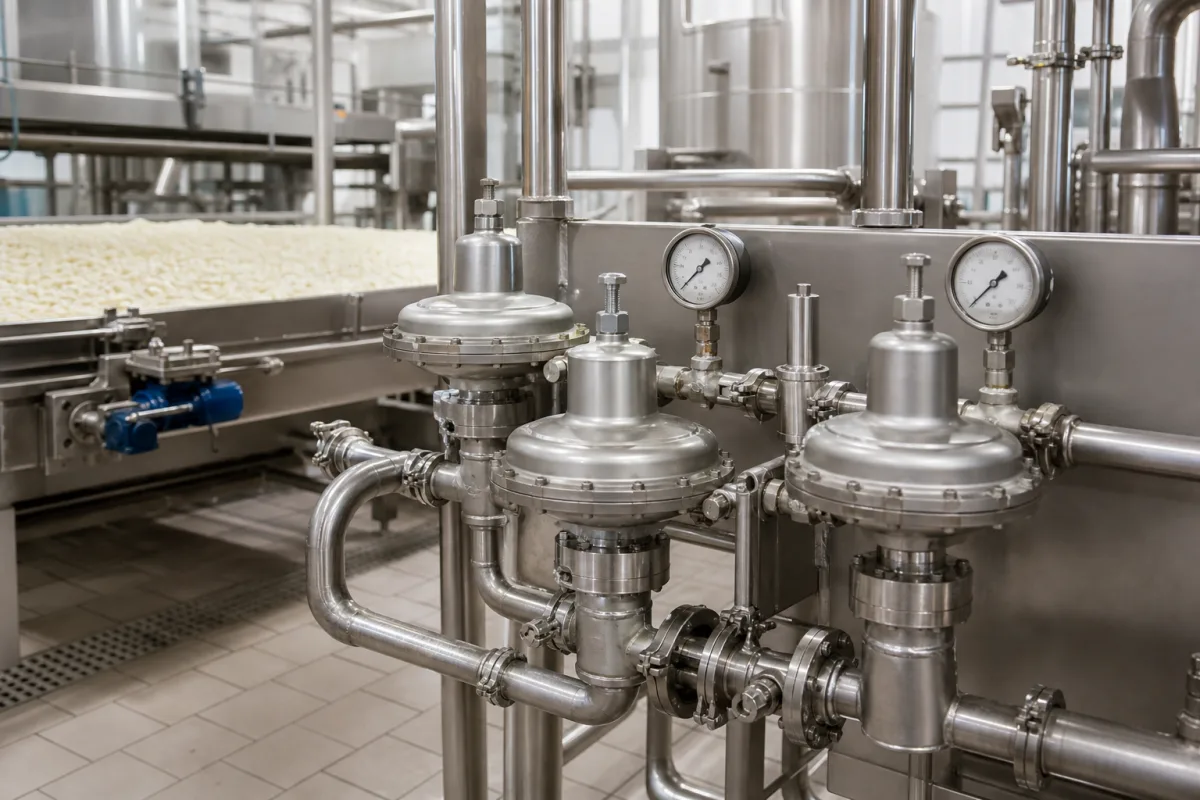

Pressure Regulation Unit in a manufacturing environment
Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Pressure Regulation Unit

Definition
The Pressure Regulation Unit is a critical subsystem of the Automated Fermentation Control System responsible for monitoring, adjusting, and maintaining optimal pressure conditions within fermentation vessels. It ensures consistent pressure parameters throughout the fermentation cycle to support microbial metabolism, product formation, and process stability while preventing pressure-related failures. The unit is designed for integration into food manufacturing fermentation systems, where precise pressure control is essential for reproducibility and product quality. It operates within a specified pressure range of 1.0–1.6 MPa, with a setpoint accuracy of ±0.01 MPa, which is critical for fermentation reproducibility. The unit handles flow capacities from 0.5 to 5 m³/h, matching fermenter volume and aeration rate, and responds to pressure changes in less than 1 second to prevent overshoot. It is suitable for operating temperatures from 0 to 60°C and media temperatures up to 80°C, with steam sterilization capability up to 121°C. The unit requires a 24 V DC supply (±10%) and consumes ≤5 W for continuous operation. It has an ingress protection rating of IP65 (per IEC 60529), ensuring dust-tightness and protection against water jets. Wetted materials are stainless steel 316L (per ASTM A240) and EPDM seals, which are corrosion-resistant and food-grade. The unit weighs between 2.5 and 4.5 kg and is compact for skid mounting. Connection sizes range from DN25 to DN50 (per ISO 1127) to match fermenter piping. The unit is designed for CIP/SIP cycles, with materials suitable for cleaning and sterilization. For procurement, verify model-specific values and standards with the legal manufacturer or supplier.
Working Principle
The unit continuously monitors vessel pressure via sensors, compares readings against setpoints, and adjusts pressure through control valves and relief mechanisms. It employs PID (Proportional-Integral-Derivative) control algorithms to maintain pressure within specified tolerances, responding to pressure fluctuations caused by gas production, temperature changes, and process variations. The control system uses feedback from pressure sensors to modulate valve positions, ensuring stable operation. The unit also includes safety relief mechanisms to prevent overpressure conditions. The response time is less than 1 second, enabling rapid correction of deviations. The PID parameters are typically configured during commissioning to match the specific fermentation process dynamics.
Common Materials
Stainless Steel 316L, Food-grade elastomers, PTFE seals
Technical Parameters
ParameterTypical rangeNotes & selection driver
Pressure Setpoint Accuracy±0.01 MPaCritical for fermentation reproducibility
Flow Capacity0.5–5 m³/hMatches fermenter volume and aeration rate
Response Time<1 sFast response prevents pressure overshoot
Operating Temperature0–60 °CSuitable for CIP/SIP cycles
Media Temperature0–80 °CFor steam sterilization up to 121°C
Supply Voltage24 ±10% V DCStandard for industrial sensors
Power Consumption≤5 WLow power for continuous operation
Ingress ProtectionIP65Dust-tight and protected against water jetsIEC 60529
Wetted Materials316LCorrosion-resistant and FDA compliantASTM A240
Seal MaterialEPDMHeat-resistant and food-grade
Weight2.5–4.5 kgCompact for skid mounting
Connection SizeDN25–DN50Matches fermenter pipingISO 1127

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM
  • Pressure Sensor
    Measures real-time pressure within fermentation vessel
    Material: Stainless Steel with ceramic diaphragm
  • Control Valve
    Adjusts gas flow to maintain target pressure
    Material: Stainless Steel 316L with PTFE seals
  • Pressure Relief Valve
    Safety mechanism to prevent over-pressurization
    Material: Stainless Steel with spring mechanism
  • PID Controller
    Processes sensor data and calculates valve adjustments
    Material: Electronic components in IP65 enclosure

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: 0 to 10 bar (gauge)
flow rate: Up to 500 L/min
temperature: 5°C to 150°C
slurry concentration: Up to 40% solids by weight
Media Compatibility
✓ Aqueous fermentation broths ✓ Stainless steel 316L systems ✓ Sterile process environments
Unsuitable: Highly corrosive halogenated media (e.g., chlorine-containing solutions)
Sizing Data Required
  • Maximum operating pressure required
  • Process flow rate (L/min)
  • Required pressure control accuracy (± bar)

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Diaphragm rupture
Cause: Fatigue from cyclic pressure loading, chemical degradation from incompatible media, or overpressure exceeding design limits
Valve seat leakage
Cause: Wear from particulate contamination, corrosion from moisture or aggressive fluids, or improper seating due to misalignment
Maintenance Indicators
  • Audible hissing or chattering from the regulator indicating unstable pressure control or internal leakage
  • Visible fluid leakage around the regulator body or downstream connections, or pressure gauge showing inability to maintain setpoint
Engineering Tips
  • Install upstream filtration (5-10 micron) and moisture separators to protect internal components from contamination and corrosion
  • Implement routine calibration checks and functional testing at intervals based on service severity, using manufacturer-recommended procedures and replacement intervals for wear parts

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
ISO 4414: Pneumatic fluid power - General rules and safety requirements for systems and their components ANSI/ASME B40.100: Pressure Gauges and Gauge Attachments DIN EN 837: Pressure gauges - Dimensions, metrology, requirements and testing

Quoted from the published standard.

Manufacturing Precision
  • Pressure regulation accuracy: +/- 1% of full scale
  • Leakage rate: < 0.1 cm³/min at maximum operating pressure
Quality Inspection
  • Pressure decay test for leakage verification
  • Functional test for pressure regulation accuracy and stability

Manufacturers of Pressure Regulation Unit

Manufacturer profiles associated with Pressure Regulation Unit.

Sourcing Pressure Regulation Unit from China?
Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.
Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Share this page

Compiled and source-reviewed by the CNFX editorial team. Each manufacturer above links to the page on that company's own website where the product is listed, with the date we checked it. How we source and review · Page last updated 16 September 2026

Technical documentation
Request current drawings, revision history, and a signed specification sheet.
Manufacturing capability
Verify equipment lists, process limits, capacity, and representative production evidence.
Inspection readiness
Confirm test methods, calibrated equipment, sampling plans, and traceable reports.
Supplier transparency
Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Supply Chain Compatible Machinery & Devices

Automated Food Packaging Integrity Tester

Automated system for non-destructive testing of food package seals and integrity.

Explore Specs →
Control Panel

A centralized interface for monitoring and controlling industrial equipment and processes

Explore Specs →
High-Purity Sodium Nitrite Curing Salt

High-purity sodium nitrite curing salt is a critical raw material in industrial meat processing for preservation and color fixation.

Explore Specs →
Industrial Meat Grinder with Cryogenic Cooling

Industrial meat grinder with integrated cryogenic cooling system for temperature-controlled processing.

Explore Specs →

Frequently Asked Questions

What is the operating pressure range of the Pressure Regulation Unit?

The unit operates within a pressure range of 1.0–1.6 MPa. Always verify the exact range for your specific model with the manufacturer.

How accurate is the pressure setpoint control?

The pressure setpoint accuracy is ±0.01 MPa, which is critical for fermentation reproducibility. This accuracy is maintained under specified operating conditions. Confirm the accuracy for your application with the supplier.

What materials are used for wetted parts?

Wetted materials are stainless steel 316L (per ASTM A240) and EPDM seals. These are corrosion-resistant and food-grade, suitable for CIP/SIP cycles. Verify material compatibility with your process media.

What is the response time of the unit?

The response time is less than 1 second, which helps prevent pressure overshoot. This fast response is essential for dynamic fermentation processes. Confirm the response time for your specific configuration.
