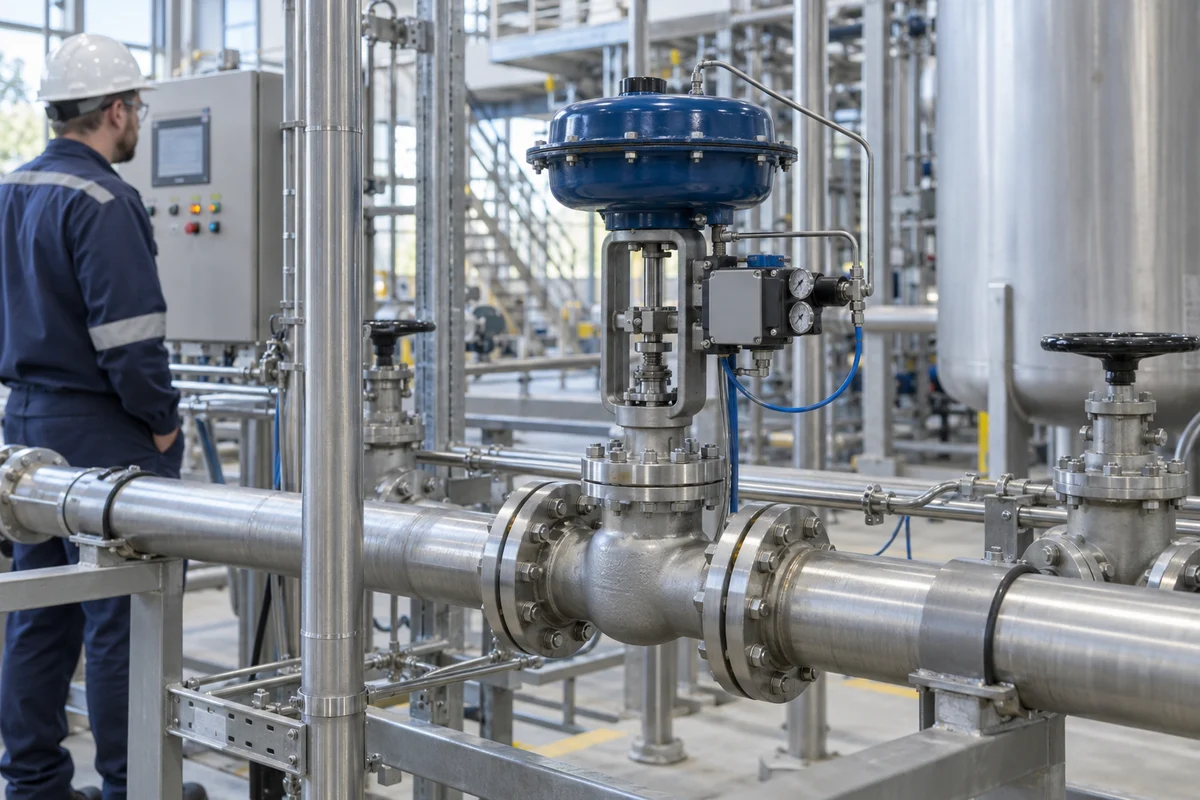

Pneumatic globe control valve

01

Follow the stem from the air actuator to the seat

This structure is a functional reference for a pneumatic sliding-stem globe valve. Emerson’s terminology separates the pressure-retaining body, moving trim and actuator; BCST describes the ZJHP body, guided plug, diaphragm and packing. It is not a manufacturing parts list or an interchangeability drawing [1] [2].

A diaphragm valve’s membrane is part of its process closure. The diaphragm described here belongs to the pneumatic actuator; it does not establish a diaphragm-type process valve [2] [1].

02

Read the flow coefficient before the pipe size

Capacity is the flow through a valve expressed as Cv or Kv under stated conditions, and the rated flow coefficient is the value at rated travel [1].

The three entries share a DN50 body in the BCST table; the merged travel row assigns 25 mm to this size group. Neither body DN nor seat diameter resolves the missing coefficient unit. The catalogue’s other travels belong to other size groups [2].

03

Choose linear or equal-percentage trim from the process

Inherent characteristic is measured at constant pressure drop; the installed characteristic is what you get when pressure drop changes with flow in the real system [1].

Linear

Flow proportional to travel, constant gain at constant pressure drop; the handbook says it is “commonly specified for liquid level control and for certain flow control applications requiring constant gain” [1].

Equal percentage

Equal travel steps change flow by an equal percentage; the handbook says such valves “are generally used on pressure control applications and on other applications where a large percentage of the pressure drop is normally absorbed by the system itself”, and should be considered where highly varying pressure drop is expected [1].

Quick opening

Provides a large initial flow increase at low travel and is used primarily for on/off duty; it is not the same inherent curve as linear trim. Select from the installed loop response rather than the curve name alone [1].

04

Check three operating points before selecting a seat

The handbook says “Oversizing of valves sometimes occurs” when trying to reduce process variability, from using line-size valves and adding multiple safety factors, and that an oversized valve puts too much gain in the valve [1].

1. Send the duty at each flow

   Give minimum, normal and maximum flow, fluid properties, inlet/outlet pressure and temperature together. Request the calculated coefficient and valve travel at each condition, including the actual fittings and trim coefficients [1].

2. Identify absolute and gauge pressures

   Emerson’s sizing constants use absolute pressures. Gauge values may be supplied if clearly marked and converted for the calculation; vapour and critical pressures must use the correct absolute basis. A pressure-drop value alone does not define the inlet-pressure ratio [1].

3. Check whether the fluid fits the method

   IEC 60534-2-1:2011 covers the stated compressible/incompressible flow equations and states the equations are not intended for non-Newtonian fluids, fluid mixtures, slurries or liquid-solid conveyance systems; its summary allows some non-vaporising multicomponent liquids with caution and includes non-turbulent corrections. Flashing/choked flow and reducers require the applicable calculation, not an unrestricted water formula [3] [1].

4. Review the working travel, not a universal minimum opening

   Oversizing can place the valve at low travel and make control more sensitive. Emerson’s discussion includes rotary-valve gain and seal-friction examples; their angular ranges are not allowable-travel limits for this globe valve. Ask for the selected trim’s installed behaviour rather than adding repeated capacity margins [1].

Future expansion is a separate duty to evaluate. Replacement later may be an economic choice, as the handbook discusses; it is not a requirement to discard every valve when the process changes [1].

05

Specify shut-off by class, with the test

State the standard edition and the complete seat-leakage test. FCI currently lists ANSI/FCI 70-2-2021; IEC’s catalogue lists IEC 60534-4:2021. The table summarises Emerson’s published handbook conditions. Agree the complete acceptance procedure for the selected edition and the ordered valve configuration [5] [4] [1].

The Class VI example concerns nominal PORT diameter, not DN50 body size. The handbook’s alternative 3 bubbles/min uses a calibrated apparatus and defined tube/immersion conditions; counting arbitrary bubbles is not an equivalent test. Class V and VI use different media and bases, so they cannot be compared as one unconditional leakage number. BCST does not state a ZJHP leakage class on the reviewed page [1] [2].

06

Define actuator, air and fail position

The ZJHP uses a ZHA(B) pneumatic multi-spring diaphragm actuator [2].

Spring range and bench set

BCST lists 20–100 kPa and parenthesised 40–200, 80–240, 20–60 and 60–100 kPa ranges. Bench set is an actuator calibration; installed valve forces must still be accounted for. Obtain the selected actuator’s sizing and bench-set sheet [2] [1].

Air supply

BCST lists 0.14 MPa, with 0.25 and 0.4 MPa in parentheses. Select the actuator for available minimum air and worst valve differential; spring range is not the air-supply requirement or proof of closing thrust [2] [1].

Failure action

The ordering tab uses “open air” or “close air” without defining the failure sequence. Agree the required valve position separately for loss of air, electrical signal and power, including any lock-up or solenoid equipment; do not translate those words into a guaranteed fail-open/closed package [2] [1].

Temperature and bonnet

The body description lists −40 to +200 °C normal and −60 to +450 °C heat-sink bonnets, while the operating-temperature row lists other ranges. Agree the exact body/bonnet, packing and service combination; a bellows option is not a universal temperature rating [2].

Body and pressure rating

The body description lists DN20–300 and 1.6/4.0/6.4 MPa nominal pressure, while the detailed table adds other values and an “ANSI 125” entry. Request the exact pressure-temperature rating and flange standard; do not convert the catalogue’s class labels into one pressure limit or infer Class 125 flange suitability [2].

Accessories

Positioner, pressure reducer and handwheel are listed order accessories. Confirm model, signal, air connections and supplied scope, with the failure-action arrangement shown on the package drawing [2].

07

Read the assembly specification without borrowing another component’s rating

These fields belong to different parts of the valve package. Fields marked for the supplier require a written answer from the selected model’s supplier; a metal body, pneumatic actuator or electronic positioner cannot establish the others’ limits.

08

Use the actuator and trim records to investigate poor response

Emerson separates friction/deadband, actuator sizing and seat leakage. Keep those mechanisms separate when specifying service checks; a slow response does not by itself identify a damaged seat [1].

Motion and position

Compare the commanded and observed stem position using the selected positioner’s diagnostic procedure. Check air supply and actuator configuration against the original sizing/bench-set record; do not raise air pressure beyond the package limit to force closure [1].

Stem and external seals

Visible packing or joint leakage concerns an external sealing interface. Identify the installed packing and gasket before ordering replacements; a seat-leakage class supplies no packing-emissions result [2] [1].

Closure and damaged trim

Request a controlled inspection/test against the specified seat-leakage procedure after isolation and according to the supplied service instructions. Inlet/outlet conditions, erosion or cavitation assessment and the actual trim design matter; an audible hiss alone is not a quantified class result [1] [6].

09

Copy this RFQ and fill in the brackets

Paste it into your enquiry below or into an email to a maker, then replace every bracket.

Tag/model and quantity: [ ]
Fluid/composition and phase: [ ]; density/SG, viscosity and vapour/critical properties as applicable [ ]
Duty points: minimum / normal / maximum flow [units]; inlet/outlet pressure [units, absolute or gauge explicitly] and temperature at EACH point [ ]
Piping: inlet/outlet sizes, reducers/fittings and available installation envelope [ ]
Sizing: applicable IEC 60534-2-1 method; required Kv or Cv, selected rated coefficient, trim coefficients and travel at each duty [ ]
Body/seat: DN/NPS [ ], seat diameter [ ], trim characteristic and stated rangeability definition [ ]
Pressure boundary: rating/pressure-temperature table [ ], exact body and bonnet material specification [ ]
Ends: connection standard/edition, facing and drilling [ ]; installed dimensions/weight [ ]
Trim/seals: plug/seat/stem grades [ ], bonnet type, packing/gaskets [ ]
Seat-leakage acceptance: standard/edition and class [ ], medium/temperature/pressure/port size/closing load and test record [ ]
Actuator: model/bench set [ ], available minimum/normal/maximum air [ ], sizing at maximum differential [ ]
Failure sequence: required position on air loss [ ], signal loss [ ], power loss [ ]; lock-up/solenoid scope [ ]
Positioner/accessories: exact model, input/protocol, electrical supply/IP rating and connection requirements [ ]
Documents: sizing sheet, package drawing, agreed material records, body-pressure and seat-leakage test records, installation/service instructions [ ]
Delivery: destination [ ], required date [ ]
