Hydraulic Actuator Cylinder

This page explains how Hydraulic Actuator Cylinder is classified within Basic Metal Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

A hydraulic cylinder that converts hydraulic pressure into linear mechanical force to precisely control the roll gap in a rolling mill.

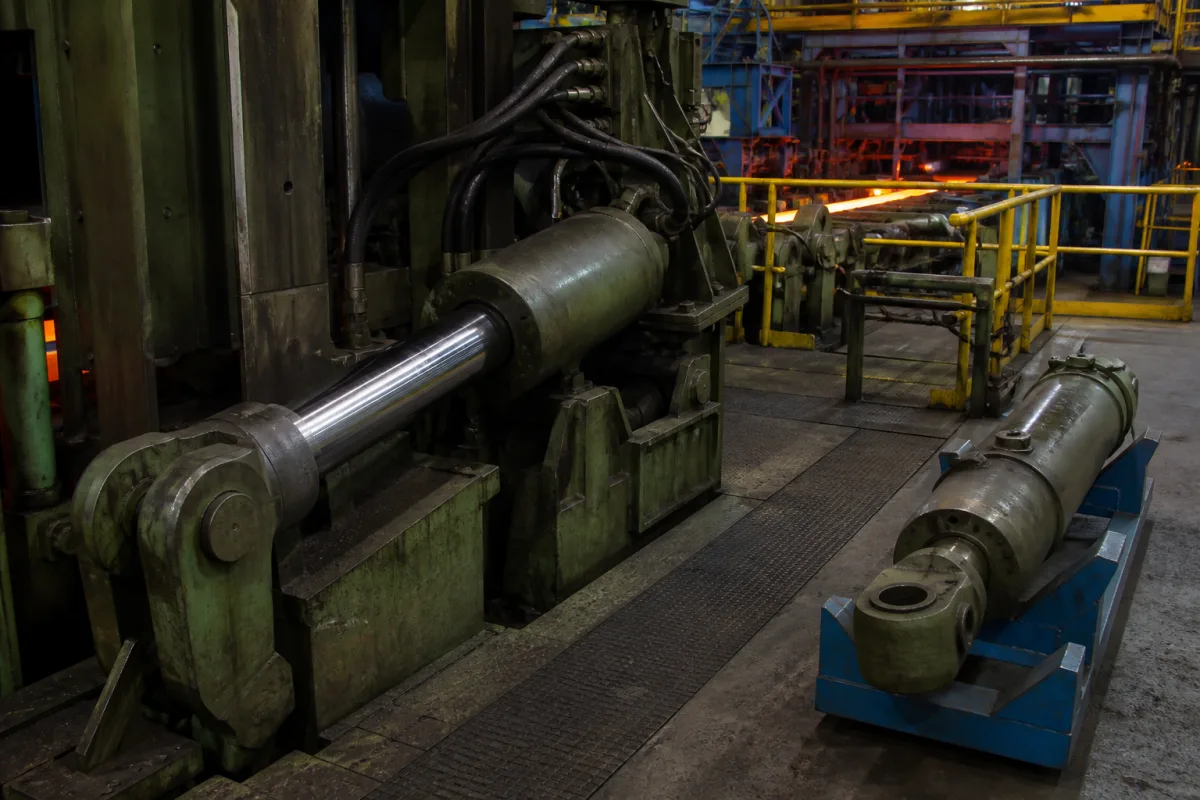

Hydraulic Actuator Cylinder in a manufacturing environment
Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Hydraulic Actuator Cylinder

Definition
The hydraulic actuator cylinder is a critical component within the Heavy-Duty Rolling Mill Hydraulic Gap Control System. It is responsible for the precise, high-force linear positioning of the work rolls. The cylinder directly translates hydraulic pressure from the system's servo valves into controlled mechanical movement, enabling real-time adjustment of the gap between rolls to achieve the desired material thickness and profile during the metal rolling process. This component is designed for the demanding environment of basic metal manufacturing, where consistent and accurate roll gap control is essential for product quality and operational efficiency. The cylinder's construction typically includes a high-strength alloy steel barrel and piston rod, with ductile iron or forged steel for the piston and end caps. Wear rings and bearing strips are often made of bronze or composite materials, while specialized elastomers are used for seals and wipers to ensure reliable operation. Key parameters include a bore diameter range of 50–320 mm, stroke length from 100–2000 mm, and operating pressure of 16–35 MPa, resulting in a force output of 31–2815 kN. Positioning accuracy is ±0.05 mm, and the operating temperature range is -20 to 80 °C. The cylinder offers ingress protection ratings of IP65–IP67. Materials specified include 45# carbon steel for the cylinder and 40Cr for the piston rod, with NBR seals (optional FKM for high temperatures). Weight varies from 15 to 1500 kg depending on configuration. These specifications are reference values and must be verified with the manufacturer for specific models and applications. The cylinder operates on the principle that hydraulic fluid under high pressure, controlled by servo valves, acts on the piston area to generate linear force (Force = Pressure × Area). Position feedback from transducers enables closed-loop control with micron-level precision. For procurement, it is essential to confirm bore, stroke, pressure, mounting style, and environmental requirements with the supplier.
Working Principle
Hydraulic fluid under high pressure, controlled by servo valves, is directed into the cylinder's chamber(s). This pressure acts upon the piston's surface area, generating a linear force (Force = Pressure × Area). The piston rod extends or retracts, moving the attached roll housing or chock to adjust the gap. Position feedback from transducers allows the system's controller to achieve closed-loop, micron-level precision.
Common Materials
High-strength alloy steel (cylinder barrel, piston rod), Ductile iron or forged steel (piston, end caps), Bronze or composite materials (wear rings, bearing strips), Specialized elastomers (seals, wipers)
Technical Parameters
ParameterTypical rangeNotes & selection driver
Bore Diameter50–320 mmDetermines force output; larger bore for higher force.ISO 6020-2
Stroke Length100–2000 mmCustom strokes available; affects overall dimensions.ISO 6020-2
Operating Pressure16–35 MPaHigher pressure increases force but requires thicker walls.ISO 6020-2
Force Output31–2815 kNCalculated from pressure and bore; match to mill requirements.
Positioning Accuracy±0.05 mmCritical for roll gap control; requires feedback sensor.
Operating Temperature-20–80 °CSeals and fluid viscosity limit range.
Ingress ProtectionIP65–IP67Protects against dust and water jets; higher for washdown.IEC 60529
Cylinder Material45#Carbon steel; optional stainless for corrosive environments.GB/T 699
Piston Rod Material40CrHard chrome plated for wear resistance.GB/T 3077
Seal MaterialNBRNitrile rubber; optional FKM for high temperature.ISO 1629
Weight15–1500 kgDepends on bore, stroke, and mounting style.

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM
  • Cylinder Barrel
    Forms the pressure vessel containing the piston and hydraulic fluid; provides mounting interface.
    Material: High-strength honed alloy steel tube
  • Piston Assembly
    Seals the pressure chambers and transmits force from fluid pressure to the rod.
    Material: Forged steel or ductile iron with bronze wear rings
  • Piston Rod Part
    Transmits the linear force from the piston to the external load (roll chock).
    Material: Hard-chrome plated high-tensile alloy steel
  • Seal Kit Part
    Prevents internal and external leakage of hydraulic fluid and contaminants.
    Material: Polyurethane, Nitrile, or Fluorocarbon elastomers
  • Position Transducer
    Measures the real-time position of the piston rod for closed-loop feedback control.
    Material: Stainless steel housing with electronic components

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: Up to 350 bar (5000 psi)
flow rate: Up to 200 L/min
temperature: -20°C to +120°C
slurry concentration: Not applicable - clean hydraulic oil required
Media Compatibility
✓ Mineral-based hydraulic oil (ISO VG 32-68) ✓ Synthetic ester-based hydraulic fluid ✓ Water-glycol fire-resistant fluid
Unsuitable: High-particulate slurry environments without filtration
Sizing Data Required
  • Required force output (kN)
  • Stroke length (mm)
  • Operating pressure (bar)

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Seal Degradation
Cause: Contamination ingress, thermal cycling, chemical incompatibility, or improper installation leading to fluid leakage and pressure loss.
Rod Scoring/Pitting
Cause: Abrasive particles in hydraulic fluid, inadequate rod wiper seals, or misalignment causing surface damage and seal failure.
Maintenance Indicators
  • Visible hydraulic fluid leakage around rod seals or cylinder body
  • Audible knocking or irregular movement during operation indicating cavitation or air entrapment
Engineering Tips
  • Implement strict fluid cleanliness protocols (ISO 4406 monitoring) and use high-efficiency filtration to prevent abrasive wear
  • Ensure proper rod alignment and install protective boots/bellows to shield rod surfaces from environmental contaminants

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
ISO 6020-2: Hydraulic fluid power - Mounting dimensions for single rod cylinders, 16 MPa series ANSI/(NFPA) T3.6.7 R1-2015: Fluid power - Cylinders - Bore and rod area ratios DIN ISO 3320: Fluid power systems and components - Cylinder bores and piston rod diameters - Metric series

Quoted from the published standard.

Manufacturing Precision
  • Bore diameter: H8 tolerance (e.g., 100mm bore: +0.054mm/-0mm)
  • Piston rod diameter: f7 tolerance (e.g., 70mm rod: -0.030mm/-0.060mm)
Quality Inspection
  • Pressure test: Hydrostatic test to 1.5x maximum working pressure for 2 minutes
  • Surface finish inspection: Ra ≤ 0.4μm for bore, Ra ≤ 0.2μm for rod sealing surfaces

Manufacturers of Hydraulic Actuator Cylinder

Manufacturer profiles associated with Hydraulic Actuator Cylinder.

Sourcing Hydraulic Actuator Cylinder from China?
Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.
Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Share this page
Technical documentation
Request current drawings, revision history, and a signed specification sheet.
Manufacturing capability
Verify equipment lists, process limits, capacity, and representative production evidence.
Inspection readiness
Confirm test methods, calibrated equipment, sampling plans, and traceable reports.
Supplier transparency
Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Supply Chain Compatible Machinery & Devices

Vacuum Induction Melting Furnace

Industrial furnace for melting metals under vacuum using electromagnetic induction

Explore Specs →
Electroslag Remelting Furnace

An industrial furnace used in basic metal manufacturing for secondary refining of alloys through the electroslag remelting (ESR) process.

Explore Specs →
Molten Metal Temperature Measurement System

Automated system for continuous temperature monitoring of molten metals during processing.

Explore Specs →
Molten Metal Degassing System

The Molten Metal Degassing System is an industrial system used in basic metal manufacturing to remove dissolved hydrogen, oxygen, and nitrogen from molten aluminum, steel, and other non-ferrous metals.

Explore Specs →

Frequently Asked Questions

What is the primary function of this hydraulic actuator cylinder?

It converts hydraulic pressure into linear mechanical force to precisely position the work rolls in a rolling mill, controlling the roll gap for accurate material thickness and profile.

What are the typical bore and stroke ranges?

The bore diameter ranges from 50 to 320 mm, and the stroke length from 100 to 2000 mm, per ISO 6020-2. Custom strokes may be available.

What materials are used in construction?

The cylinder barrel and piston rod are high-strength alloy steel, with ductile iron or forged steel for piston and end caps. Wear rings are bronze or composite, and seals are specialized elastomers.

How is positioning accuracy achieved?

Position feedback from transducers enables closed-loop control, achieving accuracy of ±0.05 mm. The system adjusts hydraulic pressure via servo valves to maintain the desired roll gap.
