Alignment Assistance System

This page explains how Alignment Assistance System is classified within Motor Vehicle Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

A precision guidance component that ensures proper positioning and orientation of elements within an industrial system

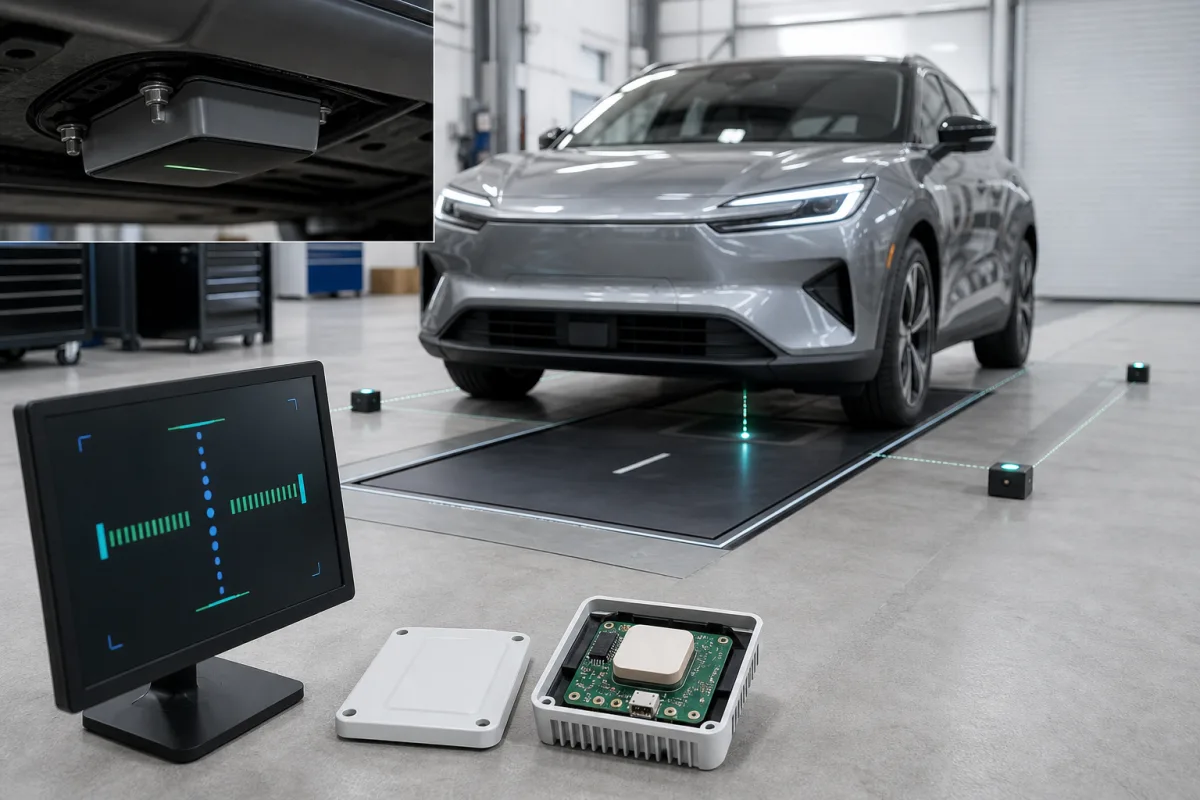

Alignment Assistance System in a manufacturing environment
Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Alignment Assistance System

Definition
The Alignment Assistance System is a critical component within industrial systems that provides real-time guidance and correction for positioning and orientation of workpieces, tools, or other system elements. It ensures precise alignment during assembly, manufacturing, or operational processes by detecting deviations from target positions and providing corrective feedback or automated adjustments to maintain optimal positioning accuracy throughout the industrial workflow. The system is designed for use in motor vehicle manufacturing and other industrial settings where precise alignment is essential. It operates through a combination of sensors, such as optical, laser, or mechanical probes, that continuously monitor the position and orientation of target elements. When deviations from predetermined alignment parameters are detected, the system processes this data through control algorithms and activates adjustment mechanisms, such as servo motors, pneumatic actuators, or mechanical guides, to correct the misalignment. This creates a closed-loop feedback system that maintains precise positioning through continuous monitoring and adjustment cycles. The system is constructed from materials including aluminum alloy, stainless steel, optical glass, and electronic components. Key parameters include an operating pressure of 1.0–1.6 MPa, a supply voltage of 24 V DC ±10%, current consumption of 0.5–1.2 A, positioning accuracy of ±0.05 mm (per ISO 230-2), repeatability of ±0.02 mm (per ISO 230-2), operating temperature range of -40 to 85 °C (per IEC 60068-2-1), ingress protection ratings of IP54–IP65 (per IEC 60529), relative humidity of 5–95% (per IEC 60068-2-78), material of Aluminum 6061-T6 (per ASTM B211), weight of 1.5–2.5 kg, dimensions of 150×80×60 mm, and an RS-485 communication interface using Modbus RTU protocol (per TIA/EIA-485). These values are reference ranges and must be verified for the specific model and application. The system is intended for integration into larger systems; it is not a standalone product. Buyers should confirm model-specific specifications and applicable standards with the legal manufacturer or supplier before procurement.
Working Principle
The Alignment Assistance System operates through a combination of sensors (such as optical, laser, or mechanical probes) that continuously monitor the position and orientation of target elements. When deviations from predetermined alignment parameters are detected, the system processes this data through control algorithms and activates adjustment mechanisms (such as servo motors, pneumatic actuators, or mechanical guides) to correct the misalignment. This creates a closed-loop feedback system that maintains precise positioning through continuous monitoring and adjustment cycles.
Common Materials
Aluminum alloy, Stainless steel, Optical glass, Electronic components
Technical Parameters
ParameterTypical rangeNotes & selection driver
Supply Voltage24 ±10% V DCStandard industrial voltage
Current Consumption0.5–1.2 ADepends on actuator load
Positioning Accuracy±0.05 mmUnder no-load conditionsISO 230-2
Repeatability±0.02 mmFor 100 cyclesISO 230-2
Operating Temperature-40–85 °CNon-condensingIEC 60068-2-1
Ingress ProtectionIP54–IP65IP65 for dusty environmentsIEC 60529
Relative Humidity5–95 %Non-condensingIEC 60068-2-78
MaterialAluminum 6061-T6Anodized for corrosion resistanceASTM B211
Weight1.5–2.5 kgVaries with configuration
Dimensions (L×W×H)150×80×60 mmBase model
Communication InterfaceRS-485Modbus RTU protocolTIA/EIA-485

Ranges are indicative industry figures for RFQ preparation, not a supplier commitment. Confirm every value and standard with the legal manufacturer before ordering.

Components / BOM
  • Alignment Sensor Array
    Detects position and orientation deviations through optical, laser, or contact measurement
    Material: Stainless steel housing with optical components
  • Control Processing Unit
    Processes sensor data and calculates required correction adjustments
    Material: Electronic circuit boards and processors
  • Adjustment Actuator
    Executes physical corrections based on processor commands
    Material: Aluminum alloy with servo motor components

Industry Taxonomies & Aliases

Commonly used trade names and technical identifiers for Alignment Assistance System.

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: 0 to 10 bar
temperature: -20°C to +85°C
vibration tolerance: Up to 5 g RMS
positioning accuracy: ±0.1 mm
Media Compatibility
✓ Clean hydraulic fluids ✓ Industrial lubricants ✓ Dry inert gases
Unsuitable: Corrosive chemical environments
Sizing Data Required
  • Required positioning accuracy
  • Maximum operating distance
  • System integration interface type

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Sensor Drift/Calibration Loss
Cause: Environmental factors (temperature fluctuations, vibration, moisture) causing gradual sensor inaccuracy, leading to misalignment readings and improper adjustments.
Mechanical Component Wear/Fatigue
Cause: Continuous operation under load causing wear in actuators, gears, or mounting hardware, resulting in reduced precision or complete failure to maintain alignment.
Maintenance Indicators
  • Persistent audible alarms or flashing warning lights indicating alignment tolerance exceedance
  • Visible physical damage or excessive vibration in the system's mechanical components during operation
Engineering Tips
  • Implement regular calibration schedules using certified reference standards to maintain sensor accuracy and compensate for environmental drift
  • Establish preventive maintenance routines including lubrication of moving parts, torque checks on fasteners, and inspection of mounting integrity to reduce mechanical wear

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
ANSI/ASME B46.1-2019 Surface Texture

Quoted from the published standard.

Manufacturing Precision
  • Positional Tolerance: +/- 0.05mm
  • Angular Alignment: +/- 0.1°
Quality Inspection
  • Laser Interferometry Calibration Test
  • Coordinate Measuring Machine (CMM) Verification

Manufacturers of Alignment Assistance System

Manufacturer profiles associated with Alignment Assistance System.

Sourcing Alignment Assistance System from China?
Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.
Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Share this page
Technical documentation
Request current drawings, revision history, and a signed specification sheet.
Manufacturing capability
Verify equipment lists, process limits, capacity, and representative production evidence.
Inspection readiness
Confirm test methods, calibrated equipment, sampling plans, and traceable reports.
Supplier transparency
Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Supply Chain Commonly Integrated Components

Modular Tooling Fixtures

Interchangeable, standardized fixtures used to precisely position and secure chassis components during assembly operations.

Explore Specs →
Automated Material Handling System

Automated system for transporting, positioning, and feeding materials within a vehicle body assembly line

Explore Specs →
Assembly Fixture

Specialized tooling device used to precisely position and secure vehicle components during assembly operations.

Explore Specs →
Isolated Power Supply

A power supply unit that provides electrical isolation between input and output circuits within a Battery Control Unit (BCU).

Explore Specs →

Frequently Asked Questions

What is the operating principle of the Alignment Assistance System?

The system uses sensors to continuously monitor the position and orientation of target elements. When deviations from set parameters are detected, control algorithms process the data and activate adjustment mechanisms to correct the misalignment, forming a closed-loop feedback system.

What are the key specifications to verify before purchasing?

Verify operating pressure, supply voltage, current consumption, positioning accuracy, repeatability, operating temperature, ingress protection, relative humidity, material, weight, dimensions, and communication interface. These are reference ranges; confirm with the manufacturer for your specific model.

Which standards are referenced for this product?

Referenced standards include ISO 230-2 for accuracy and repeatability, IEC 60068-2-1 for temperature, IEC 60529 for ingress protection, IEC 60068-2-78 for humidity, ASTM B211 for material, and TIA/EIA-485 for communication. These are verification references, not proof of certification.

How should the system be integrated into an industrial process?

The system is a component designed for integration into larger systems. It requires proper mounting, electrical connection (24 V DC), and communication setup via RS-485 with Modbus RTU. Ensure environmental conditions meet specified ranges and verify compatibility with your control system.
