Position Feedback Sensor

This page explains how Position Feedback Sensor is classified within Machinery and Equipment Manufacturing. Technical values and manufacturer relationships are research references; confirm the current specification and supplier evidence for each order.

Technical Definition & Core Assembly

A sensor that detects and reports the real-time position of a valve actuator's moving components.

View Full Specifications Explore Manufacturing Sources
Position Feedback Sensor in a manufacturing environment

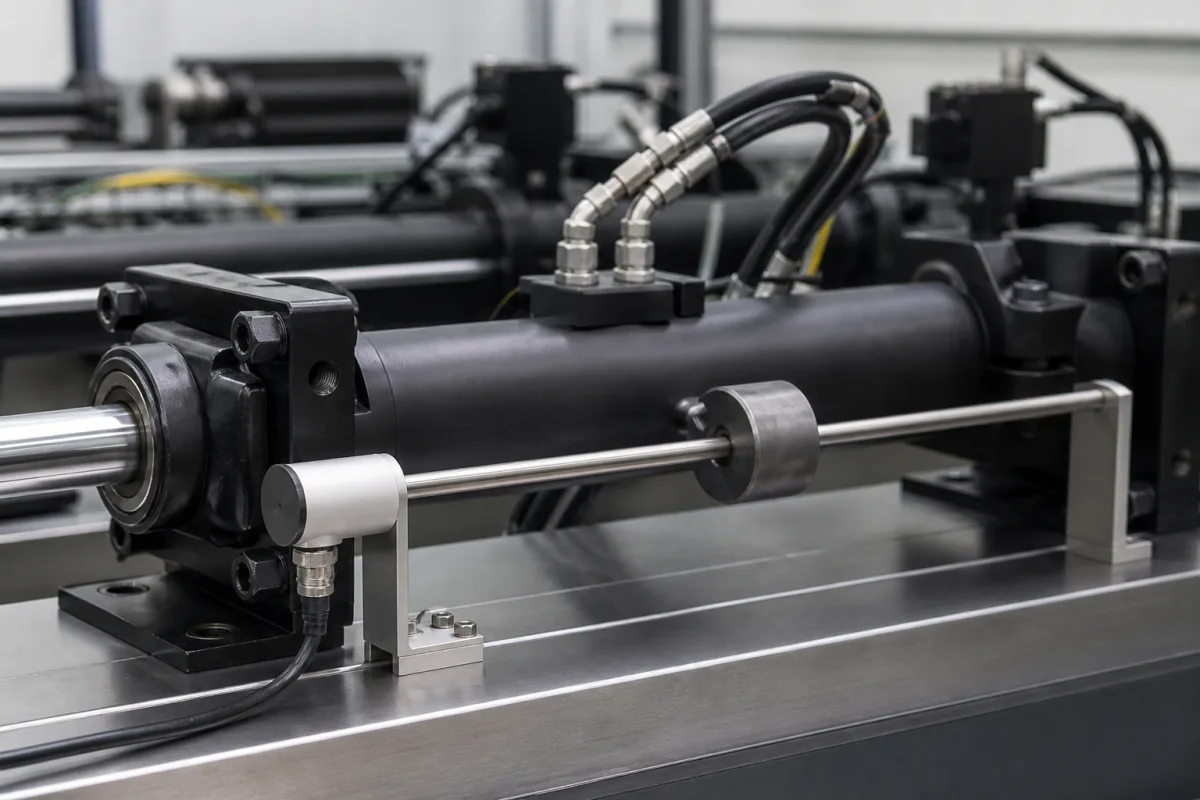

Representative product image. Confirm appearance and specifications with the manufacturer.

Product Specifications

Technical details and manufacturing context for Position Feedback Sensor

Definition
This position feedback sensor is a component used in sanitary diaphragm valve actuators within the machinery and equipment manufacturing industry. It continuously monitors the precise linear or angular displacement of the actuator's stem or diaphragm, providing real-time electrical feedback signals (e.g., 4-20mA, 0-10V, digital protocols) to the control system. This enables closed-loop control, position verification, and fault detection for precise flow regulation in sanitary fluid handling applications. The sensor typically operates on non-contact principles such as magnetostrictive, Hall effect, or inductive sensing. A position magnet is attached to the actuator's moving stem; as the stem moves, the sensor detects the changing magnetic field or the time-of-flight of a torsional wave, converting this physical displacement into a proportional analog or digital electrical signal. Materials on file include stainless steel (316L/304), PTFE/PFA (seals and liners), epoxy (encapsulation), and ceramic (substrate). The primary parameter is the measuring stroke length, specified in millimeters, indicating the total linear travel distance of the actuator stem that the sensor can accurately detect. This value must be confirmed for the specific model and application. No specific standards are listed on file. As a neutral directory, CNFX does not manufacture or sell this product; it is a reference for procurement and verification. Buyers should verify model-specific values, compatibility, and applicable standards with the legal manufacturer or supplier before use.
Working Principle
The sensor operates on non-contact principles such as magnetostrictive, Hall effect, or inductive sensing. A position magnet is attached to the actuator's moving stem. As the stem moves, the sensor detects the changing magnetic field or the time-of-flight of a torsional wave, converting this physical displacement into a proportional analog or digital electrical signal.
Common Materials
Stainless Steel (316L/304), PTFE/PFA (seals & liners), Epoxy (encapsulation), Ceramic (substrate)
Technical Parameters

What to specify in your RFQ

  • Measuring stroke length, indicating the total linear travel distance of the actuator stem that the sensor can accurately detect. in mm

These are the quantities to specify to the manufacturer when sizing or requesting a quote. The manufacturer's own documentation governs the exact figures and applicable standard.

Components / BOM
  • Sensor Body/Housing Part
    Provides structural integrity, protects internal electronics, and ensures hygienic sealing. Often features a polished surface for cleanability.
    Material: Stainless Steel (316L)
  • Sensing Element Part
    The core transducer (e.g., magnetostrictive waveguide, Hall effect IC) that detects the position of the moving magnet and initiates the measurement signal.
    Material: Specialized Alloy / Semiconductor
  • Position Magnet Part
    Attached to the actuator stem; its movement relative to the sensor body creates the variable magnetic field detected by the sensing element.
    Material: Encapsulated Rare-Earth Magnet (e.g., Samarium Cobalt)
  • Signal Conditioning Electronics
    Amplifies, linearizes, and converts the raw signal from the sensing element into the standardized industrial output signal (analog or digital).
    Material: PCB with Electronic Components
  • Electrical Connection
    Interface for power supply and signal output, typically via a sealed connector or cable gland meeting sanitary standards.
    Material: Stainless Steel, PBT/PPS (connector body)

Applied To / Applications

This component is essential for the following industrial systems and equipment:

Slice Adjustment System
View system integration details
Automated Valves
View system integration details
Adjustment Actuator
View system integration details
Positioning Actuator
View system integration details
Rotary Indexing Stage
View system integration details
Automated Fixture System
View system integration details
Pressure Actuator
View system integration details
Servo Actuator / Linear Motor
View system integration details
Guiding Actuator
View system integration details
Actuator (Pneumatic/Electric)
View system integration details

Industrial Ecosystem & Supply Chain Structure

Complementary Systems
Downstream Applications
Specialized Tooling

Application Fit & Sizing Matrix

Operational Limits
pressure: 0 to 10 bar
other spec: IP67 rating, 4-20mA output, 0-100% stroke measurement
temperature: -40°C to +85°C
Media Compatibility
✓ Hydraulic oil systems ✓ Clean water applications ✓ Compressed air systems
Unsuitable: High-concentration abrasive slurry environments
Sizing Data Required
  • Actuator stroke length (mm)
  • Required measurement resolution/accuracy (%)
  • Mounting interface/connection type

Reliability & Engineering Risk Analysis

Failure Mode & Root Cause
Signal Drift or Loss
Cause: Environmental contamination (dust, moisture, oil ingress) degrading internal electronics or sensor elements, or wear in mechanical linkages causing misalignment.
Mechanical Binding or Sticking
Cause: Accumulation of debris, lack of lubrication on moving parts, or physical damage to the sensor housing or shaft from impact or vibration.
Maintenance Indicators
  • Intermittent or erratic readings on the control system display, or the sensor output jumping to zero/maximum unexpectedly.
  • Audible grinding, scraping, or clicking noises from the sensor housing during operation, or visible physical damage, corrosion, or loose mounting.
Engineering Tips
  • Implement regular cleaning and inspection schedules to prevent contaminant buildup, and ensure proper sealing/gaskets are intact per manufacturer specs.
  • Follow vibration analysis and alignment procedures during installation, and use protective covers or enclosures in harsh environments to shield from physical and chemical damage.

Indicative industry ranges for design and RFQ preparation. Confirm the exact figures and applicable standard with the manufacturer before specifying.

Compliance & Manufacturing Standards

Applicable Standards
ISO 13849-1:2015 Safety of machinery - Safety-related parts of control systems ANSI/ISA-95.00.01-2010 Enterprise-Control System Integration DIN EN 60947-5-2:2008 Low-voltage switchgear and controlgear - Proximity switches

Quoted from the published standard.

Manufacturing Precision
  • Linear accuracy: +/-0.01% of full scale
  • Repeatability: +/-0.005mm
Quality Inspection
  • Environmental sealing test (IP rating verification)
  • Electrical continuity and insulation resistance test

Manufacturers of Position Feedback Sensor

Manufacturer profiles associated with Position Feedback Sensor.

Sourcing Position Feedback Sensor from China?
Tell us your specification and target quantity — we will match it against manufacturer records and come back with the factories that fit.
Request manufacturers We manufacture this

Manufacturer listings support early research and capability understanding. They are not certification, ranking, or transaction guarantees.

Share this page

Compiled and source-reviewed by the CNFX editorial team. Each manufacturer above links to the page on that company's own website where the product is listed, with the date we checked it. How we source and review · Page last updated 6 September 2026

Technical documentation
Request current drawings, revision history, and a signed specification sheet.
Manufacturing capability
Verify equipment lists, process limits, capacity, and representative production evidence.
Inspection readiness
Confirm test methods, calibrated equipment, sampling plans, and traceable reports.
Supplier transparency
Check the legal entity, factory address, ownership, certifications, and direct contacts.

CNFX does not score or rank suppliers. Buyers must verify all claims and documents with the legal manufacturer before ordering.

Supply Chain Compatible Machinery & Devices

Hydraulic Press

Industrial machine using hydraulic pressure to compress, form, or assemble materials

Explore Specs →
Heavy-Duty CNC Plasma Cutting Machine

The Heavy-Duty CNC Plasma Cutting Machine is a standalone industrial device designed for cutting conductive metals such as steel, stainless steel, aluminum, and copper alloys.

Explore Specs →
Automated Powder Coating System

Integrated industrial system for applying dry powder coatings to metal substrates.

Explore Specs →
Centrifugal Pump Impeller

The centrifugal pump impeller is a critical rotating component that converts mechanical energy from the motor into kinetic energy in fluid systems.

Explore Specs →

Frequently Asked Questions

What is the measuring stroke length?

The measuring stroke length is the total linear travel distance of the actuator stem that the sensor can accurately detect, specified in millimeters. The exact value depends on the specific model and must be confirmed with the manufacturer.

What output signals are available?

The sensor can provide analog signals such as 4-20mA or 0-10V, as well as digital protocols. The specific output type depends on the model and must be verified with the supplier.

Is the sensor suitable for sanitary applications?

The sensor is designed for use in sanitary diaphragm valve actuators, with materials like stainless steel and PTFE/PFA. However, suitability for a specific application must be confirmed with the manufacturer.

What standards does the sensor comply with?

No specific standards are listed on file. Buyers should verify applicable standards and certifications with the legal manufacturer or supplier.
